Inspection [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT GENERATOR PULLEY WITH CLUTCH
- Hold the center of the generator pulley with clutch, and confirm that the outer ring turns counterclockwise and does not turn clockwise.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Free |
 |
Lock |
OK
The outer ring turns counterclockwise and does not turn clockwise.
If the result is not as specified, replace the generator pulley with clutch.
- INSPECT GENERATOR BRUSH HOLDER ASSEMBLY
- Using a vernier caliper, measure the length of the exposed brushes.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Standard Exposed Brush Length
9.5 to 11.5 mm (0.374 to 0.453 in.)
Minimum Exposed Brush Length
4.5 mm (0.177 in.)
If the brush length is less than the minimum, replace the generator brush holder assembly.
- INSPECT GENERATOR ROTOR ASSEMBLY

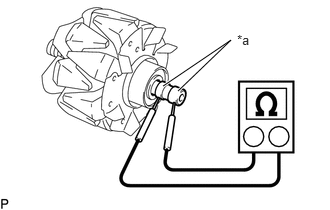

- Check the generator rotor assembly for an open circuit.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| Slip ring - Slip ring |
Approx. 20°C (68°F) |
1.5 to 1.9 Ω |
If the result is not as specified, replace the generator rotor assembly.
- Check the generator rotor assembly for a short to ground.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| Slip ring - Rotor |
Always |
10 MΩ or higher |
If the result is not as specified, replace the generator rotor assembly.
- Check that the generator rotor bearing is not rough or worn and that it rotates smoothly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
If the generator rotor bearing is rough or worn, or does not rotate smoothly, replace the generator rotor assembly.
- Check the slip ring.
- Check that the slip rings are not rough or scored.
If the slip rings are rough or scored, replace the generator rotor assembly.
- Using a vernier caliper, measure the slip ring diameter.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Standard Diameter
14.2 to 14.8 mm (0.559 to 0.583 in.)
Minimum Diameter
14.0 mm (0.551 in.)
If the diameter is less than the minimum, replace the generator rotor assembly.
- INSPECT GENERATOR DRIVE END FRAME BEARING
- Check that the generator drive end frame bearing is not rough or worn and that it rotates smoothly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
If the generator drive end frame bearing is rough or worn, or does not rotate smoothly, replace the generator drive end frame bearing.
