Components [09/2014 - 10/2015]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

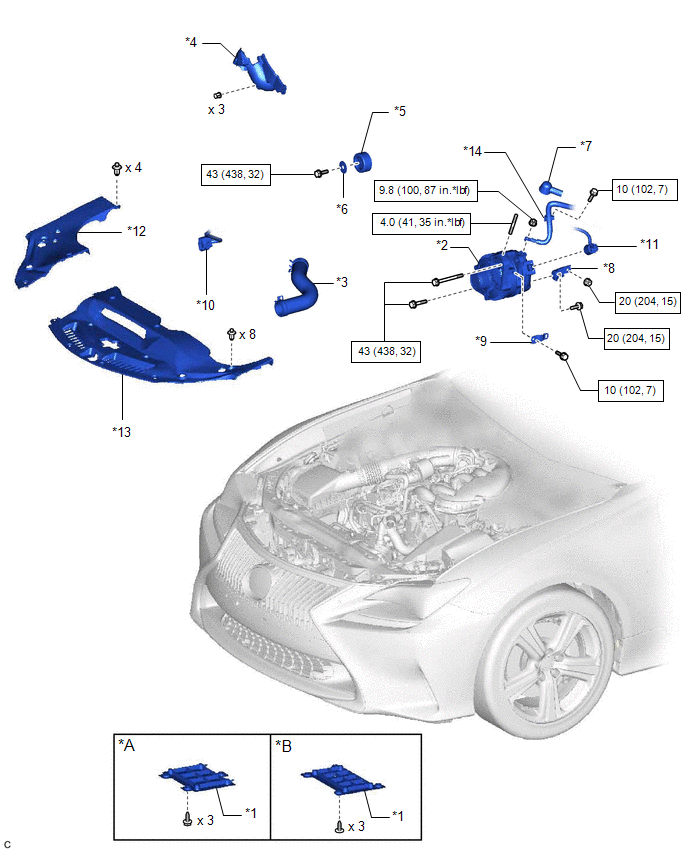

| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
CENTER NO. 4 ENGINE UNDER COVER |
*2 |
GENERATOR ASSEMBLY |
| *3 |
NO. 1 RADIATOR HOSE |
*4 |
NO. 2 ENGINE COVER SUB-ASSEMBLY |
| *5 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
*6 |
NO. 2 IDLER PULLEY COVER PLATE |
| *7 |
TERMINAL CAP |
*8 |
GENERATOR BRACKET |
| *9 |
WIRE HARNESS BRACKET |
*10 |
COOLING FAN ECU CONNECTOR |
| *11 |
GENERATOR ASSEMBLY CONNECTOR |
*12 |
ENGINE ROOM SIDE COVER |
| *13 |
COOL AIR INTAKE DUCT SEAL |
*14 |
ENGINE WIRE BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

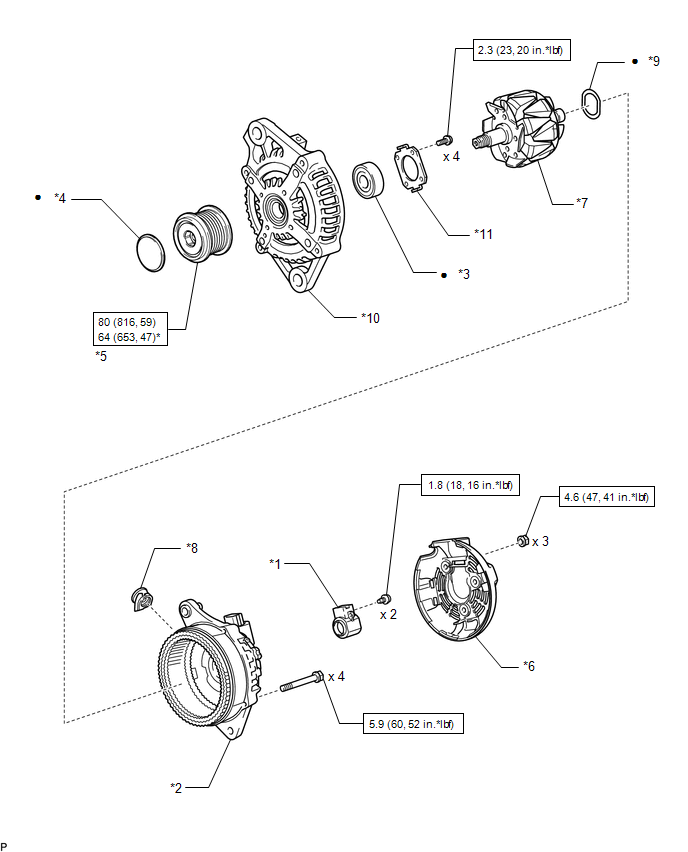

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
WASHER |
*10 |
GENERATOR DRIVE END FRAME |
| *11 |
RETAINER PLATE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
