Components [09/2014 - 10/2015]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

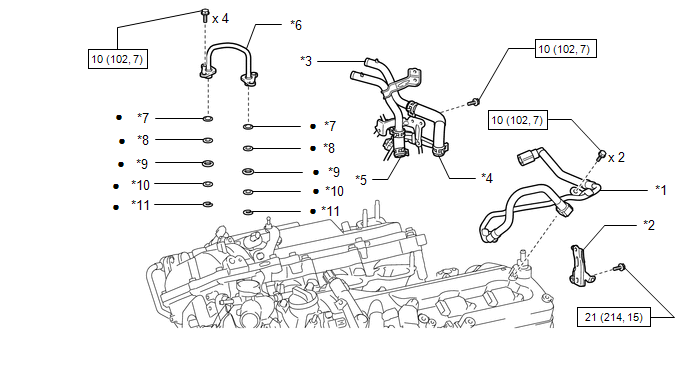

Fig 1: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (1 Of 13)
GTY507871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 FUEL TUBE SUB-ASSEMBLY *2 NO. 2 SURGE TANK STAY
*3 NO. 3 WATER BY-PASS PIPE *4 NO. 8 WATER BY-PASS HOSE
*5 NO. 9 WATER BY-PASS HOSE *6 NO. 3 FUEL PIPE SUB-ASSEMBLY
*7 NO. 1 BACK-UP RING *8 NO. 2 BACK-UP RING
*9 O-RING *10 NO. 3 BACK-UP RING
*11 E-RING - -
N.m (kgf/cm, ft.lbf): Specified torque - -

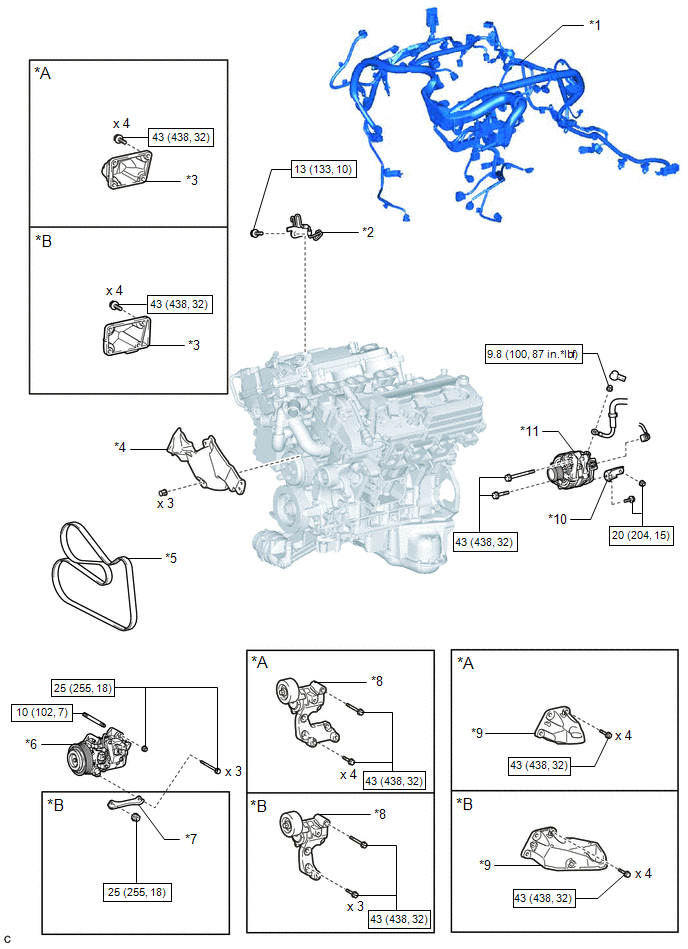

Fig 2: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (2 Of 13)
GTY520342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD *B for AWD
*1 ENGINE WIRE *2 WIRE HARNESS CLAMP BRACKET
*3 FRONT NO. 1 ENGINE MOUNTING BRACKET RH *4 NO. 2 ENGINE COVER
*5 V-RIBBED BELT *6 COMPRESSOR AND MAGNETIC CLUTCH
*7 OIL FILTER BRACKET *8 V-RIBBED BELT TENSIONER ASSEMBLY
*9 FRONT NO. 1 ENGINE MOUNTING BRACKET LH *10 BRACKET
*11 GENERATOR ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -

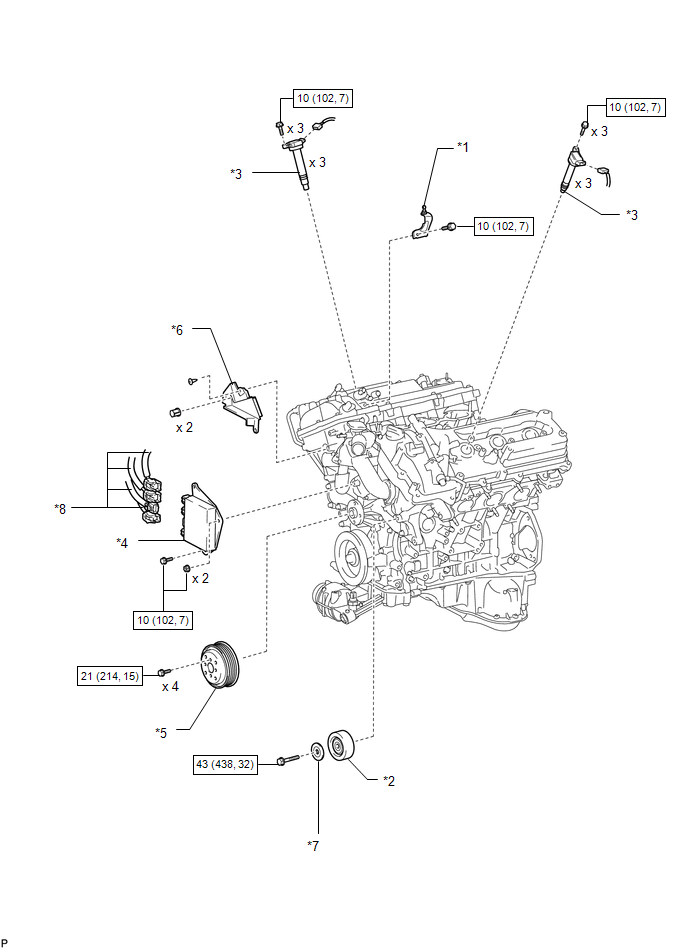

Fig 3: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (3 Of 13)
GTY521428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-BANK COVER BRACKET SUB-ASSEMBLY *2 NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3 IGNITION COIL ASSEMBLY *4 INJECTOR DRIVER
*5 WATER PUMP PULLEY *6 NO. 1 ENGINE COVER
*7 WASHER PLATE *8 WIRE HARNESS
N.m (kgf/cm, ft.lbf): Specified torque - -

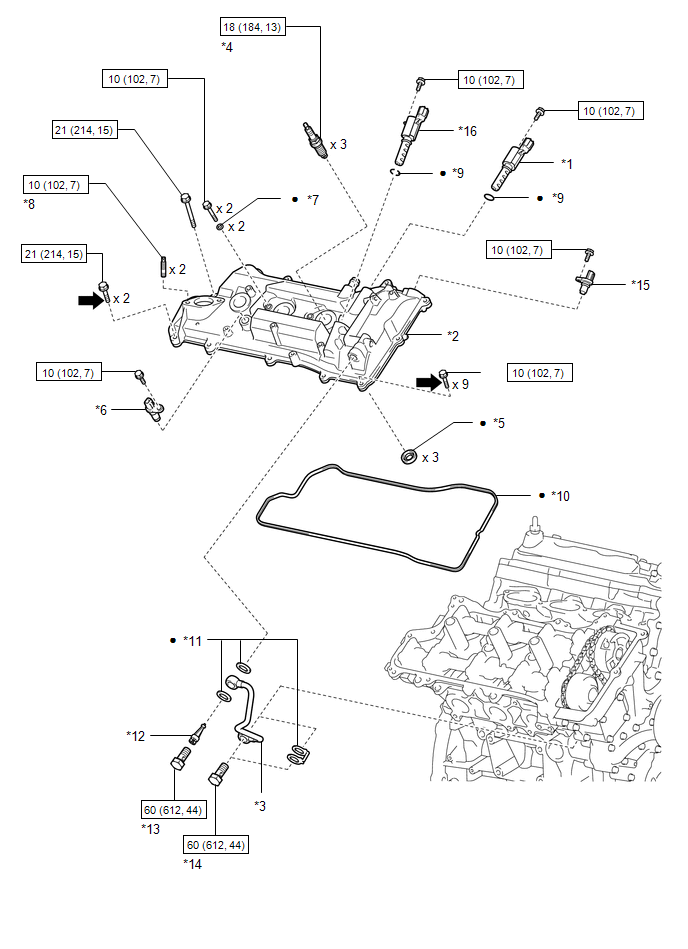

Fig 4: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (4 Of 13)
GTY504408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1) *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 NO. 2 OIL PIPE *4 SPARK PLUG
*5 SPARK PLUG TUBE GASKET *6 VVT SENSOR (for Exhaust Side of Bank 1)
*7 CYLINDER HEAD COVER SEAL WASHER *8 STUD BOLT
*9 O-RING *10 CYLINDER HEAD COVER GASKET
*11 GASKET *12 OIL CONTROL VALVE FILTER RH
*13 OIL PIPE UNION *14 OIL CHECK VALVE BOLT
*15 VVT SENSOR (for Intake Side of Bank 1) *16 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

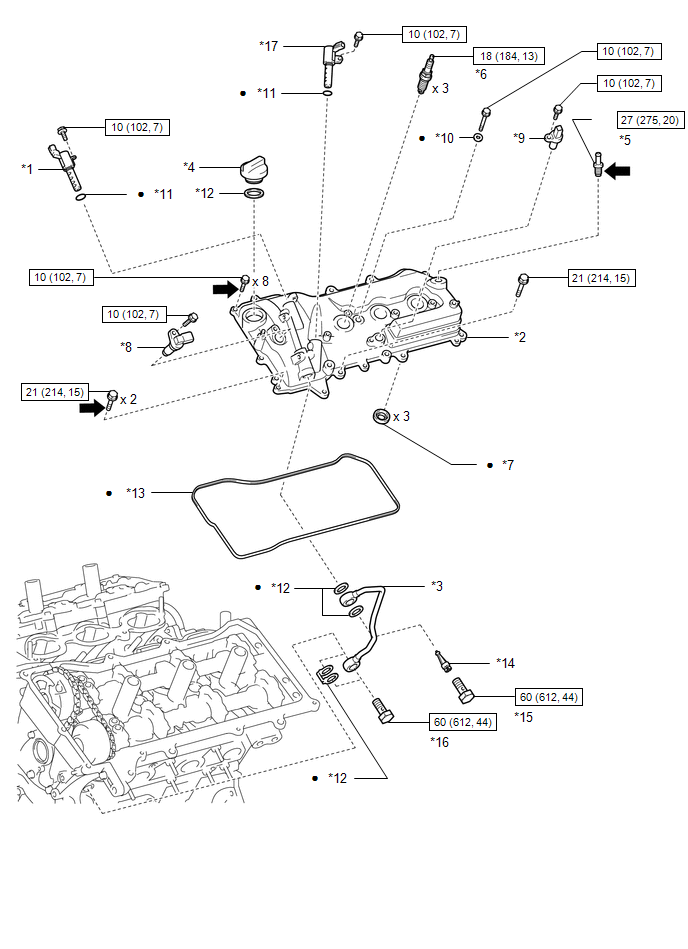

Fig 5: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (5 Of 13)
GTY513996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2) *2 CYLINDER HEAD COVER SUB-ASSEMBLY LH
*3 NO. 1 OIL PIPE *4 OIL FILLER CAP SUB-ASSEMBLY
*5 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *6 SPARK PLUG
*7 SPARK PLUG TUBE GASKET *8 VVT SENSOR (for Intake Side of Bank 2)
*9 VVT SENSOR (for Exhaust Side of Bank 2) *10 CYLINDER HEAD COVER SEAL WASHER
*11 O-RING *12 GASKET
*13 CYLINDER HEAD COVER GASKET LH *14 OIL CONTROL VALVE FILTER LH
*15 OIL PIPE UNION *16 OIL CHECK VALVE BOLT
*17 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1) - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

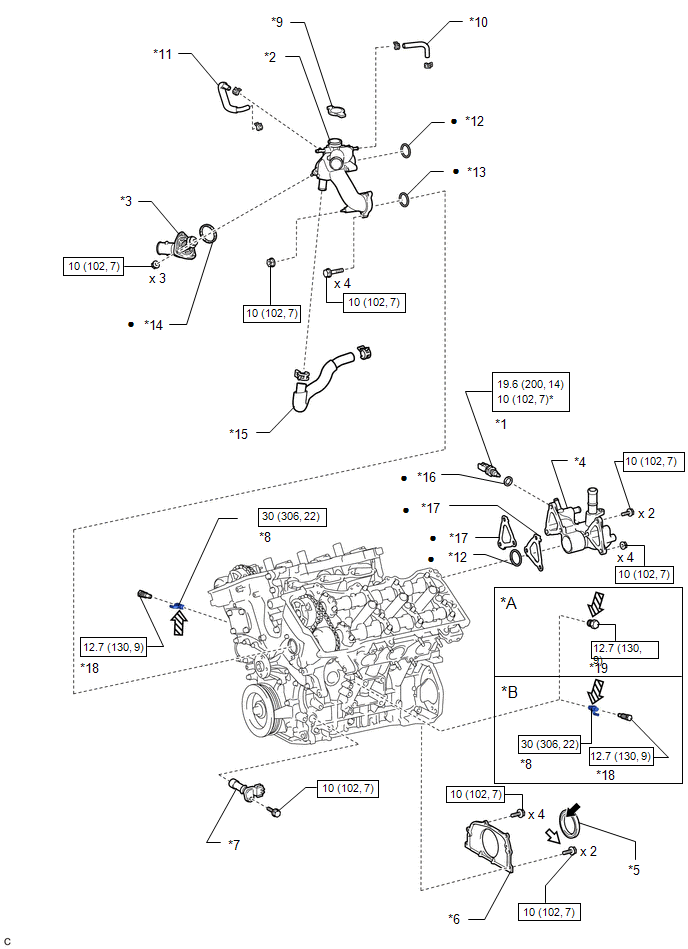

Fig 6: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (6 Of 13)
GTY613973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Taper Screw Plug *B w/o Taper Screw Plug
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 WATER INLET
*3 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY *4 REAR WATER BY-PASS JOINT
*5 REAR ENGINE OIL SEAL *6 REAR ENGINE OIL SEAL RETAINER
*7 CRANKSHAFT POSITION SENSOR *8 CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY
*9 RADIATOR CAP SUB-ASSEMBLY *10 NO. 4 WATER BY-PASS HOSE
*11 NO. 6 WATER BY-PASS HOSE *12 WATER OUTLET PIPE O-RING
*13 NO. 1 WATER INLET HOUSING GASKET *14 WATER INLET HOUSING GASKET
*15 NO. 3 WATER BY-PASS HOSE *16 GASKET
*17 WATER OUTLET GASKET *18 WATER DRAIN COCK PLUG
*19 TAPER SCREW PLUG - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with a ball joint lock nut wrench
• Non-reusable part MP Grease
Adhesive 1324 Adhesive 1344
* Precoated part - -
Fig 7: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (7 Of 13)
GTY518686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 ENGINE OIL LEVEL SENSOR *2 ENGINE OIL PRESSURE SWITCH ASSEMBLY
*3 NO. 2 OIL PAN SUB-ASSEMBLY *4 OIL FILTER ELEMENT
*5 OIL PAN DRAIN PLUG *6 OIL PAN SUB-ASSEMBLY
*7 OIL STRAINER SUB-ASSEMBLY *8 OIL STRAINER GASKET
*9 NO. 1 OIL PAN BAFFLE PLATE *10 OIL FILTER CAP ASSEMBLY
*11 O-RING *12 GASKET
*13 STUD BOLT - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

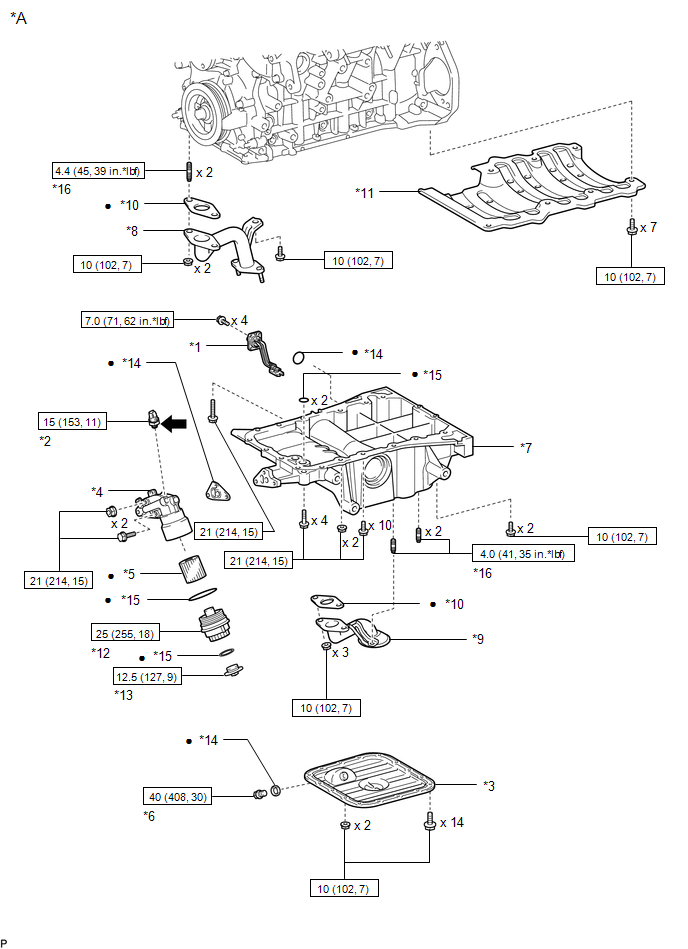

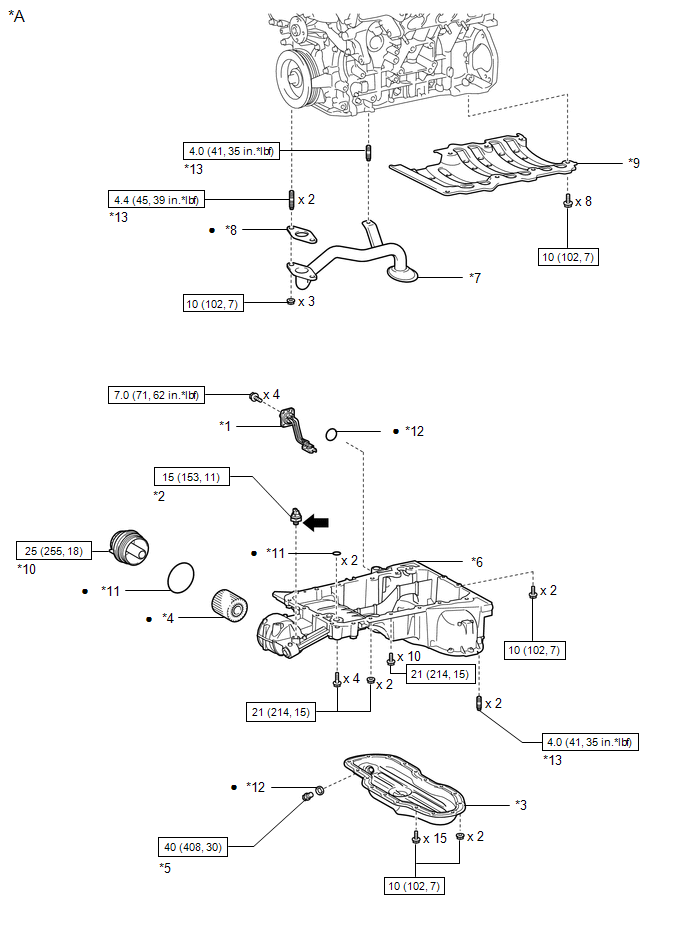

Fig 8: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (8 Of 13)
GTY513271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 ENGINE OIL LEVEL SENSOR *2 ENGINE OIL PRESSURE SWITCH ASSEMBLY
*3 NO. 2 OIL PAN SUB-ASSEMBLY *4 OIL FILTER BRACKET SUB-ASSEMBLY
*5 OIL FILTER ELEMENT *6 OIL PAN DRAIN PLUG
*7 OIL PAN SUB-ASSEMBLY *8 OIL STRAINER SUB-ASSEMBLY
*9 OIL STRAINER WITH PIPE SUB-ASSEMBLY *10 OIL STRAINER GASKET
*11 NO. 1 OIL PAN BAFFLE PLATE *12 OIL FILTER CAP SUB-ASSEMBLY
*13 OIL FILTER DRAIN PLUG *14 GASKET
*15 O-RING *16 STUD BOLT
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -

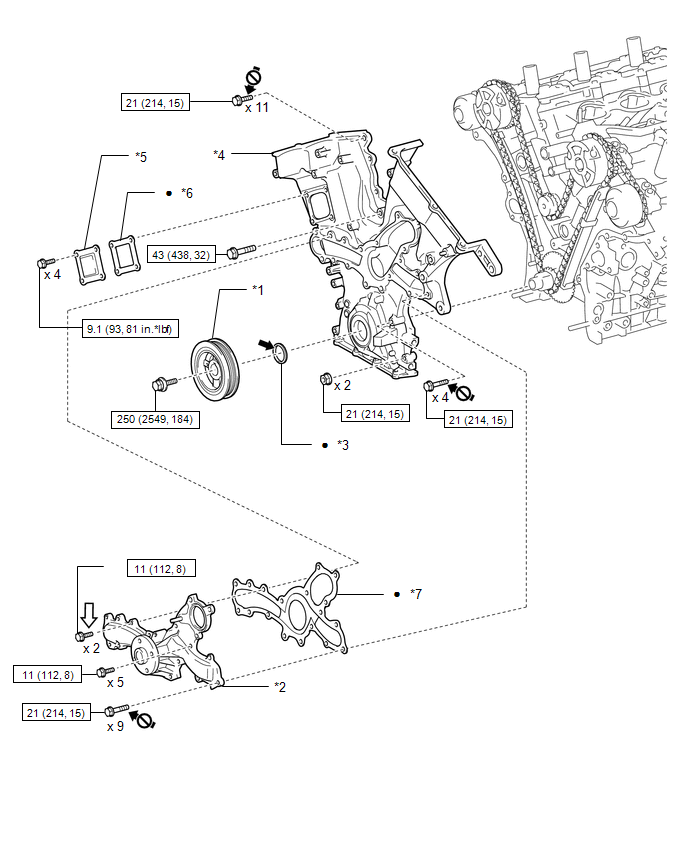

Fig 9: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (9 Of 13)
GTY661952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY *2 ENGINE WATER PUMP ASSEMBLY
*3 TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL *4 TIMING CHAIN COVER SUB-ASSEMBLY
*5 TIMING CHAIN COVER PLATE *6 TIMING CHAIN COVER GASKET
*7 WATER PUMP GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
MP Grease Adhesive 1324
Do not apply lubricants to the threaded parts * Precoated part

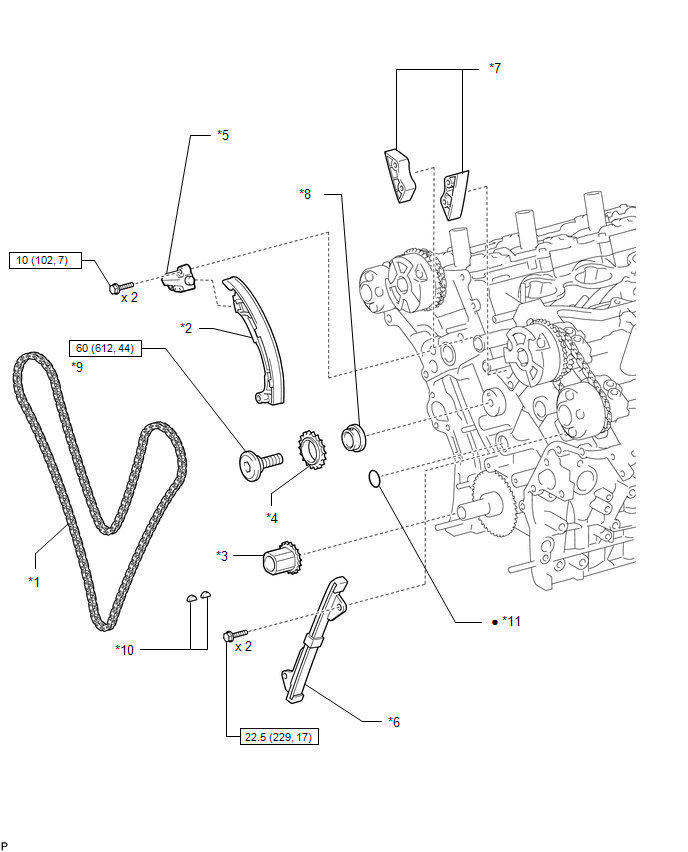

Fig 10: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (10 Of 13)
GTY509675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT TIMING GEAR OR SPROCKET *4 IDLE SPROCKET ASSEMBLY
*5 NO. 1 CHAIN TENSIONER ASSEMBLY *6 NO. 1 CHAIN VIBRATION DAMPER
*7 NO. 2 CHAIN VIBRATION DAMPER *8 NO. 1 IDLE GEAR SHAFT
*9 NO. 2 IDLE GEAR SHAFT *10 CRANKSHAFT TIMING GEAR KEY
*11 OIL PUMP GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

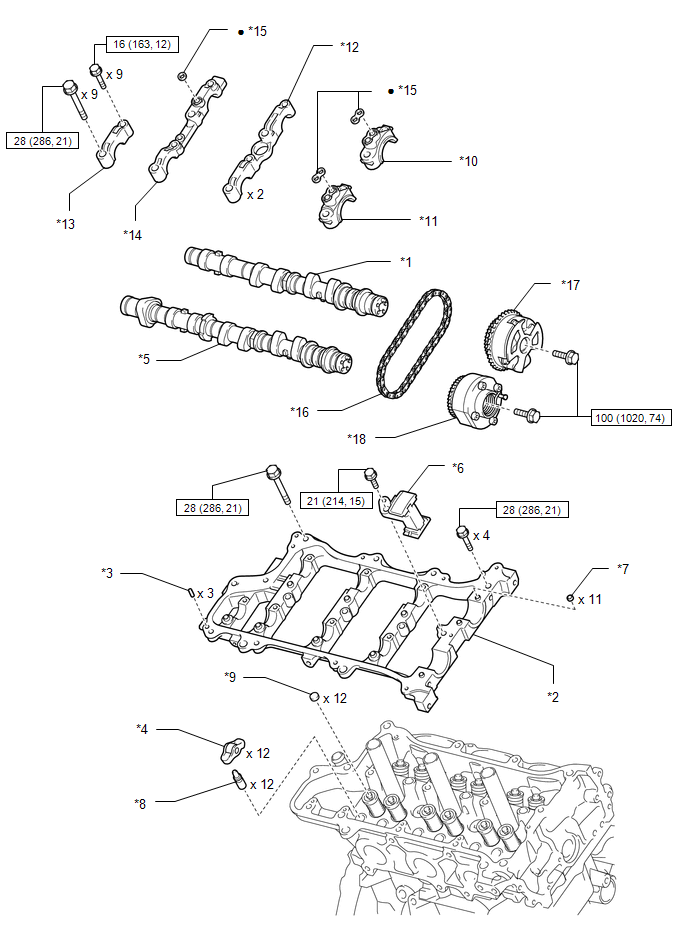

Fig 11: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (11 Of 13)
GTY507681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 CAMSHAFT HOUSING SUB-ASSEMBLY RH
*3 NO. 1 STRAIGHT PIN *4 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5 NO. 2 CAMSHAFT *6 NO. 2 CHAIN TENSIONER ASSEMBLY
*7 RING PIN *8 VALVE LASH ADJUSTER ASSEMBLY
*9 VALVE STEM CAP *10 NO. 1 CAMSHAFT BEARING CAP
*11 NO. 2 CAMSHAFT BEARING CAP *12 NO. 5 CAMSHAFT BEARING CAP
*13 NO. 6 CAMSHAFT BEARING CAP *14 NO. 7 CAMSHAFT BEARING CAP
*15 GASKET *16 NO. 2 CHAIN SUB-ASSEMBLY
*17 CAMSHAFT TIMING GEAR ASSEMBLY *18 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

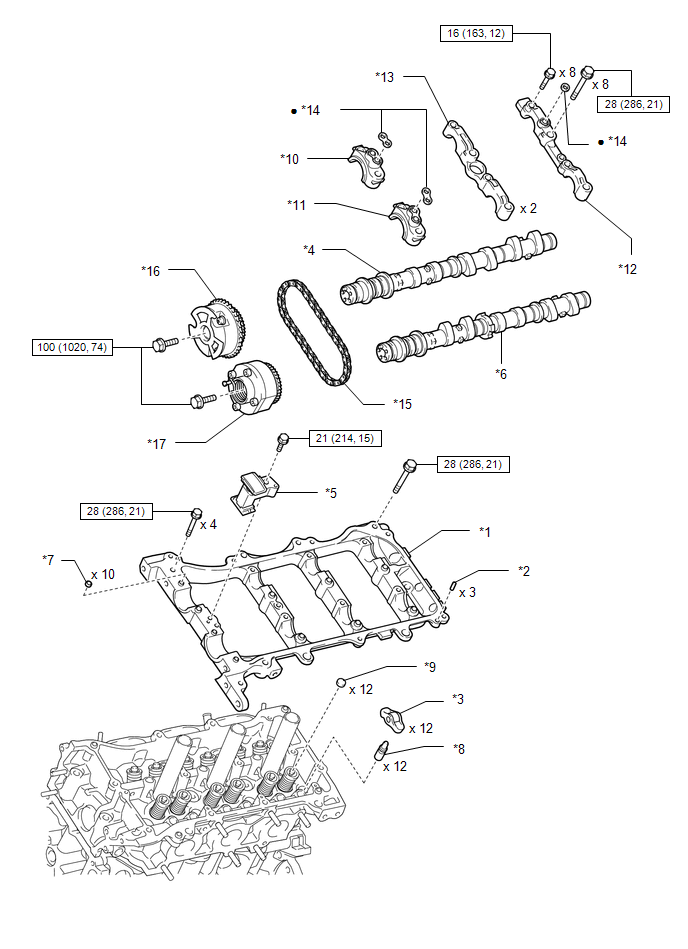

Fig 12: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (12 Of 13)
GTY501725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT HOUSING SUB-ASSEMBLY LH *2 NO. 1 STRAIGHT PIN
*3 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY *4 NO. 3 CAMSHAFT SUB-ASSEMBLY
*5 NO. 3 CHAIN TENSIONER ASSEMBLY *6 NO. 4 CAMSHAFT SUB-ASSEMBLY
*7 RING PIN *8 VALVE LASH ADJUSTER ASSEMBLY
*9 VALVE STEM CAP *10 NO. 3 CAMSHAFT BEARING CAP
*11 NO. 4 CAMSHAFT BEARING CAP *12 NO. 7 CAMSHAFT BEARING CAP
*13 NO. 8 CAMSHAFT BEARING CAP *14 GASKET
*15 NO. 2 CHAIN SUB-ASSEMBLY *16 CAMSHAFT TIMING GEAR ASSEMBLY
*17 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

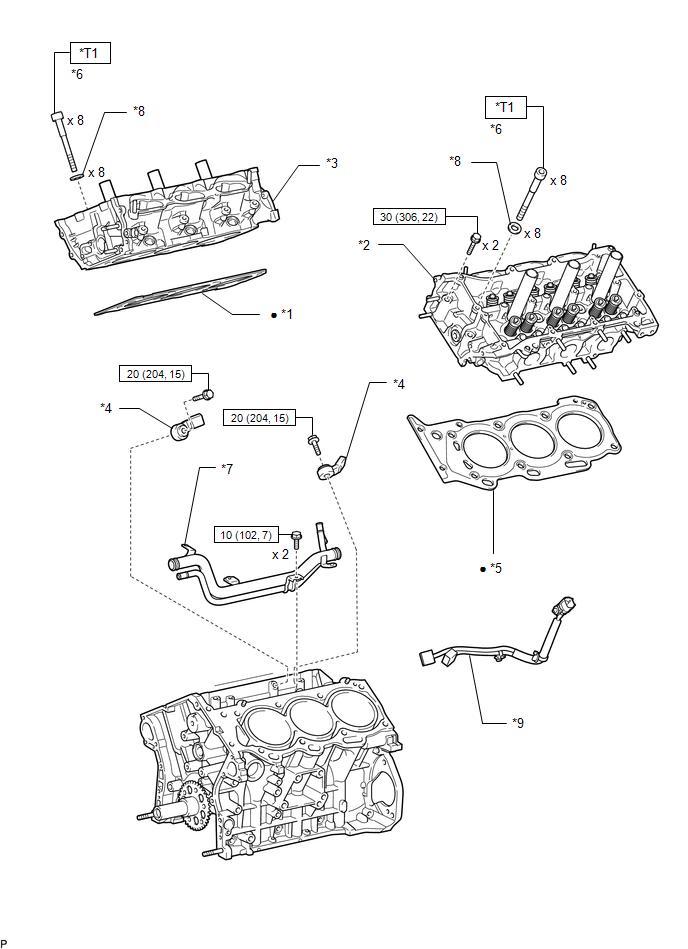

Fig 13: Engine Unit Replacement Components With Torque Specifications [09/2014 - 10/2015] (13 Of 13)
GTY456488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD GASKET *2 CYLINDER HEAD SUB-ASSEMBLY LH
*3 CYLINDER HEAD SUB-ASSEMBLY RH *4 KNOCK CONTROL SENSOR
*5 NO. 2 CYLINDER HEAD GASKET *6 CYLINDER HEAD SET BOLT
*7 WATER OUTLET PIPE SUB-ASSEMBLY *8 PLATE WASHER
*9 NO. 5 ENGINE WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90°		 - -
