Replacement [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE INTAKE VALVE GUIDE BUSH
    1. Heat the cylinder head to 80 to 100°C (176 to 212°F).
    2. Place the cylinder head on wooden blocks.
      WARNING:

      Be sure to wear protective gloves.

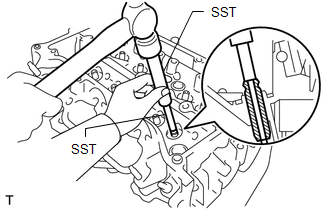

    3. Using SST and a hammer, tap out the intake valve guide bushes.
      GTY465675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09201-10000
        1. 09201-01050
      • SST: 09950-70010
        1. 09951-07100
    4. Using a caliper gauge, measure the intake valve guide bush bore diameter of the cylinder head.

      Standard Intake Valve Guide Bush Bore Diameter

      10.285 to 10.306 mm (0.4049 to 0.4057 in.)

      Select a New Intake Valve Guide Bush (STD or O/S 0.05)

      Bush Size Specified Condition
      STD 10.285 to 10.306 mm
      (0.4049 to 0.4057 in.)
      O/S 0.05 10.335 to 10.356 mm
      (0.4069 to 0.4077 in.)

      HINT:

      • If the intake valve guide bush bore diameter is more than 10.306 mm (0.4057 in.), machine the bush bore to a dimension of 10.335 to 10.356 mm (0.4069 to 0.4077 in.) to install an O/S 0.05 intake valve guide bush.
      • If the intake valve guide bush bore diameter is more than 10.356 mm (0.4077 in.), replace the cylinder head.
    5. Heat the cylinder head to 80 to 100°C (176 to 212°F).
    6. Place the cylinder head on wooden blocks.
      WARNING:

      Be sure to wear protective gloves.

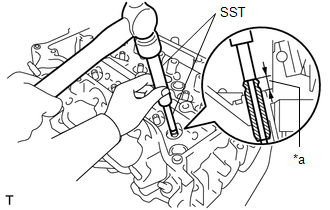

    7. Using SST, tap in new intake valve guide bushes to the specified protrusion height.
      GTY468683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion Height
      • SST: 09201-10000
        1. 09201-01050
      • SST: 09950-70010
        1. 09951-07100

      Standard Protrusion Height

      9.10 to 9.90 mm (0.358 to 0.390 in.)

    8. Using a sharp 5.5 mm reamer, ream the intake valve guide bushes to obtain the specified oil clearance.
      GTY127717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Oil Clearance

      0.030 to 0.060 mm (0.00118 to 0.00236 in.)

  2. REPLACE EXHAUST VALVE GUIDE BUSH
    1. Heat the cylinder head to 80 to 100°C (176 to 212°F).
    2. Place the cylinder head on wooden blocks.
      WARNING:

      Be sure to wear protective gloves.

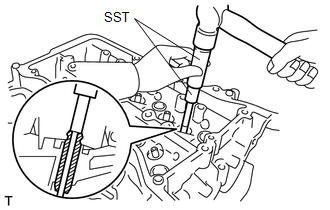

    3. Using SST and a hammer, tap out the exhaust valve guide bushes.
      GTY467421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09201-10000
        1. 09201-01050
      • SST: 09950-70010
        1. 09951-07100
    4. Using a caliper gauge, measure the exhaust valve guide bush bore diameter of the cylinder head.

      Standard Exhaust Valve Guide Bush Bore Diameter

      10.285 to 10.306 mm (0.4049 to 0.4057 in.)

      Select a New Exhaust Valve Guide Bush (STD or O/S 0.05)

      Bush Size Specified Condition
      STD 10.285 to 10.306 mm
      (0.4049 to 0.4057 in.)
      O/S 0.05 10.335 to 10.356 mm
      (0.4069 to 0.4077 in.)

      HINT:

      • If the exhaust valve guide bush bore diameter is more than 10.306 mm (0.4057 in.), machine the bush bore to a dimension of 10.335 to 10.356 mm (0.4069 to 0.4077 in.) to install an O/S 0.05 exhaust valve guide bush.
      • If the exhaust valve guide bush bore diameter is more than 10.356 mm (0.4077 in.), replace the cylinder head.
    5. Heat the cylinder head to 80 to 100°C (176 to 212°F).
    6. Place the cylinder head on wooden blocks.
      WARNING:

      Be sure to wear protective gloves.

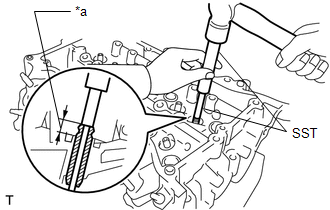

    7. Using SST, tap in new exhaust valve guide bushes to the specified protrusion height.
      GTY507905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion Height
      • SST: 09201-10000
        1. 09201-01050
      • SST: 09950-70010
        1. 09951-07100

      Standard Protrusion Height

      9.10 to 9.90 mm (0.358 to 0.390 in.)

    8. Using a sharp 5.5 mm reamer, ream the exhaust valve guide bushes to obtain the specified oil clearance.
      GTY145207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Oil Clearance

      0.025 to 0.065 mm (0.00098 to 0.00256 in.)

  3. REPLACE RING PIN
    NOTE:

    It is not necessary to remove the ring pins unless they are being replaced.

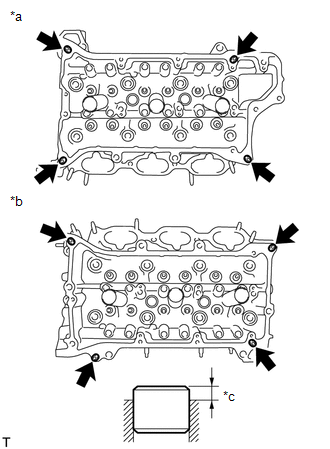

    1. Using a plastic hammer, tap in new ring pins to the specified protrusion height.
      GTY457305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for Bank 1
      *b for Bank 2
      *c Protrusion Height

      Standard Protrusion Height

      2.5 to 3.8 mm (0.0984 to 0.150 in.)

  4. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pins unless they are being replaced.

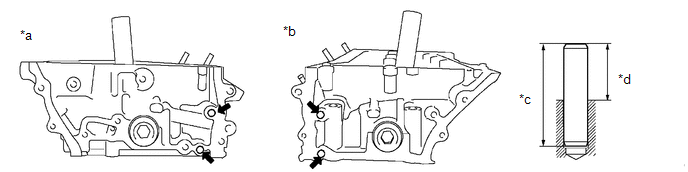

    1. Using a plastic hammer, tap in new straight pins as shown in the illustration.
      GTY468606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for Bank 1 *b for Bank 2
      *c 34 mm (1.34 in.) *d Protrusion Height

      Standard Protrusion Height

      18.5 mm (0.728 in.)
