Reassembly [09/2014 - 11/2017]: Procedure

1. Apply adhesive to the shaded area of a new spark plug tube.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Standard Application Width
   *b	9.0 to 15.0 mm (0.354 to 0.591 in.)

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   Standard Application Width

   1.0 to 3.0 mm (0.0394 to 0.118 in.)

   NOTE:

   • Install the spark plug tube within 3 minutes of applying adhesive.

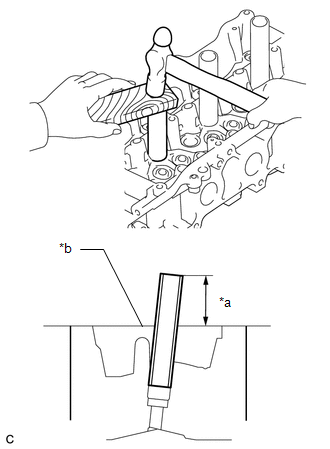

2. Using a wooden block and hammer, tap in the spark plug tube to the specified protrusion height.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Standard Protrusion Height
   *b	Cylinder Head Casting Surface

   Standard Protrusion Height

   72.9 mm (2.87 in.)

   NOTE:

   • Be careful not to deform the spark plug tube.
   • Be careful not to expose the spark plug tube to engine oil for at least 1 hour after installing it.
   • To avoid tapping in the spark plug tube too far, measure the protrusion height while tapping it.

1. Apply adhesive to the No. 1 straight screw plug.

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   NOTE:

   Install the No. 1 straight screw plug within 3 minutes after applying adhesive.

2. Using a 10 mm hexagon wrench, install 4 new water hole gaskets and the 4 No. 1 straight screw plugs.

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   NOTE:

   Do not add engine oil at least 1 hours after installation.

1. Using a 14 mm hexagon wrench, install 2 new screw plug gaskets and the 2 No. 2 straight screw plugs.

   Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

HINT:

It is not necessary to remove the union unless it is being replaced.

1. Apply adhesive to the union of the cylinder head.

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adhesive 1324

   NOTE:

   Install the union within 3 minutes after applying adhesive.

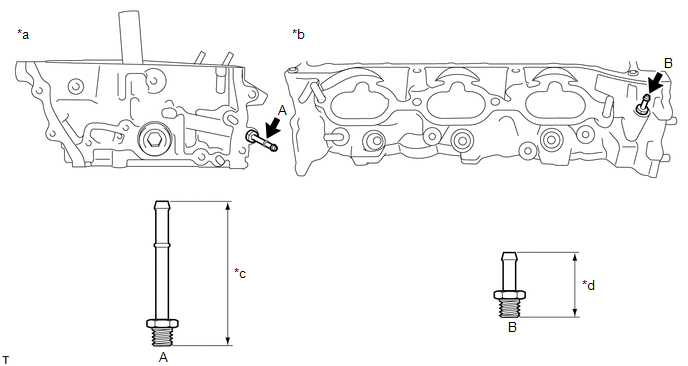

2. Using a 12 mm union nut wrench, install the union to the cylinder head as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	for Bank 1	*b	for Bank 2
   *c	67 mm (2.64 in.)	*d	30 mm (1.18 in.)

   Specified tightening torque

   Torque: 14.7 N.m (150 kgf/cm, 11 ft.lbf)

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [09/2014 - 11/2017]

   • When using a 12 mm union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

     13.1 N.m (134 kgf/cm, 10 ft.lbf)

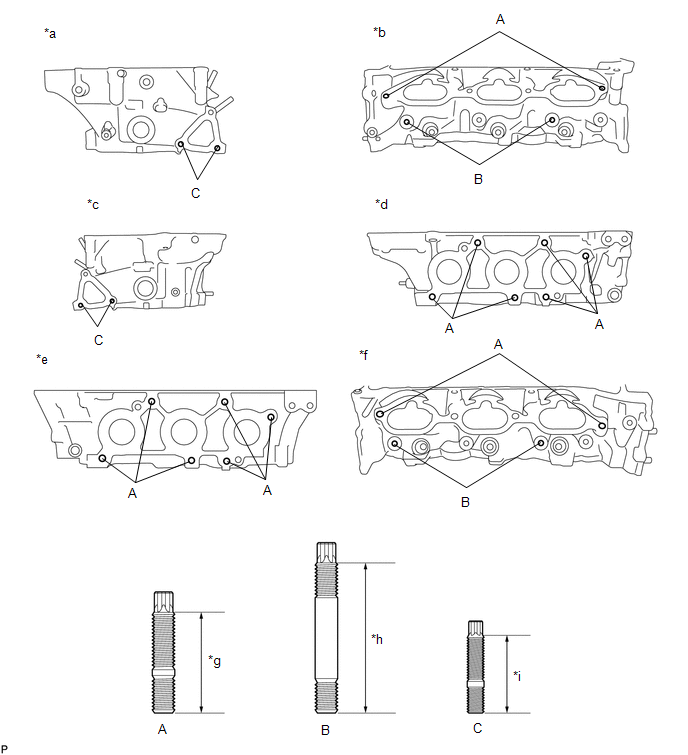

1. Using E6 and E8 "TORX" socket wrenches, install the stud bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	for Bank 2 Rear Side	*b	for Bank 1 Intake Side
   *c	for Bank 1 Rear Side	*d	for Bank 1 Exhaust Side
   *e	for Bank 2 Exhaust Side	*f	for Bank 2 Intake Side
   *g	35 mm (1.38 in.)	*h	52 mm (2.05 in.)
   *i	27 mm (1.06 in.)	-	-

   Bolt (A), (B)

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   Bolt (C)

   Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

1. Install the valve spring seats to the cylinder head.

1. Apply a light coat of engine oil to new intake valve stem oil seals.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Gray
   *b	Black
   *c	Intake Side
   *d	Exhaust Side

   NOTE:

   Pay attention when installing the intake valve stem oil seal and exhaust valve stem oil seal.

   For example, installing the intake valve stem oil seal to the exhaust side or installing the exhaust valve stem oil seal to the intake side can cause installation problems later.

   HINT:

   The intake valve stem oil seals are gray and the exhaust valve stem oil seals are black.

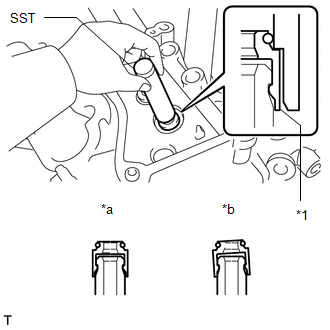

2. Using SST, push in the intake valve stem oil seals.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Valve Stem Oil Seal
   *a	Correct
   *b	Incorrect

   • SST: 09201-41020
   NOTE:

   • Failure to use SST will cause the intake valve stem oil seal to be damaged or improperly seated.
   • Do not push in the intake valve stem oil seal at an angle.

HINT:

Use the same procedure as for the intake side.

1. Sufficiently apply engine oil to the tip area of the exhaust valve shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	40 mm (1.57 in.) or more

2. Install the exhaust valve, inner compression spring and valve spring retainer to the cylinder head.
   NOTE:

   Install the same parts in the same combination to their original locations.

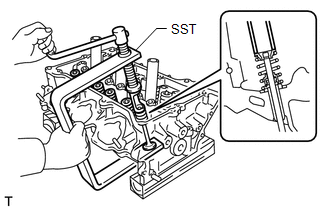

3. Using SST, compress the inner compression spring and install the valve spring retainer lock.
   • SST: 09202-70020
     1. 09202-00010
     2. 09202-01010
     3. 09202-01020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.
   NOTE:

   Be careful not to damage the retainer.

1. Sufficiently apply engine oil to the tip area of the intake valve shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	40 mm (1.57 in.) or more

2. Install the intake valve, inner compression spring and valve spring retainer to the cylinder head.
   NOTE:

   Install the same parts in the same combination to their original locations.

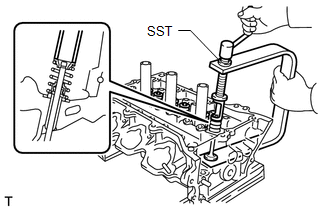

3. Using SST, compress the inner compression spring and install the valve spring retainer lock.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09202-70020
     1. 09202-00010
     2. 09202-01010
     3. 09202-01020
4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.
   NOTE:

   Be careful not to damage the retainer.
