Replacement [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

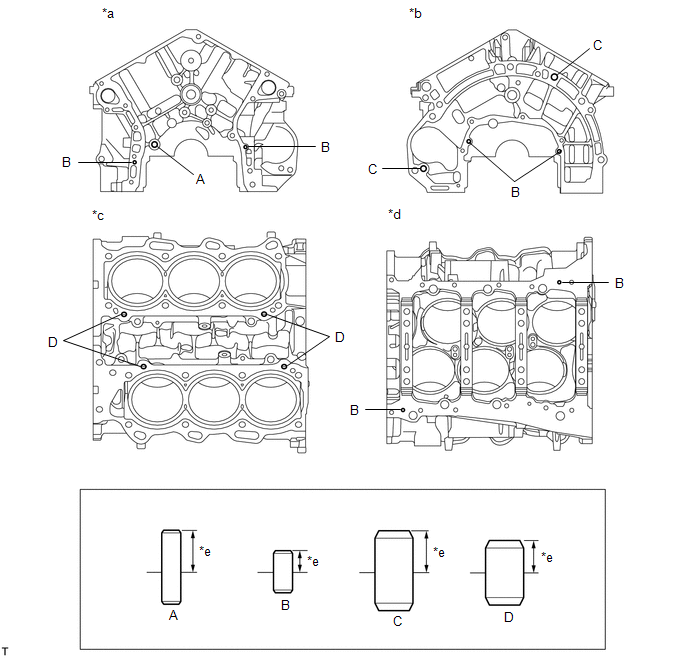

REPLACE STRAIGHT PIN

NOTE:

It is not necessary to remove the straight pins unless they are being replaced.

Using a plastic hammer, tap in new straight pins to the cylinder block sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front Side	*b	Rear Side
*c	Upper Side	*d	Lower Side
*e	Protrusion Height	-	-

Standard Protrusion

Item	Specified Condition
Straight Pin (A)	22.5 to 23.5 mm (0.886 to 0.925 in.)
Straight Pin (B)	5.5 to 6.5 mm (0.217 to 0.256 in.)
Straight Pin (C)	10.5 to 11.5 mm (0.413 to 0.453 in.)
Straight Pin (D)	8.5 to 9.5 mm (0.335 to 0.374 in.)

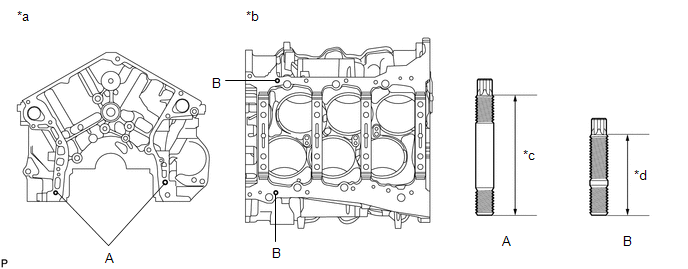

REPLACE STUD BOLT

NOTE:

If a stud bolt is deformed or its threads are damaged, replace it.

Using an E8 "TORX" socket wrench, install the stud bolts.

*a	Front Side	*b	Lower Side
*c	52 mm (2.05 in.)	*d	35 mm (1.38 in.)

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
