Parts Location [09/2014 - 11/2017]: Illustration
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

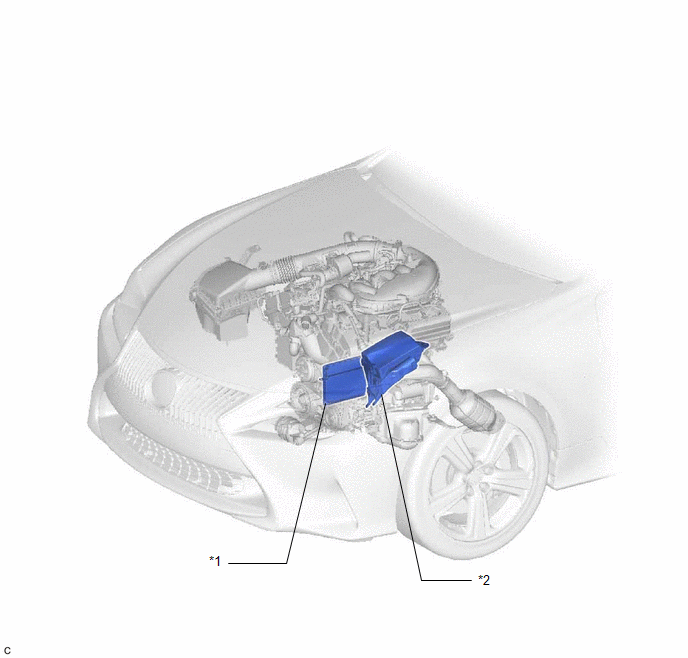

| *1 |
ECM |
*2 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- IG2 FUSE |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

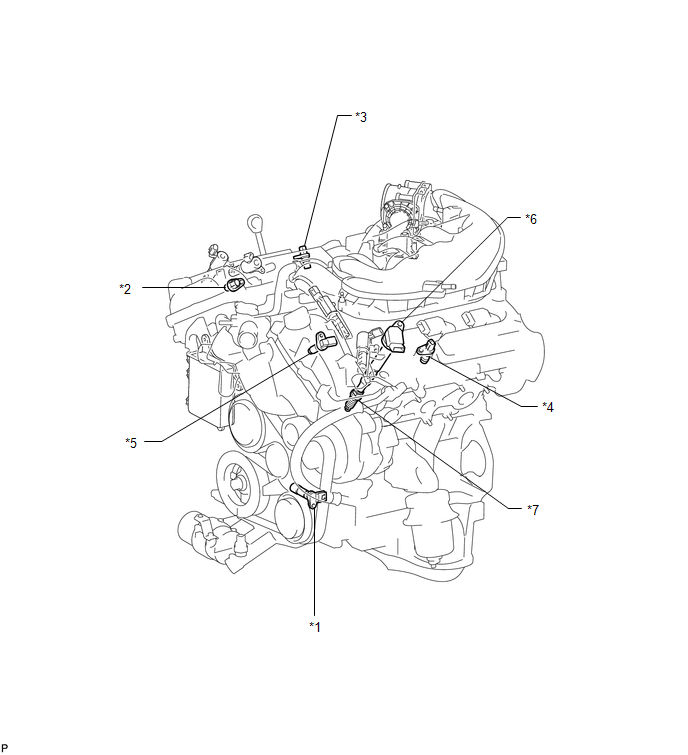

| *1 |
CRANKSHAFT POSITION SENSOR |
*2 |
VVT SENSOR (for Intake Side of Bank 1) |
| *3 |
VVT SENSOR (for Exhaust Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
VVT SENSOR (for Intake Side of Bank 2) |
*6 |
IGNITION COIL ASSEMBLY |
| *7 |
SPARK PLUG |
- |
- |
