WARNING: This page is about a different car, the 2017 Lexus RC 350, 2016 Lexus RC 350, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

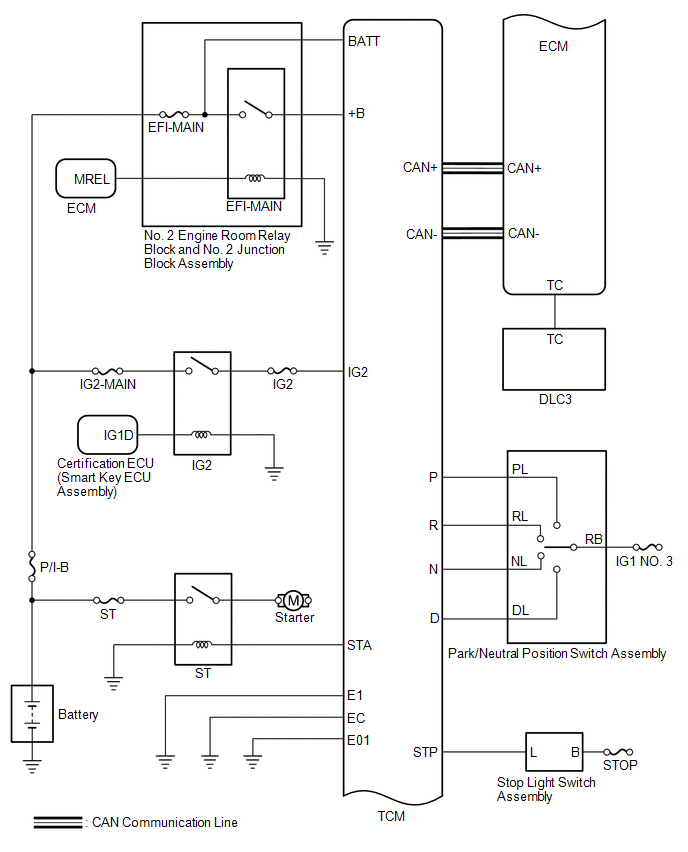

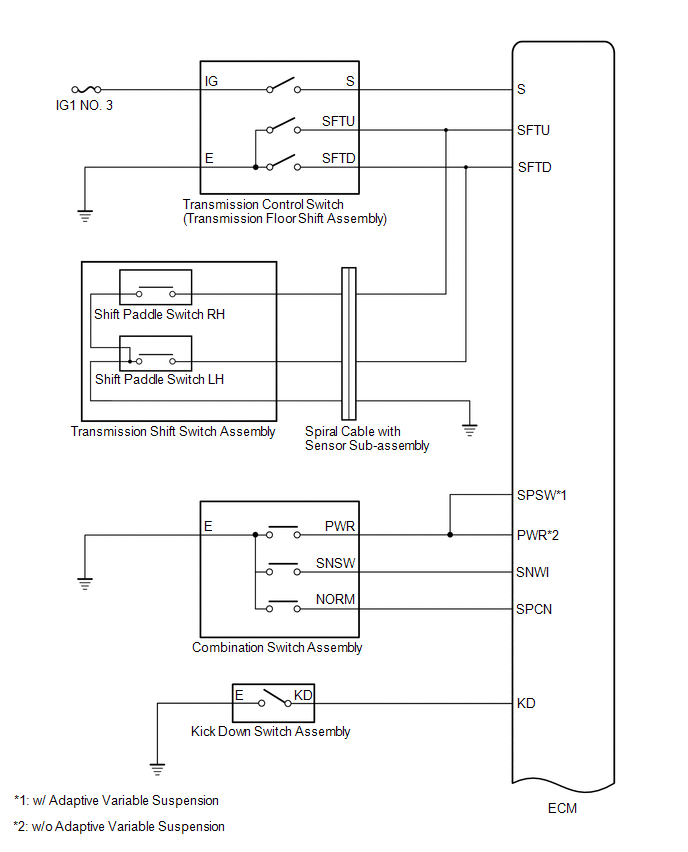

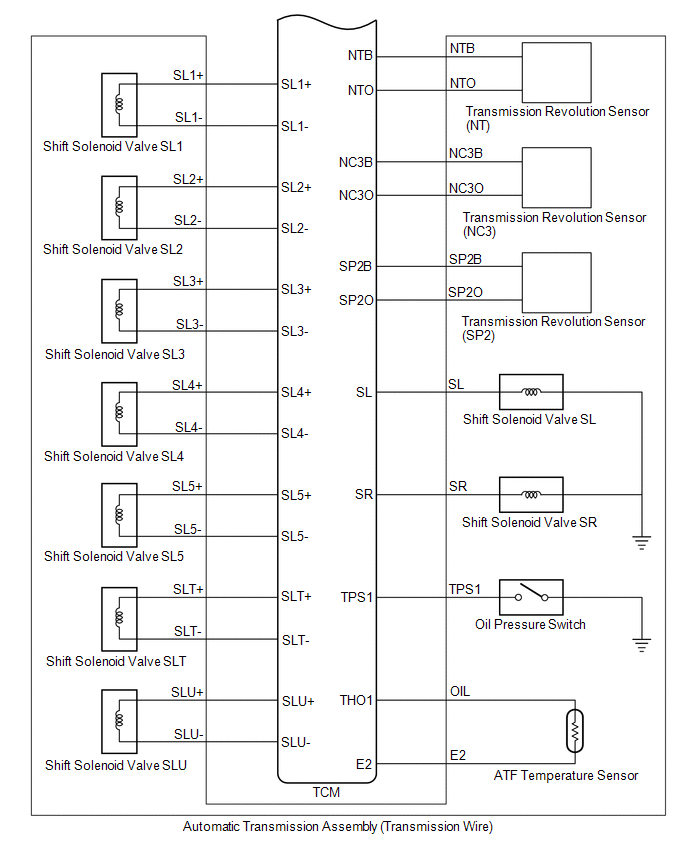

The configuration of the electronic control system for the AA81E automatic transmission is as shown in the following chart.
