Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)
Refer to REMOVAL [09/2014 - 11/2017]
REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)
Refer to REMOVAL [09/2014 - 11/2017]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

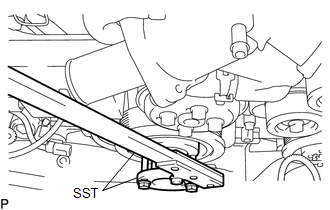

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

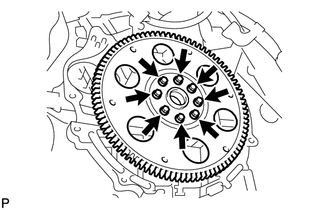

Remove the 8 bolts, the rear drive plate spacer, the drive plate and ring gear sub-assembly and the front drive plate spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE OIL SEAL

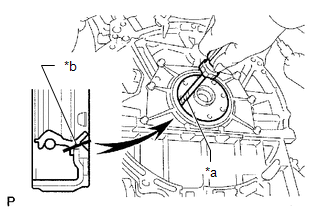

Using a knife, cut through the lip of the rear engine oil seal.

*a	Protective Tape
*b	Cut Position

Using a screwdriver, pry out the rear engine oil seal.
NOTE:
After the removal, check the crankshaft for damage.

If it is damaged, smooth the surface with 400-grit sandpaper.

HINT:

Tape the screwdriver tip before use.
