Installation [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR ENGINE OIL SEAL
    1. Clean the crankshaft and rear engine oil seal retainer.
    2. Apply MP grease to the lip of a new rear engine oil seal.
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not allow MP grease to contact the dust seal section.
    3. Using SST and a hammer, tap in the rear engine oil seal until its surface is flush with the rear engine oil seal retainer edge.
      GTY465701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Depth
      • SST: 09223-1503009950-70010
        1. 09951-07150

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap in the rear engine oil seal at an angle.
      • Do not tap in the rear engine oil seal more than necessary.
      • Do not deform the rear engine oil seal.
      • Wipe off excess MP grease from the crankshaft.
  2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

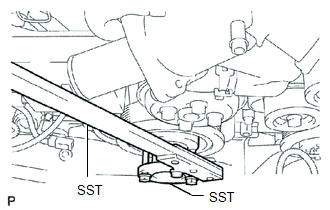

    1. Using SST, hold the crankshaft pulley.
      GTY517703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09330-0002109213-70011
        1. 09213-70020
    2. Clean the 8 bolts and 8 bolt holes.

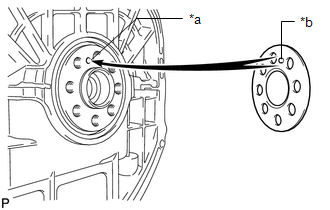

    3. Install the front drive plate spacer.
      GTY503157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin Hole
      *b Pin

      HINT:

      Align the pin of the front drive plate spacer with the pin hole of the crankshaft.

    4. Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.
      GTY459359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Plate and Ring Gear Sub-assembly
      *2 Rear Drive Plate Spacer
      Transmission Side

      HINT:

      As the drive plate and ring gear sub-assembly and the rear drive plate spacer are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.

    5. Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.
      GTY510341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Install the bolt within 3 minutes of applying adhesive.

    6. Install and uniformly tighten the 8 bolts in several steps, in the sequence shown in the illustration.
      Fig 1: Drive Plate And Ring Gear Sub-Assembly Bolts Tightening Sequence
      GTY461071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 83 N.m (846 kgf/cm, 61 ft.lbf)

      NOTE:

      Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.

  3. INSPECT DRIVE PLATE (for 2WD)

    Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - 11/2017]

  4. INSPECT DRIVE PLATE (for AWD)

    Refer to PROCEDURE - Step 2

  5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)

    Refer to INSTALLATION [09/2014 - 11/2017]

  6. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)

    Refer to INSTALLATION [09/2014 - 11/2017]

  7. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 8 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 8 [10/2015 - 11/2017]
