Components [10/2015 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

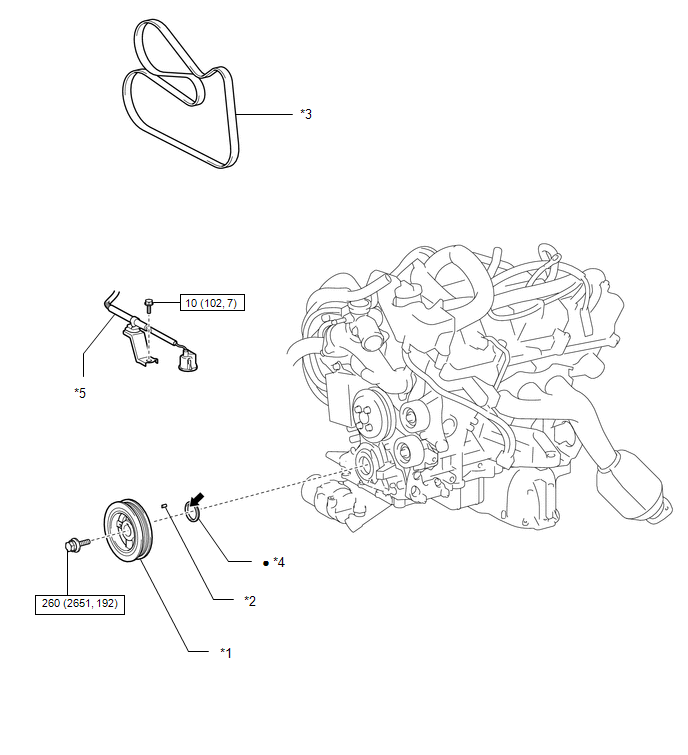

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [10/2015 - 11/2017]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT PULLEY | *2 | CRANKSHAFT TIMING GEAR KEY |
| *3 | V-RIBBED BELT | *4 | TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
| *5 | WIRE HARNESS | - | - |
| N.m (kgf/cm, ft*lbf): Specified torque | • | Non-reusable part | |
| MP Grease | - | - |
