Components [10/2015 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

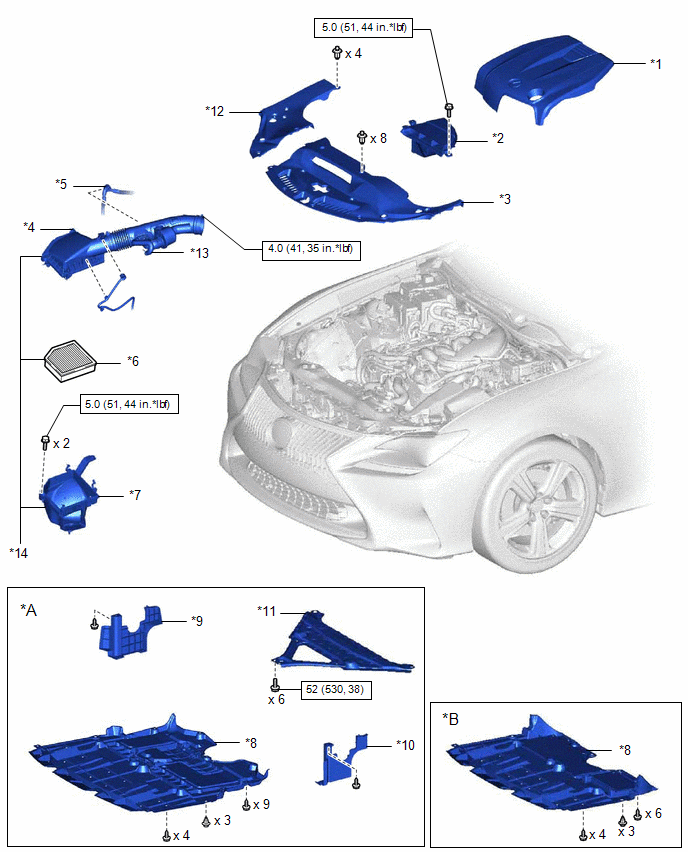

Fig 1: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (1 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | V-BANK COVER SUB-ASSEMBLY | *2 | INLET NO. 1 AIR CLEANER |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | AIR CLEANER CAP WITH AIR CLEANER HOSE |
| *5 | NO. 2 FUEL VAPOR FEED HOSE | *6 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *7 | AIR CLEANER CASE SUB-ASSEMBLY | *8 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *9 | REAR ENGINE UNDER COVER RH | *10 | REAR ENGINE UNDER COVER LH |
| *11 | FRONT SUSPENSION MEMBER BRACE | *12 | ENGINE ROOM SIDE COVER |
| *13 | NO. 2 VENTILATION HOSE | *14 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

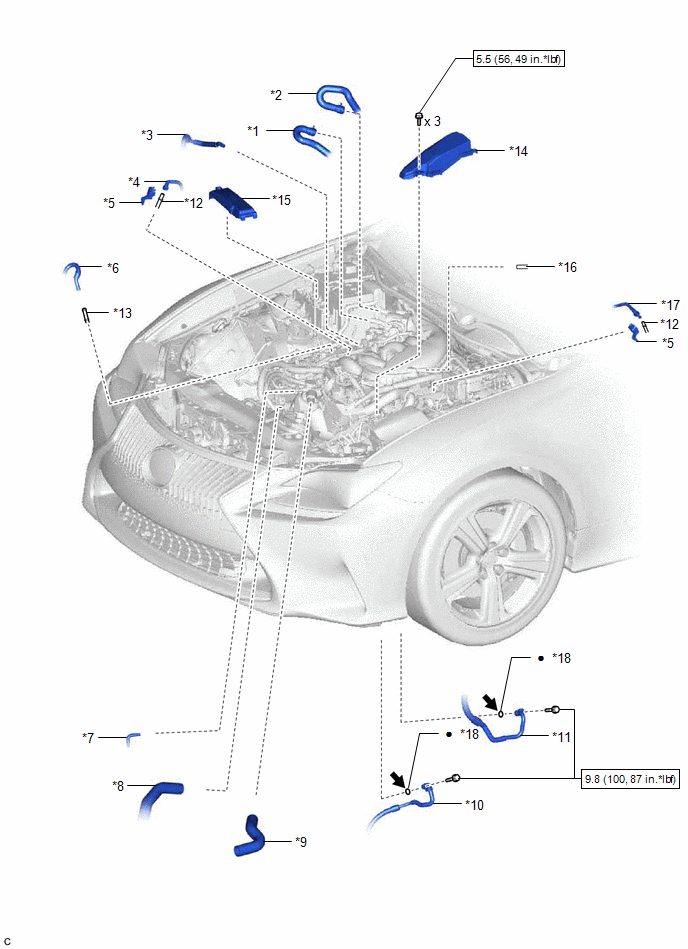

Fig 2: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (2 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET HEATER WATER HOSE A | *2 | OUTLET HEATER WATER HOSE A |
| *3 | NO. 2 FUEL VAPOR FEED HOSE | *4 | FUEL TUBE SUB-ASSEMBLY |
| *5 | FUEL PIPE CLAMP | *6 | NO. 3 FUEL HOSE |
| *7 | RADIATOR RESERVE TANK HOSE | *8 | NO. 2 RADIATOR HOSE |
| *9 | NO. 1 RADIATOR HOSE | *10 | SUCTION HOSE |
| *11 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE | *12 | FUEL PIPE |
| *13 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *14 | ENGINE ROOM ECU COVER |
| *15 | NO. 1 ENGINE ROOM RELAY BLOCK COVER | *16 | UNION TO CHECK VALVE HOSE |
| *17 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *18 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Compressor Oil ND-OIL8 | - | - |

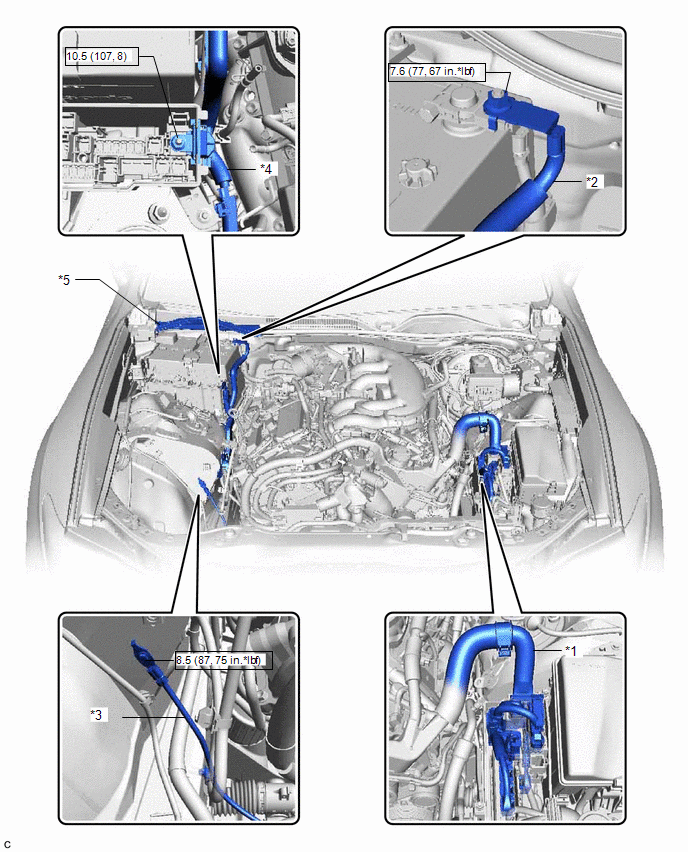

Fig 3: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (3 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WIRE | *2 | NO. 2 ENGINE WIRE |
| *3 | NO. 3 ENGINE WIRE | *4 | NO. 4 ENGINE WIRE |
| *5 | NO. 1 CENTER COWL TOP VENTILATOR LOUVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

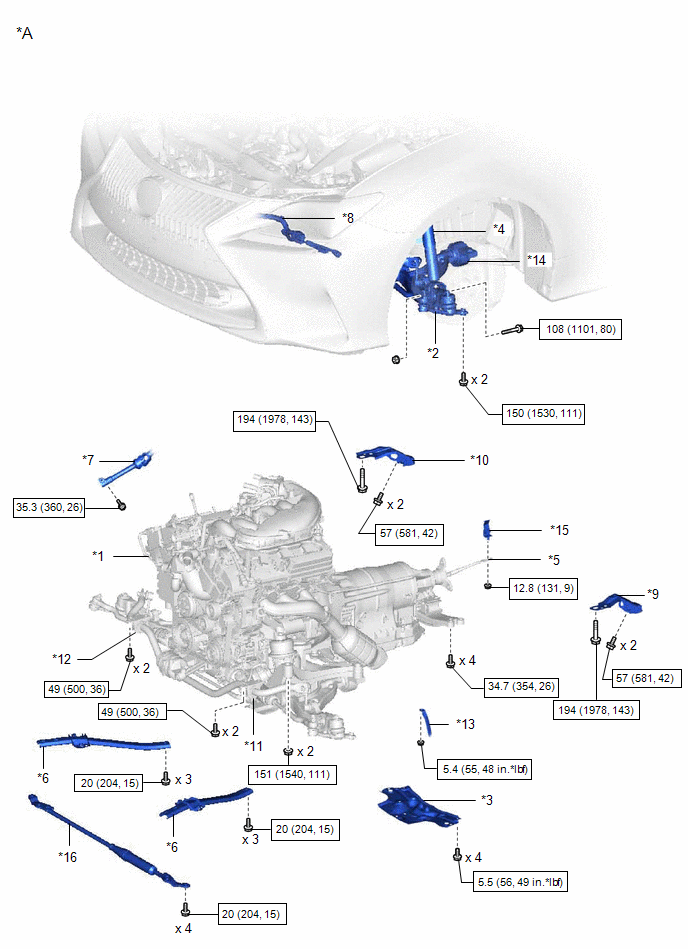

Fig 4: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (4 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | ENGINE ASSEMBLY WITH TRANSMISSION | *2 | FRONT LOWER BALL JOINT ASSEMBLY LH |
| *3 | FRONT LOWER SUSPENSION MEMBER PROTECTOR | *4 | FRONT SHOCK ABSORBER ASSEMBLY LH |
| *5 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY | *6 | FRONT UPPER NO. 2 SUSPENSION MEMBER |
| *7 | STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY | *8 | WIRE HARNESS |
| *9 | STRUT BAR BRACKET REINFORCEMENT LH | *10 | STRUT BAR BRACKET REINFORCEMENT RH |
| *11 | FRONT NO. 2 STABILIZER BRACKET LH | *12 | FRONT NO. 2 STABILIZER BRACKET RH |
| *13 | NO. 2 EARTH WIRE | *14 | FRONT SUSPENSION LOWER ARM ASSEMBLY LH |
| *15 | LEVER | *16 | SUSPENSION TOWER DAMPER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

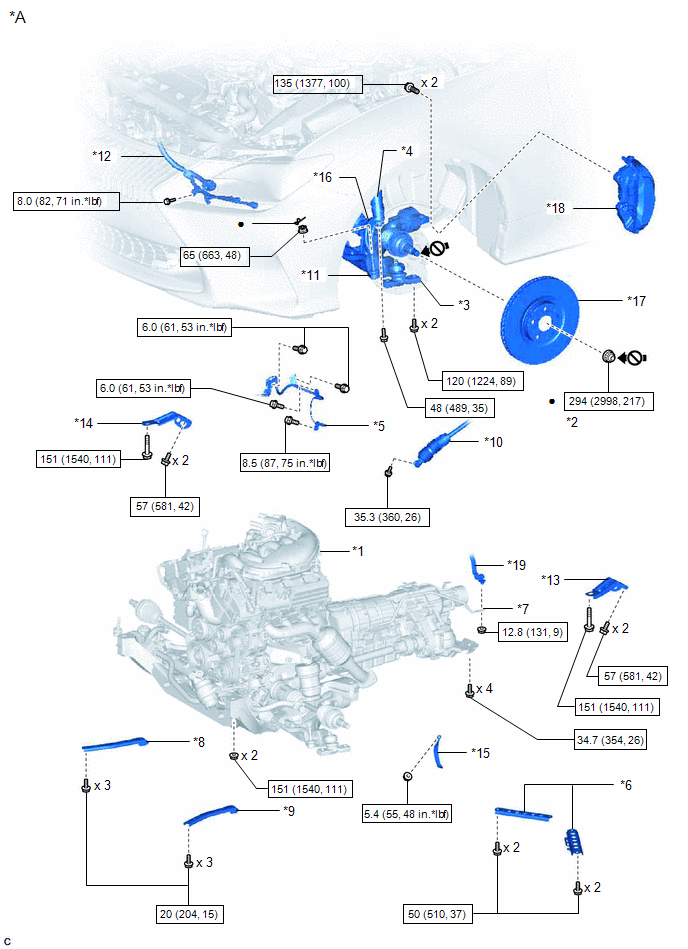

Fig 5: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (5 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | ENGINE ASSEMBLY WITH TRANSMISSION | *2 | FRONT AXLE SHAFT NUT LH |
| *3 | FRONT LOWER BALL JOINT ASSEMBLY LH | *4 | FRONT SHOCK ABSORBER ASSEMBLY LH |
| *5 | FRONT SPEED SENSOR LH | *6 | FRONT SUSPENSION MEMBER BRACE |
| *7 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY | *8 | NO. 1 FRAME CROSSMEMBER ASSEMBLY |
| *9 | NO. 2 FRAME CROSSMEMBER ASSEMBLY | *10 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *11 | TIE ROD ASSEMBLY LH | *12 | WIRE HARNESS |
| *13 | STRUT BAR BRACKET REINFORCEMENT LH | *14 | STRUT BAR BRACKET REINFORCEMENT RH |
| *15 | NO. 2 EARTH WIRE | *16 | FRONT LOWER SHOCK ABSORBER BRACKET LH |
| *17 | FRONT DISC LH | *18 | FRONT DISC BRAKE CALIPER ASSEMBLY LH |
| *19 | LEVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants (to the threaded parts) | - | - |

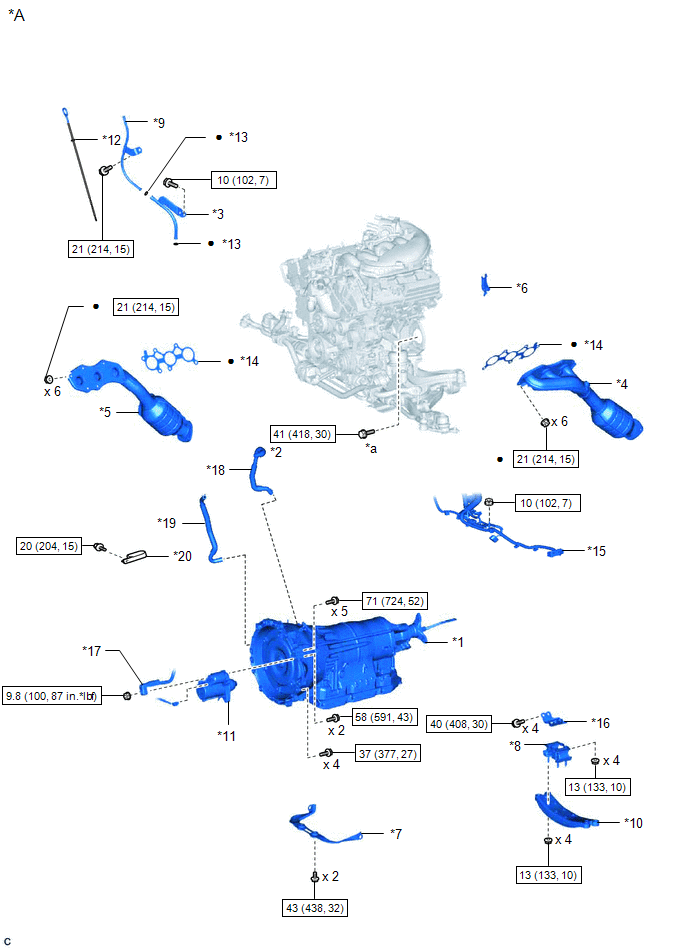

Fig 6: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (6 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | AUTOMATIC TRANSMISSION ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | ENGINE OIL LEVEL DIPSTICK GUIDE | *4 | EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) |
| *5 | EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) | *6 | FLYWHEEL HOUSING SIDE COVER |
| *7 | NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY | *8 | REAR NO. 1 ENGINE MOUNTING INSULATOR |
| *9 | NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE | *10 | REAR ENGINE MOUNTING MEMBER |
| *11 | STARTER ASSEMBLY | *12 | ENGINE OIL LEVEL DIPSTICK |
| *13 | O-RING | *14 | GASKET |
| *15 | WIRE HARNESS | *16 | NO. 1 ENGINE MOUNTING BRACKET |
| *17 | TERMINAL CAP | *18 | WATER BY-PASS HOSE |
| *19 | NO. 2 WATER BY-PASS HOSE | *20 | HOSE CLAMP |
| *a | Black: x 1 Silver: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

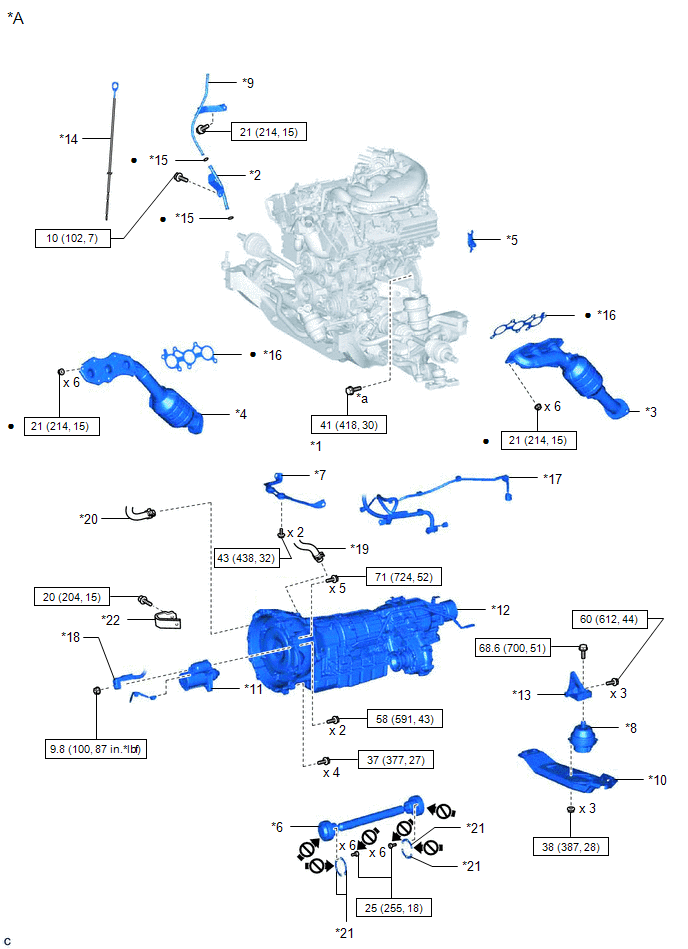

Fig 7: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (7 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT | *2 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 | EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) | *4 | EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) |
| *5 | FLYWHEEL HOUSING SIDE COVER | *6 | FRONT PROPELLER SHAFT ASSEMBLY |
| *7 | NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY | *8 | REAR NO. 1 ENGINE MOUNTING INSULATOR |
| *9 | NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE | *10 | REAR ENGINE MOUNTING MEMBER |
| *11 | STARTER ASSEMBLY | *12 | AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY |
| *13 | NO. 1 ENGINE MOUNTING BRACKET | *14 | ENGINE OIL LEVEL DIPSTICK |
| *15 | O-RING | *16 | GASKET |
| *17 | WIRE HARNESS | *18 | TERMINAL CAP |
| *19 | WATER BY-PASS HOSE | *20 | NO. 2 WATER BY-PASS HOSE |
| *21 | CONSTANT VELOCITY UNIVERSAL JOINT WASHER | *22 | HOSE CLAMP |
| *a | Black: x 1 Silver: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants | - | - |

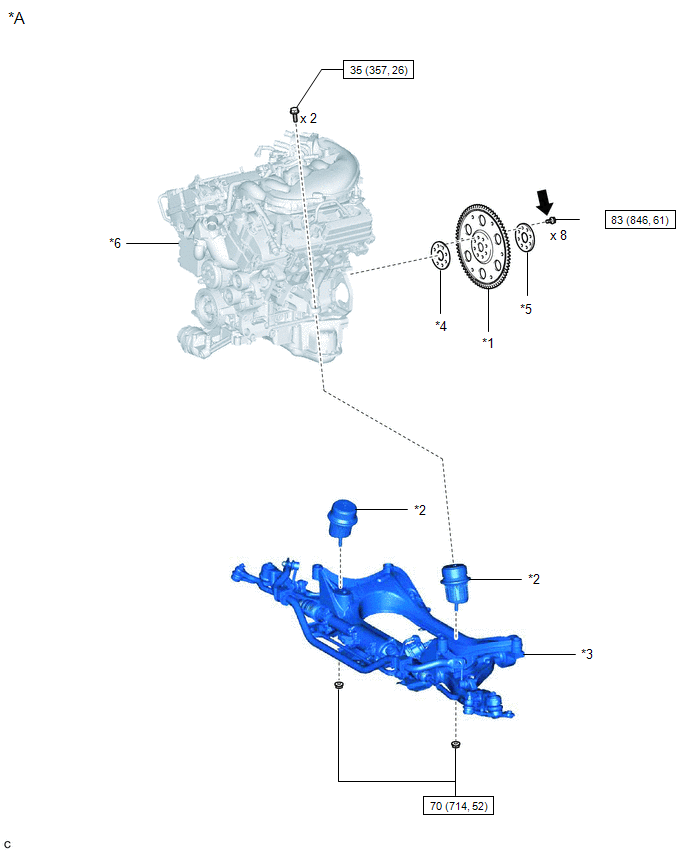

Fig 8: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (8 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | FRONT ENGINE MOUNTING INSULATOR |
| *3 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *4 | FRONT DRIVE PLATE SPACER |
| *5 | REAR DRIVE PLATE SPACER | *6 | ENGINE ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1324 | ||
| * | Precoated part | - | - |

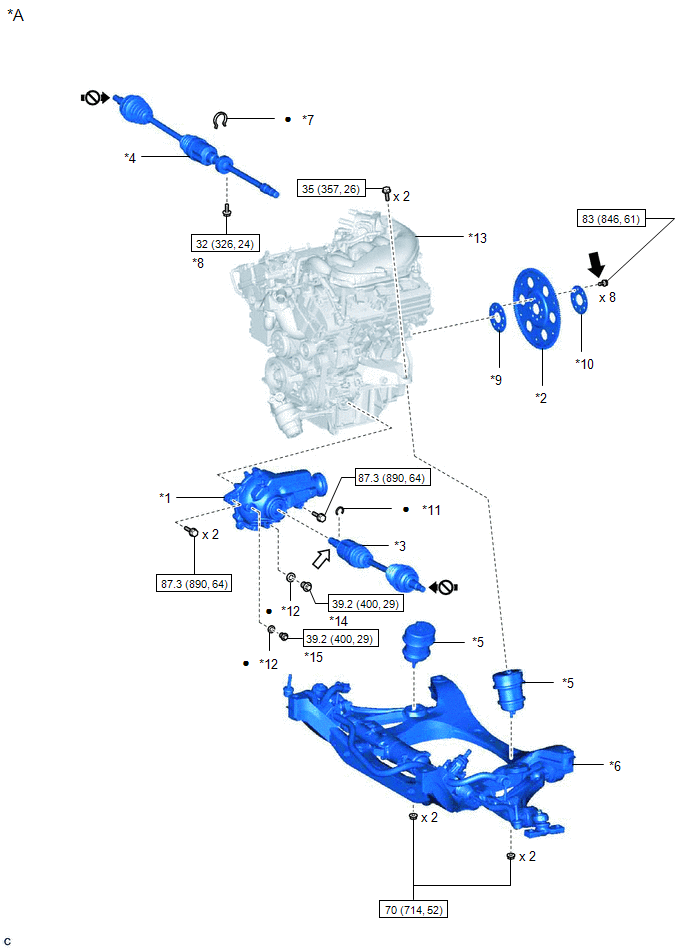

Fig 9: Engine Assembly Replacement Components With Torque Specifications [10/2015 - 11/2017] (9 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | FRONT DIFFERENTIAL CARRIER ASSEMBLY | *2 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 | FRONT DRIVE SHAFT ASSEMBLY LH | *4 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *5 | FRONT ENGINE MOUNTING INSULATOR | *6 | FRONT FRAME ASSEMBLY |
| *7 | DRIVE SHAFT BEARING BRACKET HOLE SNAP RING | *8 | NO. 1 DRIVE SHAFT BEARING BRACKET BOLT |
| *9 | FRONT DRIVE PLATE SPACER | *10 | REAR DRIVE PLATE SPACER |
| *11 | SNAP RING | *12 | GASKET |
| *13 | ENGINE ASSEMBLY | *14 | FRONT DIFFERENTIAL DRAIN PLUG |
| *15 | FRONT DIFFERENTIAL FILLER PLUG | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | MP Grease | ||
| Do not apply lubricants (to the threaded parts) | * | Precoated part |
