Components [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

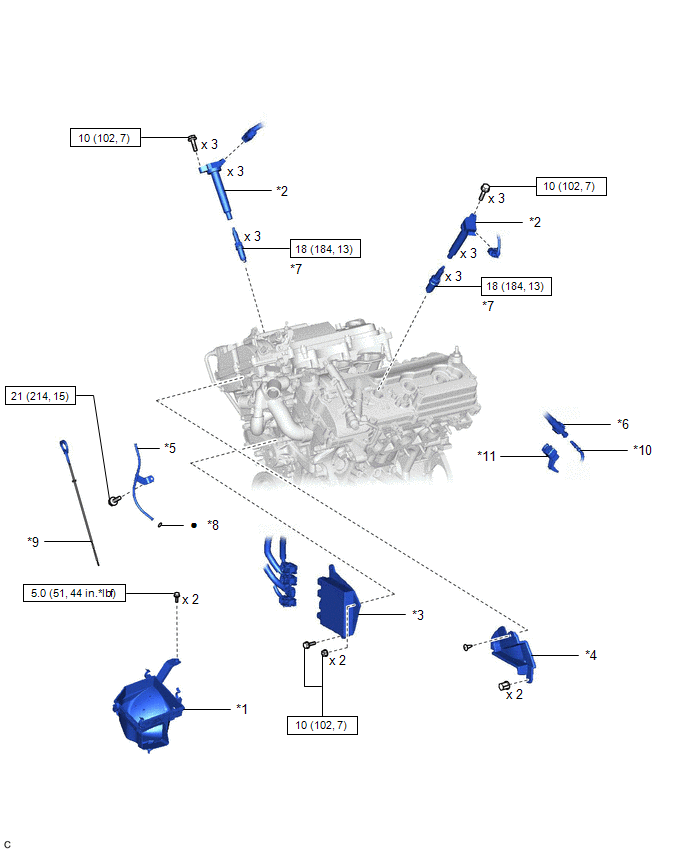

| Callout |
Description |
Callout |
Description |
| *1 |
AIR CLEANER CASE SUB-ASSEMBLY |
*2 |
IGNITION COIL ASSEMBLY |
| *3 |
INJECTOR DRIVER |
*4 |
NO. 1 ENGINE COVER |
| *5 |
NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE |
*6 |
NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *7 |
SPARK PLUG |
*8 |
O-RING |
| *9 |
ENGINE OIL LEVEL DIPSTICK |
*10 |
FUEL PIPE |
| *11 |
FUEL PIPE CLAMP |
- |
- |
|
N.m (kgf/cm, ft*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *3 |
NO. 1 OIL PIPE |
*4 |
NO. 2 OIL PIPE |
| *5 |
SPARK PLUG TUBE GASKET |
*6 |
CYLINDER HEAD COVER SEAL WASHER |
| *7 |
CYLINDER HEAD COVER GASKET |
*8 |
GASKET |
| *9 |
OIL CONTROL VALVE FILTER RH |
*10 |
OIL CONTROL VALVE FILTER LH |
| *11 |
CYLINDER HEAD COVER GASKET LH |
*12 |
OIL PIPE UNION |
| *13 |
OIL CHECK VALVE BOLT |
- |
- |
|
N.m (kgf/cm, ft*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

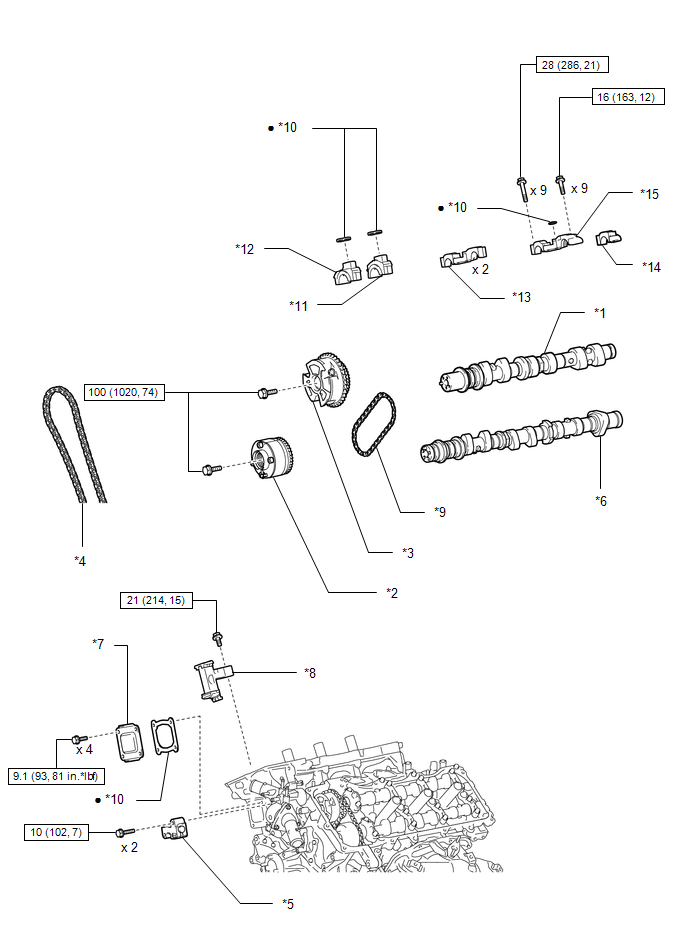

| *1 |
CAMSHAFT |
*2 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CHAIN SUB-ASSEMBLY |
| *5 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*6 |
NO. 2 CAMSHAFT |
| *7 |
TIMING CHAIN COVER PLATE |
*8 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *9 |
NO. 2 CHAIN SUB-ASSEMBLY |
*10 |
GASKET |
| *11 |
NO. 1 CAMSHAFT BEARING CAP |
*12 |
NO. 2 CAMSHAFT BEARING CAP |
| *13 |
NO. 5 CAMSHAFT BEARING CAP |
*14 |
NO. 6 CAMSHAFT BEARING CAP |
| *15 |
NO. 7 CAMSHAFT BEARING CAP |
- |
- |
|
N.m (kgf/cm, ft*lbf): Specified torque |
• |
Non-reusable part |

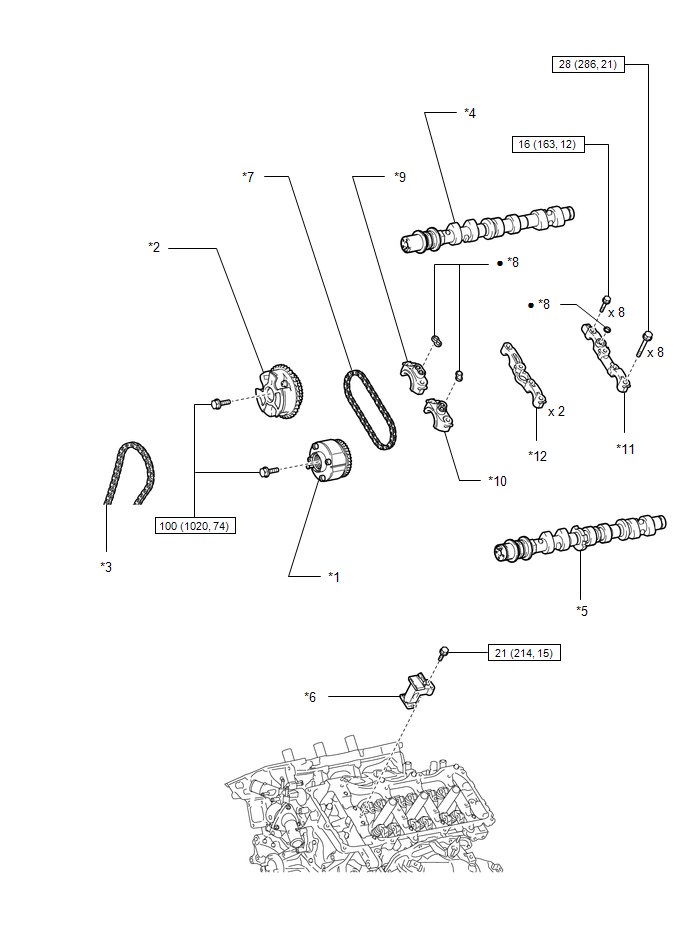

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 |
CHAIN SUB-ASSEMBLY |
*4 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
| *5 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
*6 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *7 |
NO. 2 CHAIN SUB-ASSEMBLY |
*8 |
GASKET |
| *9 |
NO. 3 CAMSHAFT BEARING CAP |
*10 |
NO. 4 CAMSHAFT BEARING CAP |
| *11 |
NO. 7 CAMSHAFT BEARING CAP |
*12 |
NO. 8 CAMSHAFT BEARING CAP |
|
N.m (kgf/cm, ft*lbf): Specified torque |
• |
Non-reusable part |
