Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    See step  1

  3. DRAIN ENGINE COOLANT

    See step  2

  4. REMOVE RADIATOR HOSE SUB-ASSEMBLY

    See step  13 [10/2015 - 11/2017], or see step  12 [11/2017 - ]

  5. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 29

  6. REMOVE IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  7. REMOVE ENGINE WATER PUMP ASSEMBLY

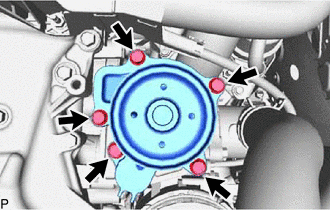

    1. Remove the 5 bolts and engine water pump assembly.
      GTY672723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the engine water pump assembly.
