Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CENTER NO. 4 ENGINE UNDER COVER |
*2 |
RADIATOR HOSE SUB-ASSEMBLY |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

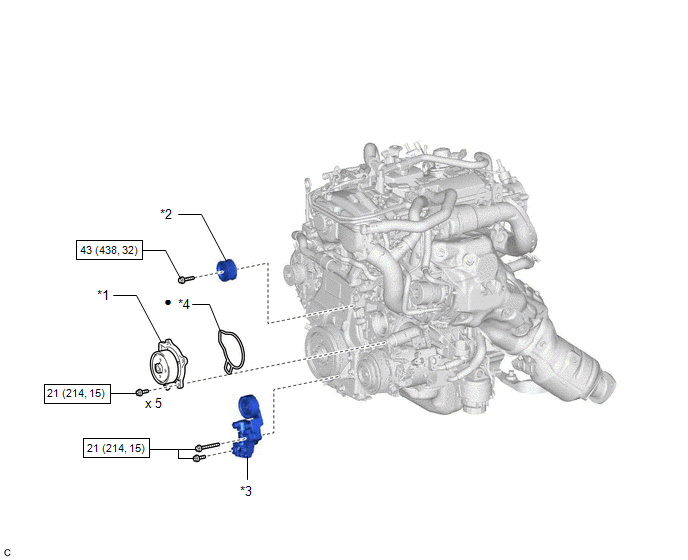

| *1 |
ENGINE WATER PUMP ASSEMBLY |
*2 |
IDLER PULLEY SUB-ASSEMBLY |
| *3 |
V-RIBBED BELT TENSIONER ASSEMBLY |
*4 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
