Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    See step  1

  2. DRAIN ENGINE COOLANT

    See step  2

  3. REMOVE ECM

    Refer to REMOVAL [10/2015 - ]

  4. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  10 [10/2015 - 11/2017], or see step  9 [11/2017 - ]

  5. REMOVE RADIATOR HOSE SUB-ASSEMBLY

    See step  13 [10/2015 - 11/2017], or see step  12 [11/2017 - ]

  6. REMOVE ENGINE ROOM ECU BOX

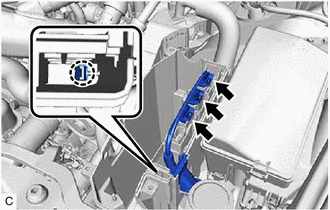

    GTY639250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 3 connectors from the connector holder.
    2. Disengage the claw and disconnect the engine wire harness from the engine room ECU box.
    3. Disengage the claw and disconnect the connector holder from the engine room ECU box.

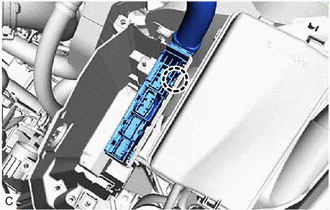

      GTY639249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts, nut and engine room ECU box.

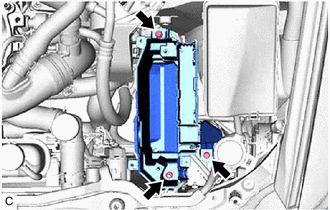

      GTY639270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 4 RADIATOR HOSE

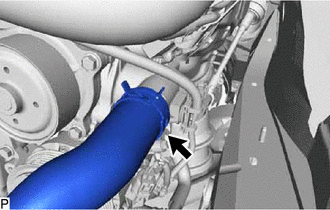

    GTY613562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Slide the clip and disconnect the No. 4 radiator hose from the water inlet.
  8. REMOVE WATER INLET

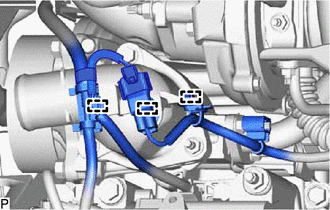

    1. Disengage the 3 clamps to disconnect the wire harness from the water inlet.
      GTY682265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

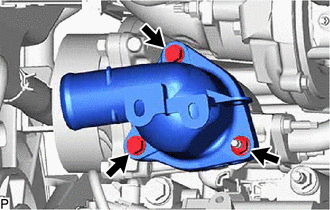

    2. Remove the 2 bolts, nut and water inlet.
      GTY656840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE THERMOSTAT
    1. Remove the thermostat from the water inlet housing sub-assembly.
    2. Remove the gasket from the thermostat.
