Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

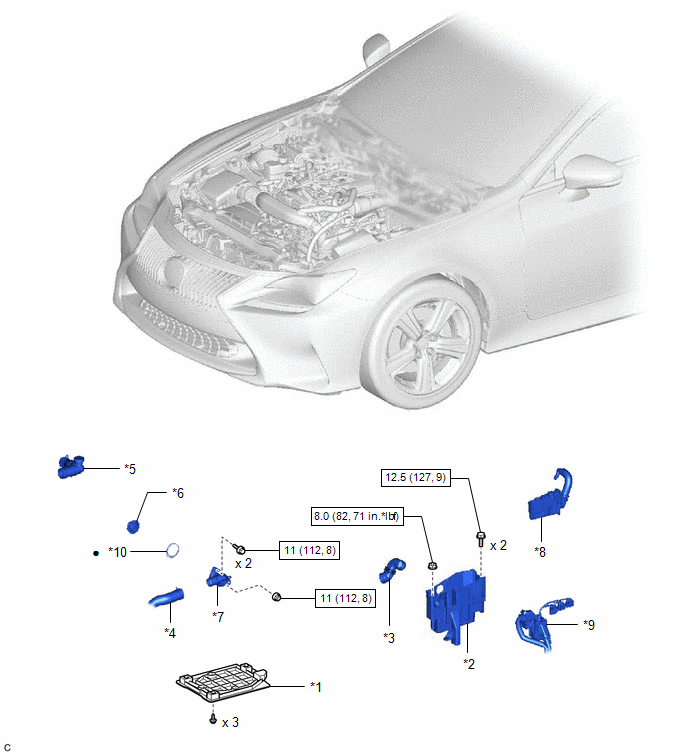

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER NO. 4 ENGINE UNDER COVER | *2 | ENGINE ROOM ECU BOX |
| *3 | ENGINE ROOM ECU OUTLET DUCT | *4 | NO. 4 RADIATOR HOSE |
| *5 | RADIATOR HOSE SUB-ASSEMBLY | *6 | THERMOSTAT |
| *7 | WATER INLET | *8 | CONNECTOR HOLDER |
| *9 | ENGINE WIRE HARNESS | *10 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
