Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

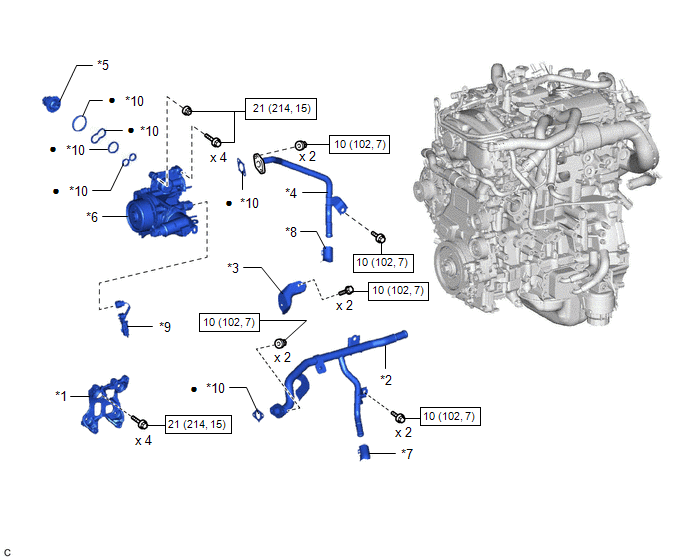

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 COMPRESSOR MOUNTING BRACKET | *2 | WATER BY-PASS PIPE ASSEMBLY |
| *3 | NO. 3 EXHAUST MANIFOLD HEAT INSULATOR | *4 | NO. 4 WATER BY-PASS PIPE |
| *5 | THERMOSTAT (for Cylinder Block) | *6 | WATER INLET HOUSING |
| *7 | NO. 5 WATER BY-PASS HOSE | *8 | NO. 4 WATER BY-PASS HOSE |
| *9 | WIRE HARNESS | *10 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
