Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

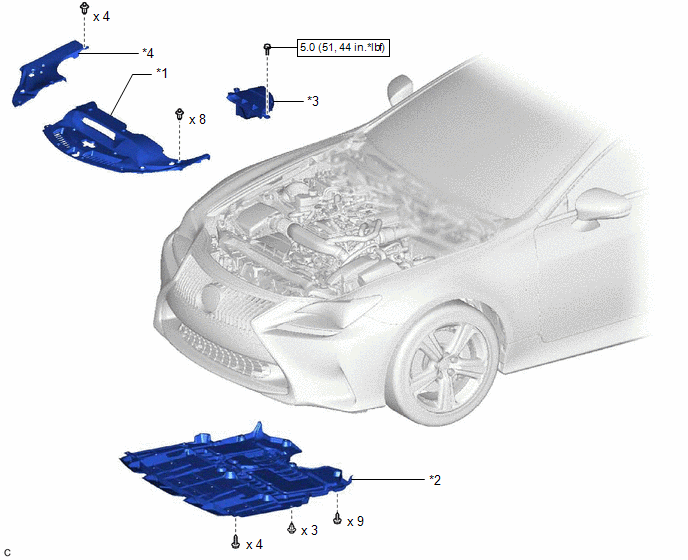

| Callout |
Description |
Callout |
Description |
| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *3 |
INLET NO. 1 AIR CLEANER |
*4 |
ENGINE ROOM SIDE COVER |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

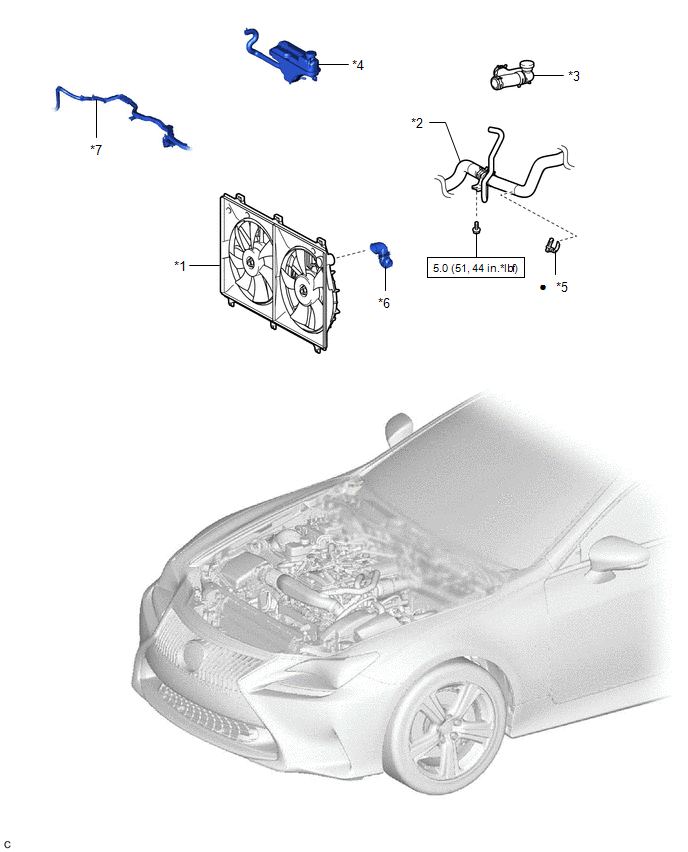

| Callout |
Description |
Callout |
Description |
| *1 |
FAN SHROUD ASSEMBLY |
*2 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
| *3 |
RADIATOR HOSE SUB-ASSEMBLY |
*4 |
RADIATOR RESERVE TANK ASSEMBLY |
| *5 |
RADIATOR HOSE CLAMP |
*6 |
ENGINE ROOM ECU OUTLET DUCT |
| *7 |
ENGINE ROOM MAIN WIRE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

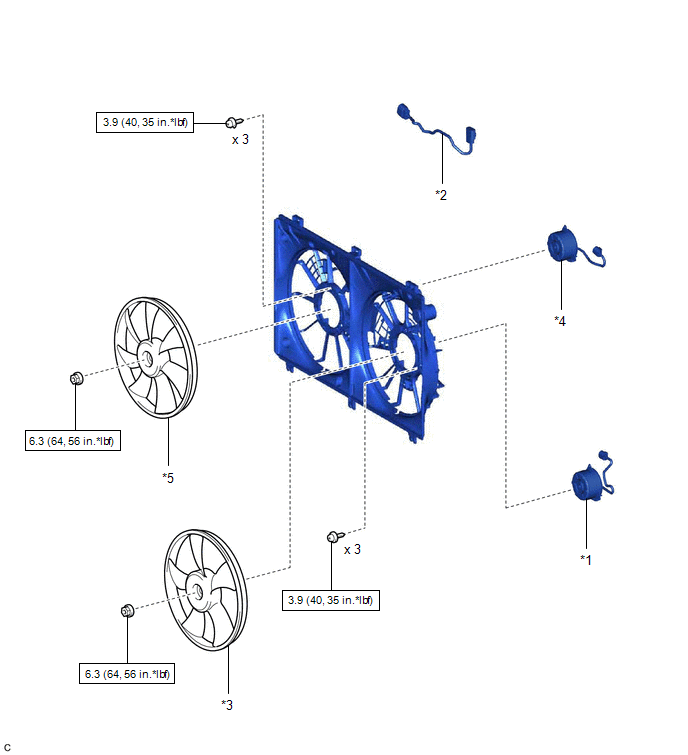

| Callout |
Description |
Callout |
Description |
| *1 |
COOLING FAN MOTOR |
*2 |
COOLING FAN WIRE |
| *3 |
FAN |
*4 |
NO. 2 COOLING FAN MOTOR |
| *5 |
NO. 2 FAN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
