Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [10/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ]

  3. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    See step  10

  4. REMOVE TIMING CHAIN COVER OIL SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.
      NOTE:
      • Do not damage the surface of the press fit hole or crankshaft.
      • After removing the timing chain cover oil seal, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.

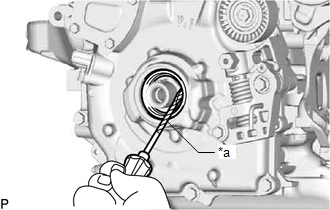

      GTY671021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.
