Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

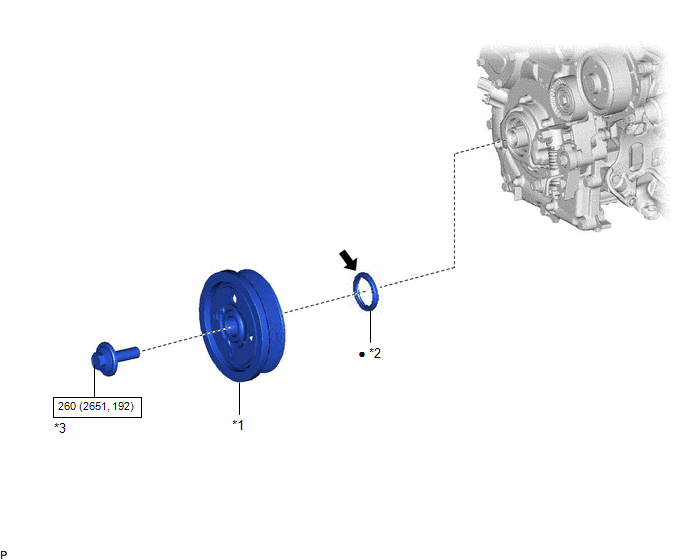

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	CRANKSHAFT PULLEY ASSEMBLY	*2	TIMING CHAIN COVER OIL SEAL
*3	CRANKSHAFT PULLEY SET BOLT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-
