Components [10/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

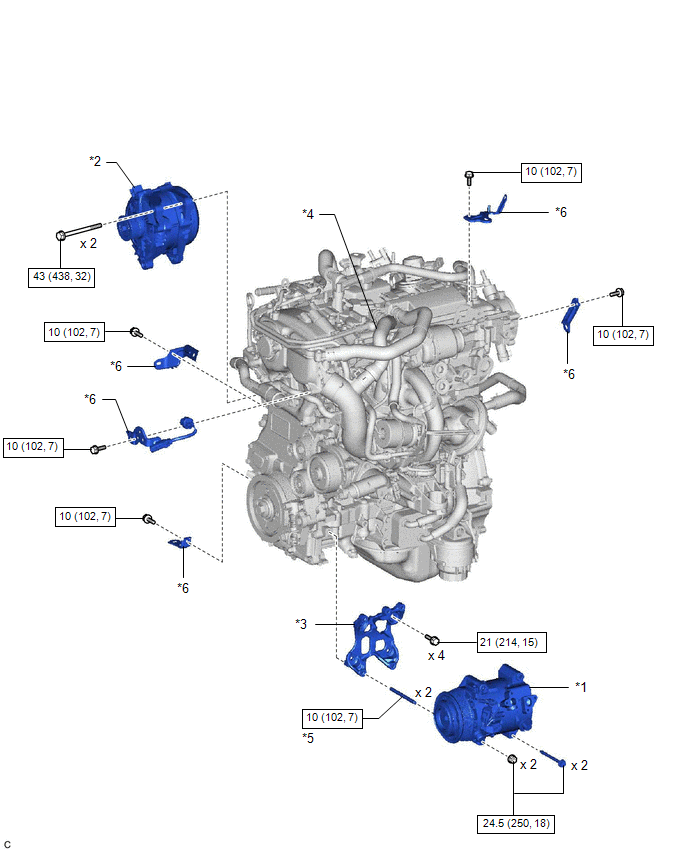

Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 12)
GTY656487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMPRESSOR AND MAGNETIC CLUTCH *2 GENERATOR ASSEMBLY
*3 NO. 1 COMPRESSOR MOUNTING BRACKET *4 NO. 4 VENTILATION HOSE
*5 STUD BOLT *6 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -

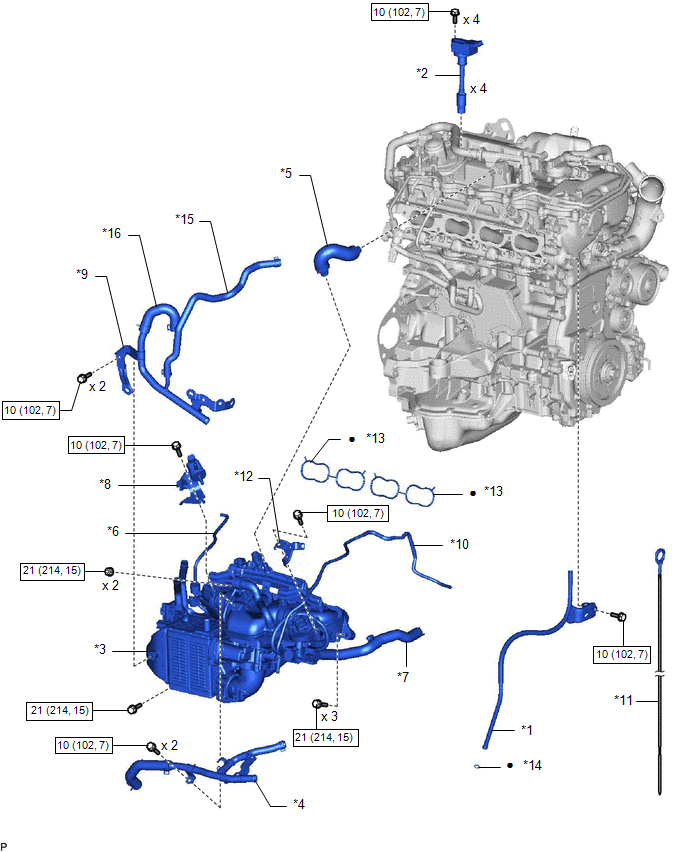

Fig 2: Engine Unit Replacement Components With Torque Specifications (2 Of 12)
GTY613856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 IGNITION COIL ASSEMBLY
*3 INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY AND THROTTLE WITH MOTOR BODY ASSEMBLY *4 NO. 2 WATER BY-PASS PIPE
*5 NO. 2 VENTILATION HOSE *6 NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
*7 NO. 3 WATER BY-PASS HOSE *8 PURGE VALVE (PURGE VSV)
*9 WATER BY-PASS PIPE ASSEMBLY *10 VACUUM TRANSMITTING HOSE ASSEMBLY
*11 ENGINE OIL LEVEL DIPSTICK *12 WIRE HARNESS CLAMP BRACKET
*13 INTAKE MANIFOLD GASKET *14 O-RING
*15 NO. 2 TURBO WATER HOSE *16 NO. 9 WATER BY-PASS HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

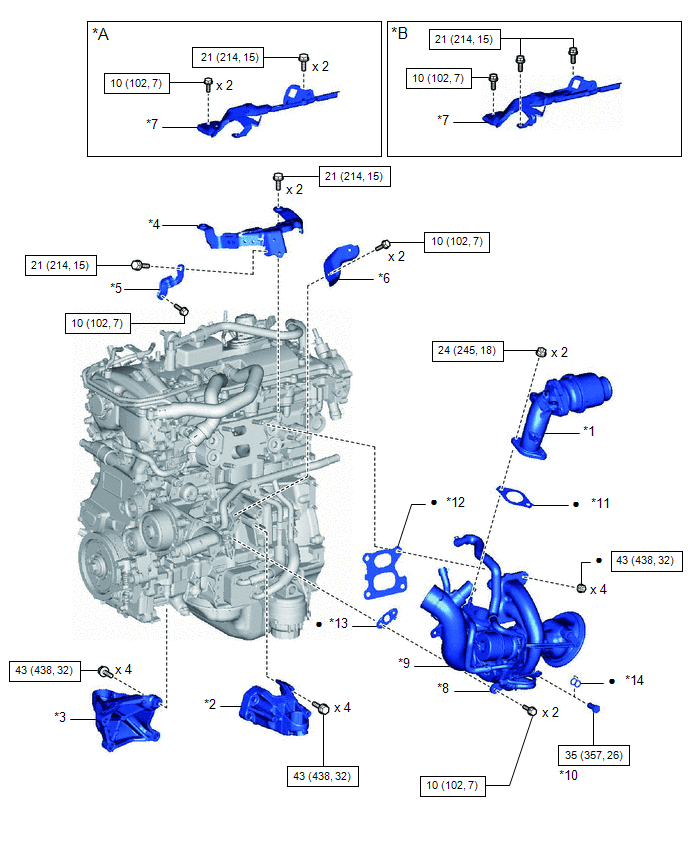

Fig 3: Engine Unit Replacement Components With Torque Specifications (3 Of 12)
GTY797249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 COMPRESSOR OUTLET ELBOW *2 FRONT NO. 1 ENGINE MOUNTING BRACKET LH
*3 FRONT NO. 1 ENGINE MOUNTING BRACKET RH *4 NO. 1 HEAT INSULATOR BRACKET
*5 NO. 2 HEAT INSULATOR BRACKET *6 NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
*7 NO. 5 EXHAUST MANIFOLD HEAT INSULATOR *8 INLET TURBO OIL PIPE SUB-ASSEMBLY
*9 TURBOCHARGER SUB-ASSEMBLY *10 UNION BOLT
*11 OUTLET COMPRESSOR GASKET *12 EXHAUST MANIFOLD TO HEAD GASKET
*13 OUTLET NO. 1 TURBO OIL GASKET *14 NO. 1 UNION BOLT GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

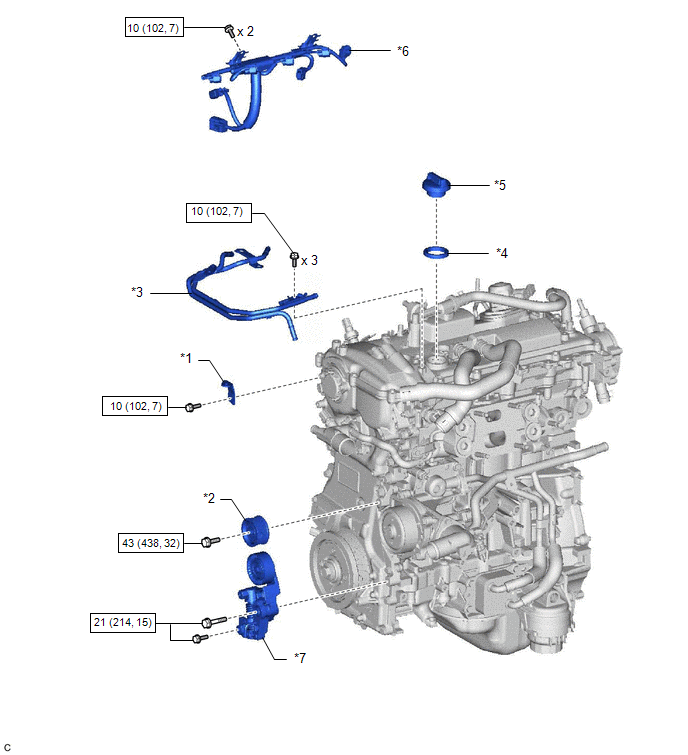

Fig 4: Engine Unit Replacement Components With Torque Specifications (4 Of 12)
GTY670476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER BRACKET *2 IDLER PULLEY SUB-ASSEMBLY
*3 NO. 1 TURBO WATER PIPE *4 OIL FILLER CAP GASKET
*5 OIL FILLER CAP SUB-ASSEMBLY *6 SENSOR WIRE
*7 V-RIBBED BELT TENSIONER ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

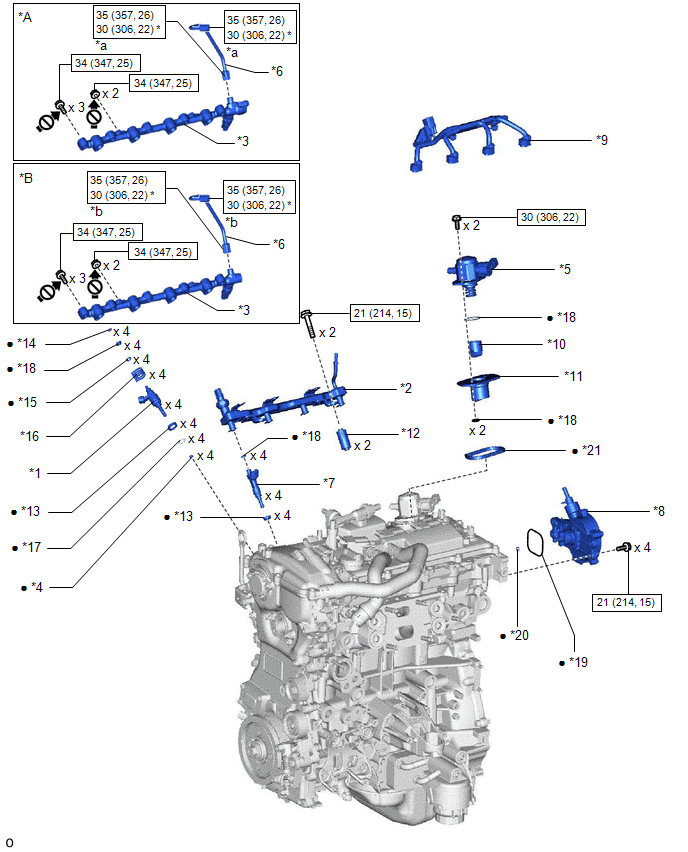

Fig 5: Engine Unit Replacement Components With Torque Specifications (5 Of 12)
GTY805186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Type A *B for Type B
*1 DIRECT FUEL INJECTOR ASSEMBLY *2 FUEL DELIVERY PIPE (for Port Injection)
*3 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection) *4 FUEL INJECTOR SEAL (for Direct Injection)
*5 FUEL PUMP ASSEMBLY (for High Pressure) *6 NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure)
*7 PORT FUEL INJECTOR ASSEMBLY *8 VACUUM PUMP ASSEMBLY
*9 NO. 6 ENGINE WIRE *10 FUEL PUMP LIFTER ASSEMBLY
*11 FUEL PUMP LIFTER GUIDE *12 FUEL DELIVERY SPACER
*13 INJECTOR VIBRATION INSULATOR *14 NO. 3 FUEL INJECTOR BACK-UP RING
*15 NO. 1 FUEL INJECTOR BACK-UP RING *16 NOZZLE HOLDER CLAMP
*17 C-RING *18 O-RING
*19 NO. 2 O-RING *20 NO. 3 O-RING
*21 FUEL PUMP SPACER GASKET - -
*a Union Nut Color: Silver *b Union Nut Color: Black
N*m (kgf*cm, ft.*lbf): Specified torque * For use with a union nut wrench
• Non-reusable part Do not apply lubricants to the threaded parts

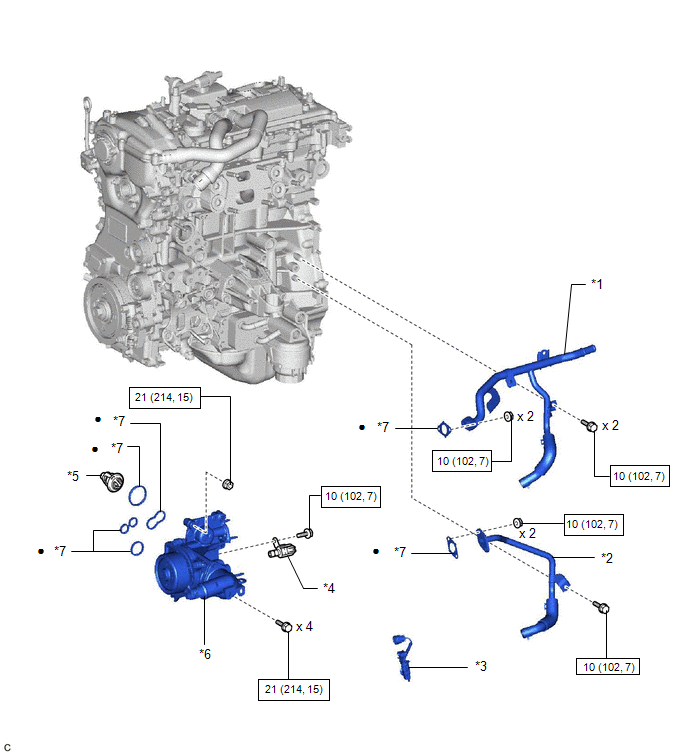

Fig 6: Engine Unit Replacement Components With Torque Specifications (6 Of 12)
GTY674662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WATER BY-PASS PIPE ASSEMBLY *2 NO. 4 WATER BY-PASS PIPE
*3 NO. 9 ENGINE WIRE *4 OIL PRESSURE SWITCHING VALVE ASSEMBLY
*5 THERMOSTAT (for Cylinder Block) *6 WATER INLET HOUSING
*7 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

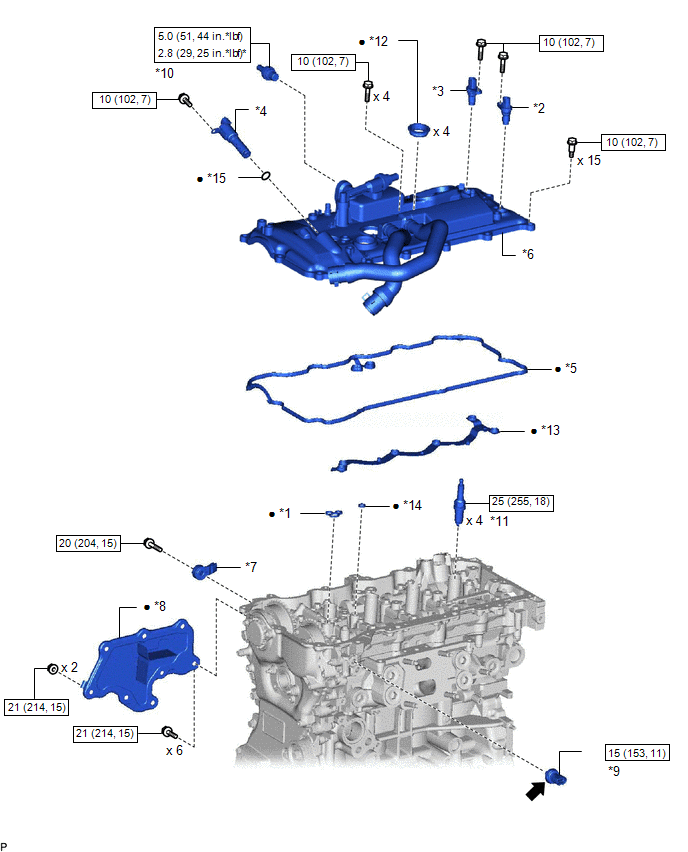

Fig 7: Engine Unit Replacement Components With Torque Specifications (7 Of 12)
GTY665692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT BEARING CAP OIL HOLE GASKET *2 CAMSHAFT POSITION SENSOR (for Exhaust Side)
*3 CAMSHAFT POSITION SENSOR (for Intake Side) *4 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
*5 CYLINDER HEAD COVER GASKET *6 CYLINDER HEAD COVER SUB-ASSEMBLY
*7 KNOCK SENSOR *8 NO. 1 VENTILATION CASE
*9 OIL PRESSURE SENDER GAUGE ASSEMBLY *10 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*11 SPARK PLUG *12 SPARK PLUG TUBE GASKET
*13 NO. 2 CYLINDER HEAD COVER GASKET *14 GASKET
*15 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with ball joint lock nut wrench
• Non-reusable part Adhesive 1344
* Precoated part - -

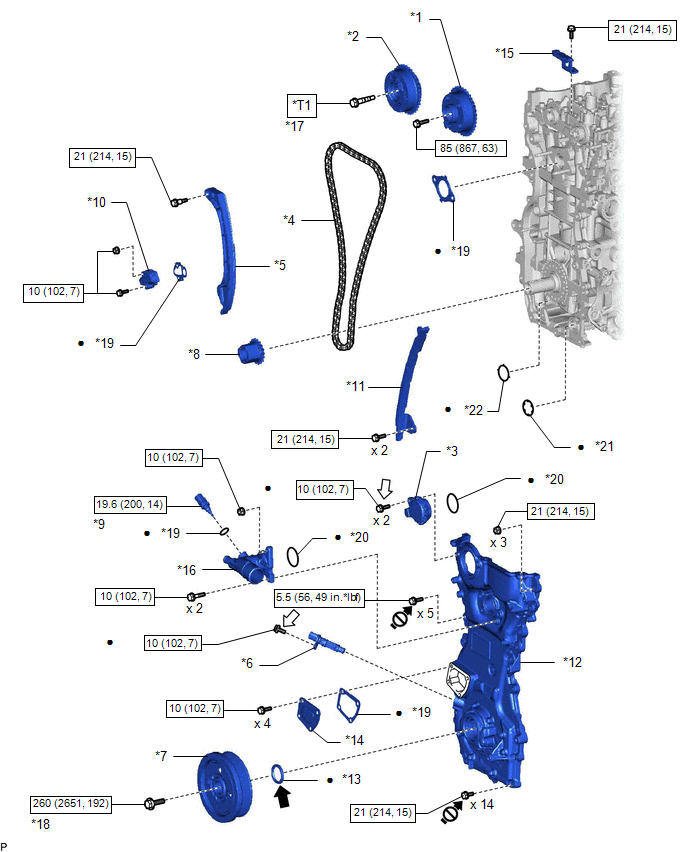

Fig 8: Engine Unit Replacement Components With Torque Specifications (8 Of 12)
GTY622660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *2 CAMSHAFT TIMING GEAR ASSEMBLY
*3 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY *4 CHAIN SUB-ASSEMBLY
*5 CHAIN TENSIONER SLIPPER *6 CRANKSHAFT POSITION SENSOR
*7 CRANKSHAFT PULLEY ASSEMBLY *8 CRANKSHAFT TIMING SPROCKET
*9 ENGINE COOLANT TEMPERATURE SENSOR *10 NO. 1 CHAIN TENSIONER ASSEMBLY
*11 NO. 1 CHAIN VIBRATION DAMPER *12 TIMING CHAIN COVER ASSEMBLY
*13 TIMING CHAIN COVER OIL SEAL *14 TIMING CHAIN COVER PLATE
*15 TIMING CHAIN GUIDE *16 WATER OUTLET SUB-ASSEMBLY
*17 CAMSHAFT TIMING GEAR BOLT *18 CRANKSHAFT PULLEY SET BOLT
*19 GASKET *20 O-RING
*21 OIL PUMP GASKET *22 NO. 2 OIL STRAINER GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Adhesive 1324
* Precoated part Do not apply lubricants to the threaded parts
*T1 Type A: 120 N*m (1224 kgf*cm, 89 ft.*lbf)
Type B: 95 N*m (969 kgf*cm, 70 ft.*lbf)		 - -

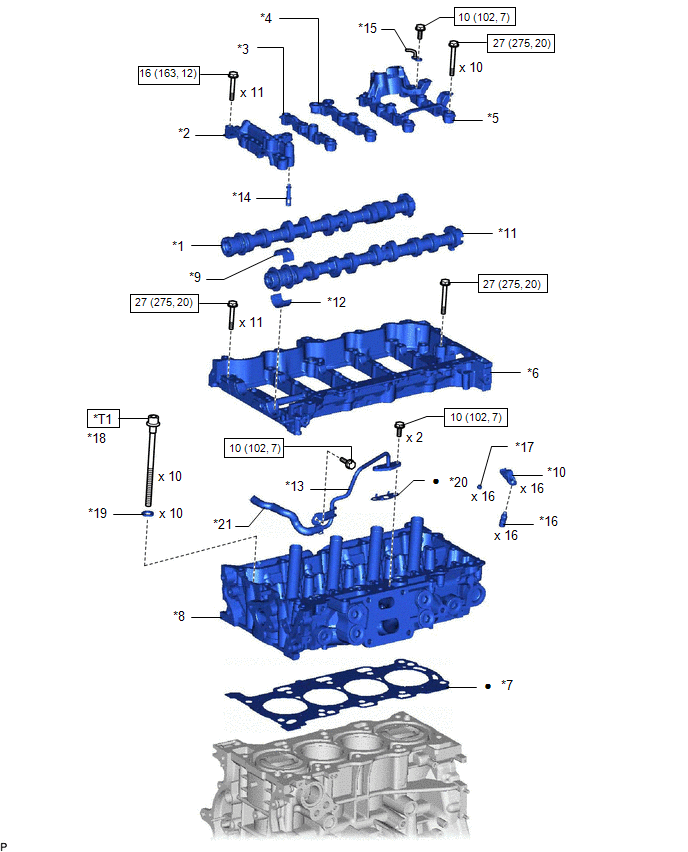

Fig 9: Engine Unit Replacement Components With Torque Specifications (9 Of 12)
GTY676099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 NO. 1 CAMSHAFT BEARING CAP
*3 NO. 2 CAMSHAFT BEARING CAP *4 NO. 3 CAMSHAFT BEARING CAP
*5 NO. 4 CAMSHAFT BEARING CAP *6 CAMSHAFT HOUSING SUB-ASSEMBLY
*7 CYLINDER HEAD GASKET *8 CYLINDER HEAD SUB-ASSEMBLY
*9 NO. 1 CAMSHAFT BEARING *10 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*11 NO. 2 CAMSHAFT *12 NO. 2 CAMSHAFT BEARING
*13 NO. 3 WATER BY-PASS PIPE *14 OIL CONTROL VALVE FILTER
*15 OIL PIPE SUB-ASSEMBLY *16 VALVE LASH ADJUSTER ASSEMBLY
*17 VALVE STEM CAP *18 CYLINDER HEAD SET BOLT
*19 PLATE WASHER *20 GASKET
*21 WATER BY-PASS HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 85 (867, 63)
2nd: Turn 90°
3rd: Turn 90°		 - -

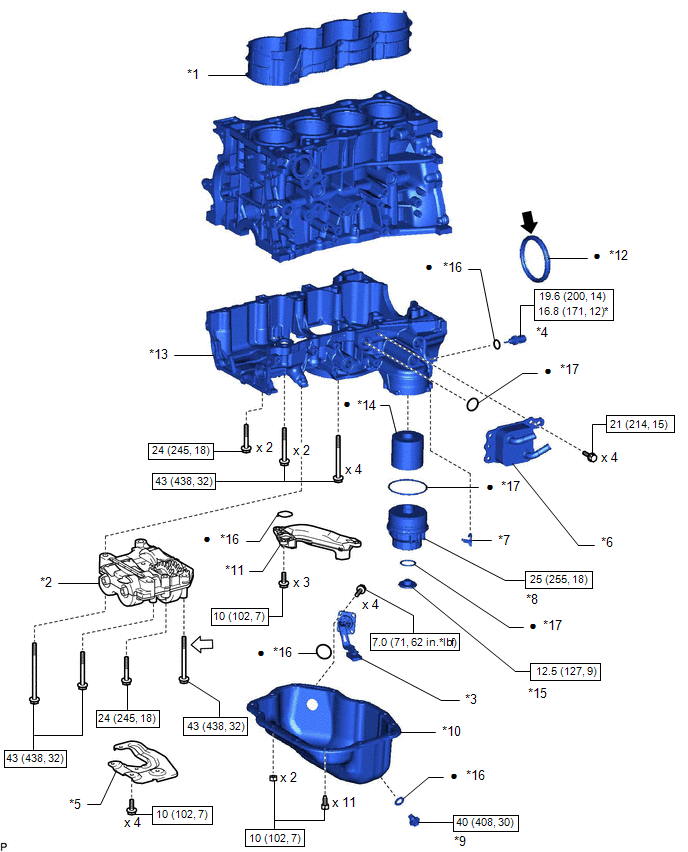

Fig 10: Engine Unit Replacement Components With Torque Specifications (10 Of 12)
GTY636440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER BLOCK WATER JACKET SPACER *2 ENGINE BALANCER ASSEMBLY
*3 ENGINE OIL LEVEL SENSOR *4 ENGINE OIL TEMPERATURE SENSOR
*5 NO. 1 OIL PAN BAFFLE PLATE *6 OIL COOLER ASSEMBLY
*7 OIL FILTER BRACKET CLIP *8 OIL FILTER CAP ASSEMBLY
*9 OIL PAN DRAIN PLUG *10 OIL PAN SUB-ASSEMBLY
*11 OIL STRAINER SUB-ASSEMBLY *12 REAR ENGINE OIL SEAL
*13 STIFFENING CRANKCASE ASSEMBLY *14 OIL FILTER ELEMENT
*15 OIL FILTER DRAIN PLUG *16 GASKET
*17 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with a union nut wrench
• Non-reusable part MP grease
Adhesive 1344 * Precoated part

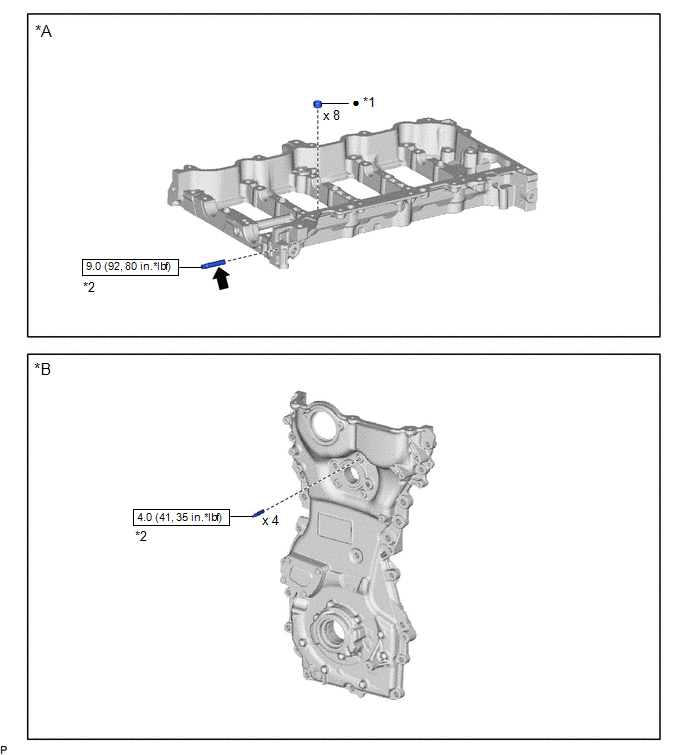

Fig 11: Engine Unit Replacement Components With Torque Specifications (11 Of 12)
GTY673911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A CAMSHAFT HOUSING SUB-ASSEMBLY *B TIMING CHAIN COVER ASSEMBLY
*1 RING PIN *2 STUD BOLT
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

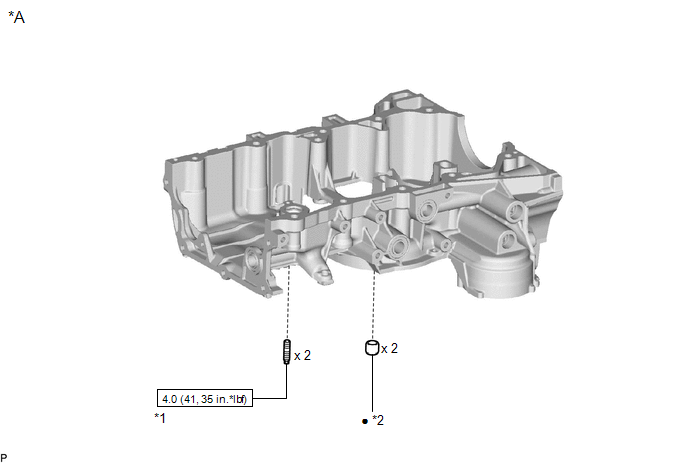

Fig 12: Engine Unit Replacement Components With Torque Specifications (12 Of 12)
GTY630515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A STIFFENING CRANKCASE ASSEMBLY - -
*1 STUD BOLT *2 RING PIN
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
