Components [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

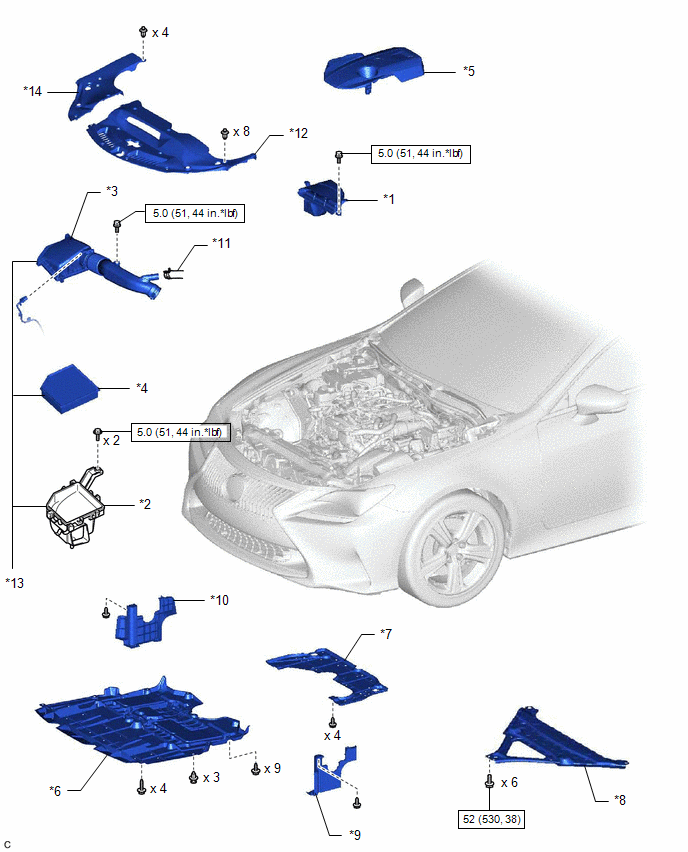

Fig 1: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (1 Of 6)
GTY672037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INLET NO. 1 AIR CLEANER *2 AIR CLEANER CASE SUB-ASSEMBLY
*3 AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE ASSEMBLY *4 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*5 NO. 1 ENGINE COVER SUB-ASSEMBLY *6 NO. 1 ENGINE UNDER COVER ASSEMBLY
*7 NO. 2 ENGINE UNDER COVER *8 FRONT SUSPENSION MEMBER BRACE
*9 REAR ENGINE UNDER COVER LH *10 REAR ENGINE UNDER COVER RH
*11 NO. 1 VENTILATION HOSE *12 COOL AIR INTAKE DUCT SEAL
*13 AIR CLEANER ASSEMBLY WITH NO. 2 AIR CLEANER HOSE *14 ENGINE ROOM SIDE COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -

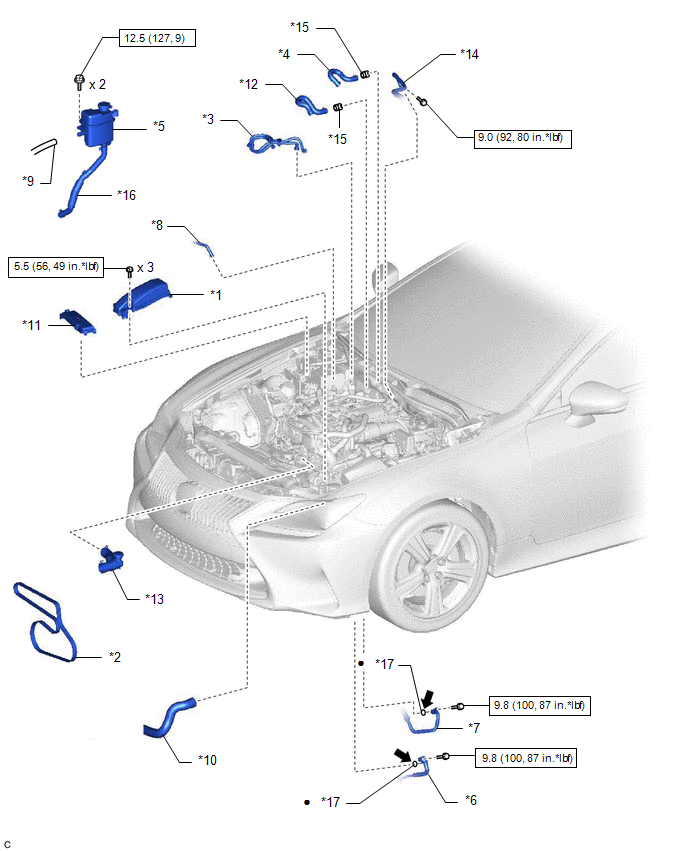

Fig 2: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (2 Of 6)
GTY673664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE ROOM ECU COVER *2 V-RIBBED BELT
*3 FUEL TUBE SUB-ASSEMBLY *4 INLET HEATER WATER HOSE A
*5 INTERCOOLER RESERVE TANK ASSEMBLY *6 NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*7 SUCTION HOSE *8 NO. 1 FUEL VAPOR FEED HOSE
*9 NO. 3 INTERCOOLER COOLING WATER HOSE *10 NO. 2 RADIATOR HOSE SUB-ASSEMBLY
*11 NO. 1 ENGINE ROOM RELAY BLOCK COVER *12 OUTLET HEATER WATER HOSE A
*13 RADIATOR HOSE SUB-ASSEMBLY *14 UNION TO CHECK VALVE HOSE
*15 WATER HOSE SET *16 NO. 4 INTERCOOLER COOLING WATER HOSE
*17 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 12 or equivalent - -

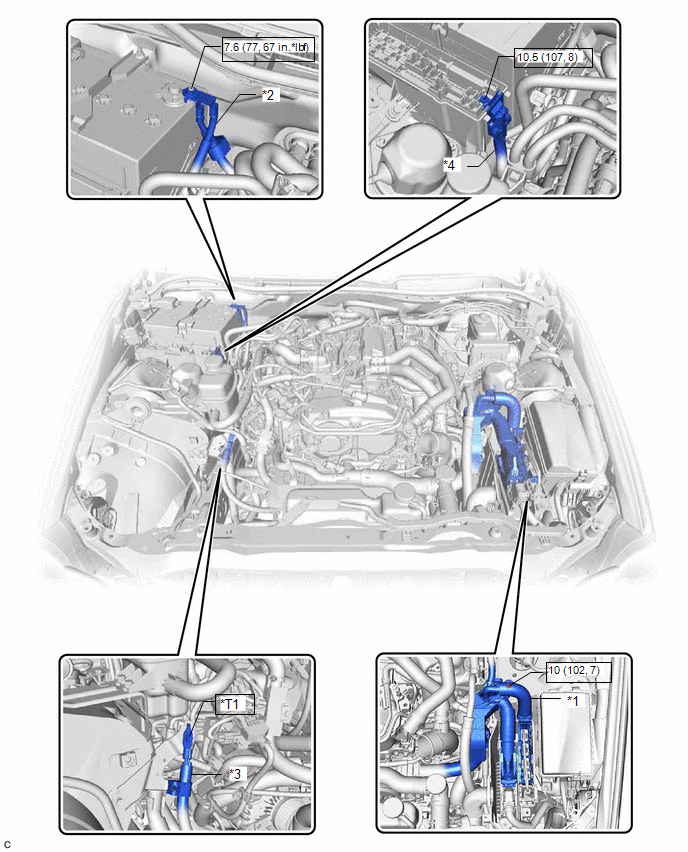

Fig 3: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (3 Of 6)
GTY946692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WIRE *2 NO. 2 ENGINE WIRE
*3 NO. 3 ENGINE WIRE *4 NO. 4 ENGINE WIRE
N*m (kgf*cm, ft.*lbf): Specified torque - -
*T1 Type A: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
Type B: 10 N*m (102 kgf*cm, 7 ft.*lbf)		 - -

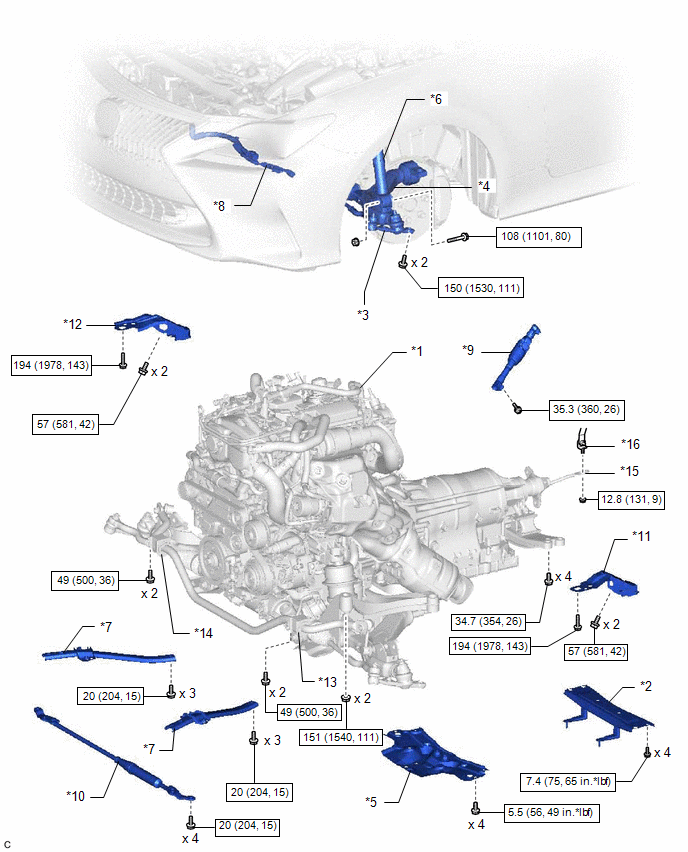

Fig 4: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (4 Of 6)
GTY650413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE ASSEMBLY WITH TRANSMISSION *2 FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
*3 FRONT LOWER BALL JOINT ASSEMBLY LH *4 FRONT LOWER SUSPENSION ARM ASSEMBLY
*5 FRONT LOWER SUSPENSION MEMBER PROTECTOR *6 FRONT SHOCK ABSORBER ASSEMBLY LH
*7 FRONT UPPER NO. 2 SUSPENSION MEMBER *8 NO. 3 ENGINE WIRE
*9 STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY *10 SUSPENSION TOWER DAMPER
*11 STRUT BAR BRACKET REINFORCEMENT LH *12 STRUT BAR BRACKET REINFORCEMENT RH
*13 FRONT NO. 2 STABILIZER BRACKET LH *14 FRONT NO. 2 STABILIZER BRACKET RH
*15 FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY *16 SHIFT LEVER
N*m (kgf*cm, ft.*lbf): Specified torque - -

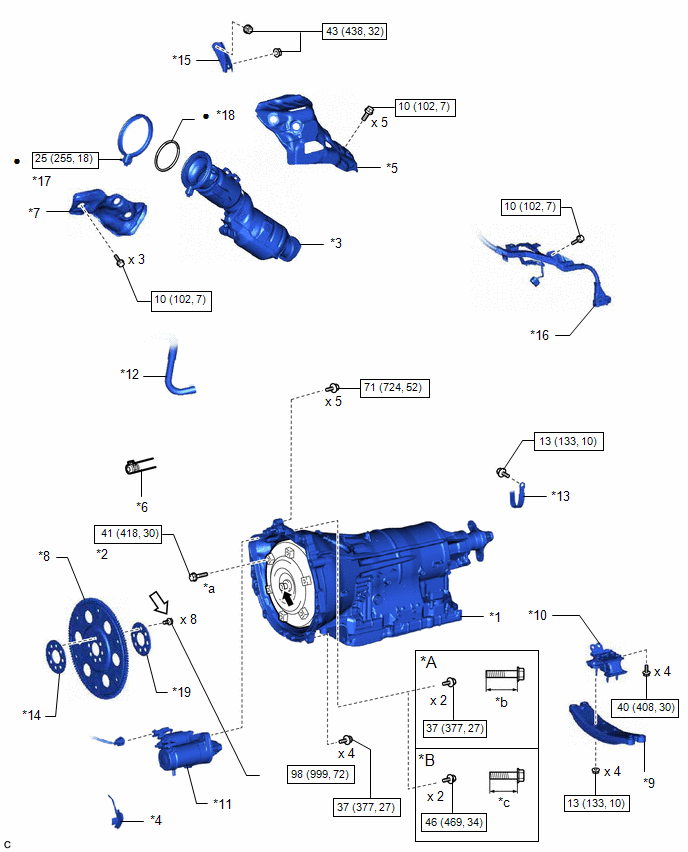

Fig 5: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (5 Of 6)
GTY1243049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 AUTOMATIC TRANSMISSION ASSEMBLY *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front and Rear Catalyst) *4 FLYWHEEL HOUSING SIDE COVER
*5 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *6 NO. 13 WATER BY-PASS HOSE
*7 NO. 4 EXHAUST MANIFOLD HEAT INSULATOR *8 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*9 REAR ENGINE MOUNTING MEMBER *10 REAR NO. 1 ENGINE MOUNTING INSULATOR
*11 STARTER ASSEMBLY *12 NO. 12 WATER BY-PASS HOSE
*13 NO. 2 EARTH WIRE *14 FRONT DRIVE PLATE SPACER
*15 TURBOCHARGER STAY *16 WIRE HARNESS
*17 EXHAUST PIPE CLAMP *18 OUTLET TURBINE ELBOW GASKET
*19 REAR DRIVE PLATE SPACER - -
*a Black: x 1
Silver: x 5		 *b 45 mm (1.77 in.)
*c 40 mm (1.57 in.) - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Clutch spline grease Adhesive 1324
* Precoated part - -

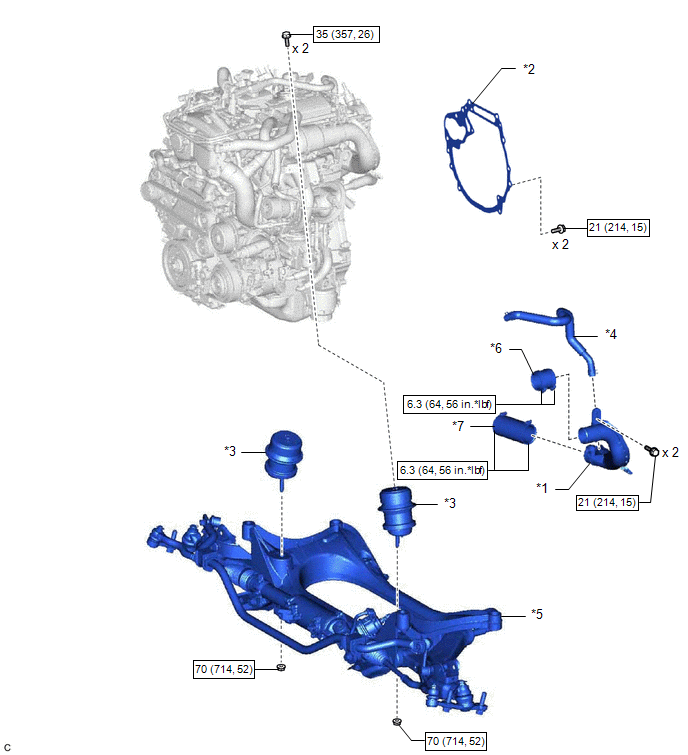

Fig 6: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (6 Of 6)
GTY645773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR TUBE *2 REAR END PLATE
*3 FRONT ENGINE MOUNTING INSULATOR *4 NO. 3 VENTILATION HOSE
*5 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *6 NO. 1 AIR HOSE
*7 NO. 2 AIR HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
