Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    See step  12

  2. REMOVE V-RIBBED BELT

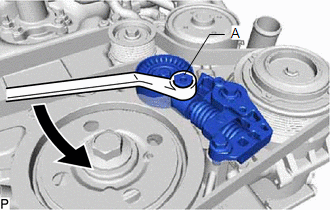

    1. Attach a wrench to the hexagonal portion (A) of the V-ribbed belt tensioner assembly as shown in the illustration.
      GTY653853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

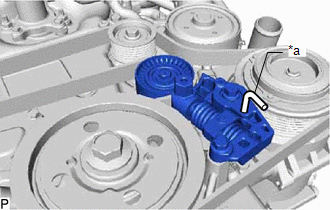

    2. Using a 5 mm hexagon wrench, secure the V-ribbed belt tensioner assembly as shown in the illustration and remove the V-ribbed belt.
      GTY651288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Hexagon Wrench
