Disassembly [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE VALVE

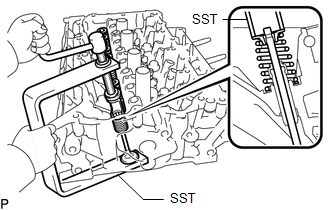

    1. Using SST, compress the compression spring and remove the 8 valve spring retainer locks.
      GTY511925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09202-70020
      • SST: 09202-00021
    2. Remove the 8 valve spring retainers, 8 compression springs and 8 intake valves.

      HINT:

      Arrange the removed parts in the correct order.

  2. REMOVE EXHAUST VALVE
    WARNING:
    • The exhaust valve is filled with sodium. Sodium is a strong alkali which can produce a dangerous chemical reaction. Be very careful when handling and disposing of it.
    • Do not intensionally expose the sodium in exhaust valve. If sodium enters your eyes, vision loss may occur. If sodium contacts your skin, burns may occur. If a fire occurs due to a chemical reaction with sodium, burns may occur.
    • If the sodium in the exhaust valve is exposed, perform all necessary preparations to safely remove and dispose of the sodium.
    • When removing a damaged exhaust valve, always wear rubber gloves and safety glasses.
    • Do not intentionality cut or break open the exhaust valve to remove the sodium.

    HINT:

    • The sodium inside the exhaust valve is safe as long as it remains sealed inside the exhaust valve.
    • Exhaust valves filled with sodium can be identified by their "NA" identification mark.

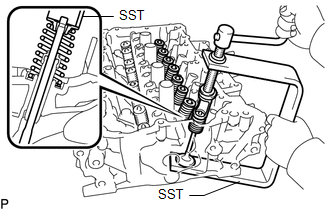

    1. Using SST, compress the compression spring and remove the 8 valve spring retainer locks.
      GTY502174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09202-70020
      • SST: 09202-00021
    2. Remove the 8 valve spring retainers, 8 compression springs and 8 exhaust valves.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE VALVE STEM OIL SEAL

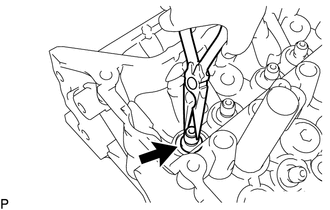

    1. Using needle-nose pliers, remove the 16 valve stem oil seals.
      GTY510636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VALVE SPRING SEAT

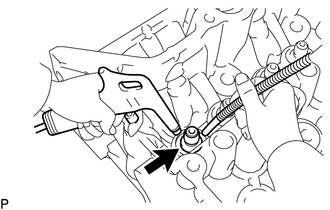

    1. Using compressed air and a Magnet Hand, remove the 16 valve spring seats from the cylinder head sub-assembly by blowing air onto them.
      GTY510635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from a No. 1 straight screw plug or the plug is corroded, replace it.

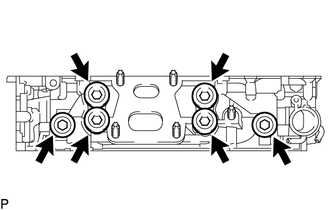

    1. Using a 14 mm hexagon wrench, remove the 6 No. 1 straight screw plugs and 6 gaskets.
      GTY519222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

  7. DISPOSE OF EXHAUST VALVE
    WARNING:
    • The exhaust valve is filled with sodium. Sodium is a strong alkali which can produce a dangerous chemical reaction. Be very careful when handling and disposing of it.
    • Do not intensionally expose the sodium in exhaust valve. If sodium enters your eyes, vision loss may occur. If sodium contacts your skin, burns may occur. If a fire occurs due to a chemical reaction with sodium, burns may occur.
    • If the sodium in the exhaust valve is exposed, perform all necessary preparations to safely remove and dispose of the sodium.
    • When removing a damaged exhaust valve, always wear rubber gloves and safety glasses.
    • Do not intentionality cut or break open the exhaust valve to remove the sodium.

    HINT:

    • The sodium inside the exhaust valve is safe as long as it remains sealed inside the exhaust valve.
    • Exhaust valves filled with sodium can be identified by their "NA" identification mark.
    1. Waste disposal preparation
      WARNING:

      Observe the following precautions when performing the disposal procedure.

      1. Have a suitable fire extinguisher close by.
      2. Wear safety glasses.
      3. Wear rubber gloves.
    2. Waste disposal
      1. Remove the damaged exhaust valve from the cylinder head sub-assembly.
      2. Prepare a large container, such as a bucket or oil can, filled with 10 L or more of water and place it in a well ventilated area.
      3. Using pliers or a large pair of tweezers, hold the damaged exhaust valve upright and submerge it into the water.
        WARNING:
        • Make sure to fully submerge the damaged exhaust valve in water.
        • Do not allow any sparks or other flames near the container as hydrogen gas is generated by the chemical reaction.
        • Stay at least 2 m away from the receptacle as a strong chemical reaction occurs.
