Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

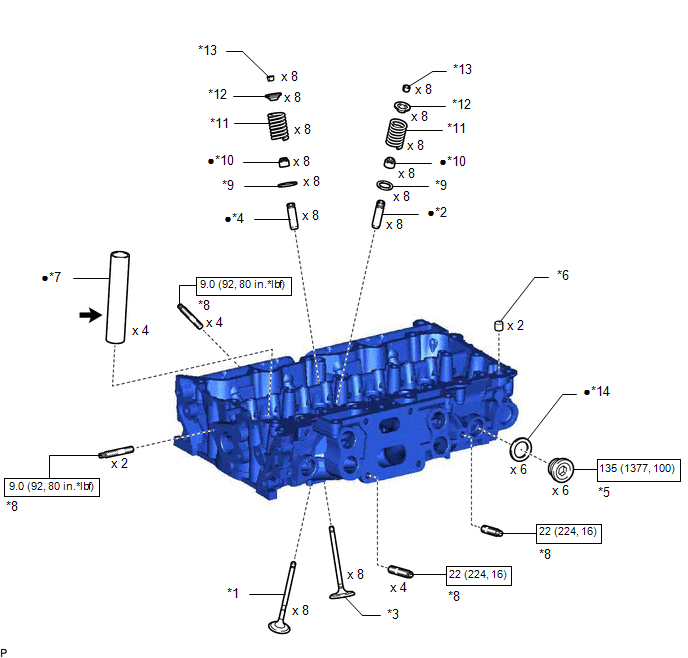

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST VALVE | *2 | EXHAUST VALVE GUIDE BUSH |
| *3 | INTAKE VALVE | *4 | INTAKE VALVE GUIDE BUSH |
| *5 | NO. 1 STRAIGHT SCREW PLUG | *6 | RING PIN |
| *7 | SPARK PLUG TUBE | *8 | STUD BOLT |
| *9 | VALVE SPRING SEAT | *10 | VALVE STEM OIL SEAL |
| *11 | COMPRESSION SPRING | *12 | VALVE SPRING RETAINER |
| *13 | VALVE SPRING RETAINER LOCK | *14 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
