Replacement [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE RING PIN

HINT:

It is not necessary to remove the ring pins unless they are being replaced.

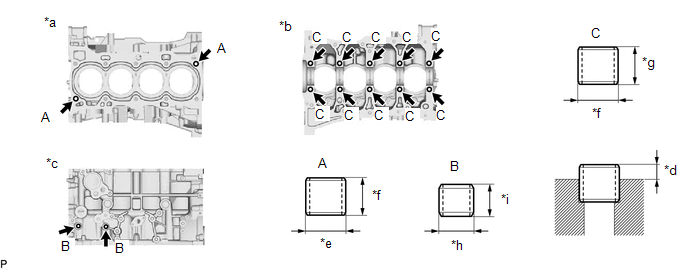

Remove the 14 ring pins.

Using a plastic hammer, install 14 new ring pins.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Top Side	*b	Bottom Side
*c	LH Side	*d	Protrusion Height
*e	15 mm (0.591 in.)	*f	14 mm (0.551 in.)
*g	12 mm (0.472 in.)	*h	11 mm (0.433 in.)
*i	8 mm (0.315 in.)	-	-

Standard Protrusion Height

Item	Specified Condition
(A), (C)	5.0 to 7.0 mm (0.197 to 0.276 in.)
(B)	3.0 to 5.0 mm (0.118 to 0.197 in.)

REPLACE STRAIGHT PIN

HINT:

It is not necessary to remove the straight pins unless they are being replaced.

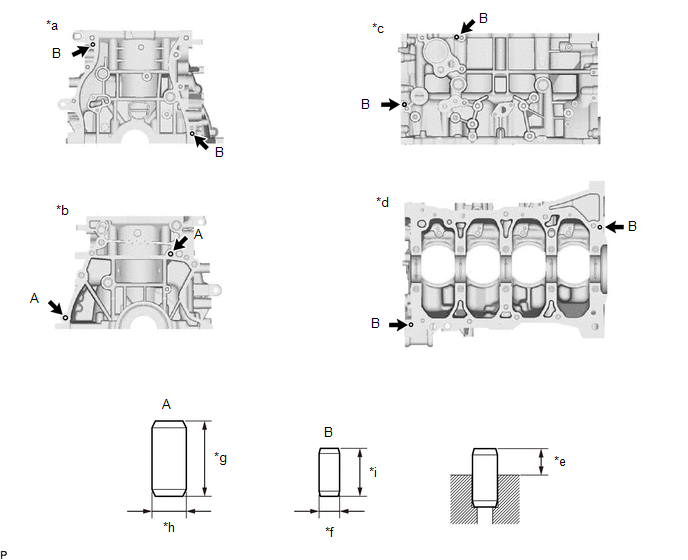

Remove the 8 straight pins.

Using a plastic hammer, install 8 new straight pins.

*a	Front Side	*b	Rear Side
*c	LH Side	*d	Bottom Side
*e	Protrusion Height	*f	6 mm (0.236 in.)
*g	22 mm (0.866 in.)	*h	10 mm (0.394 in.)
*i	14 mm (0.551 in.)	-	-

Standard Protrusion Height

Item	Specified Condition
(A)	11.0 to 13.0 mm (0.433 to 0.512 in.)
(B)	4.0 to 6.0 mm (0.157 to 0.236 in.)
