Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

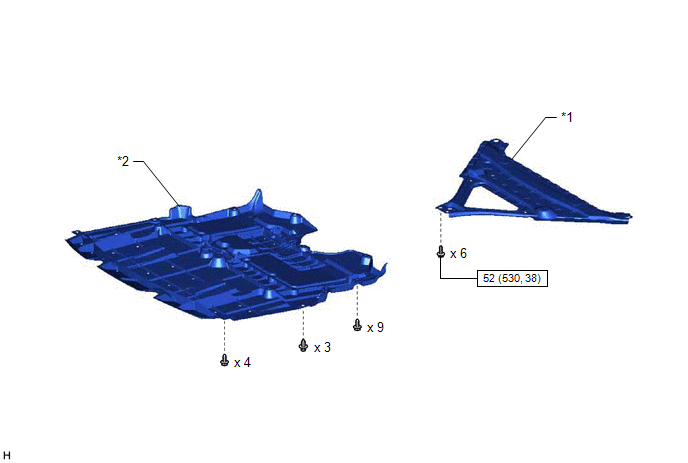

| *1 |
FRONT SUSPENSION MEMBER BRACE |
*2 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

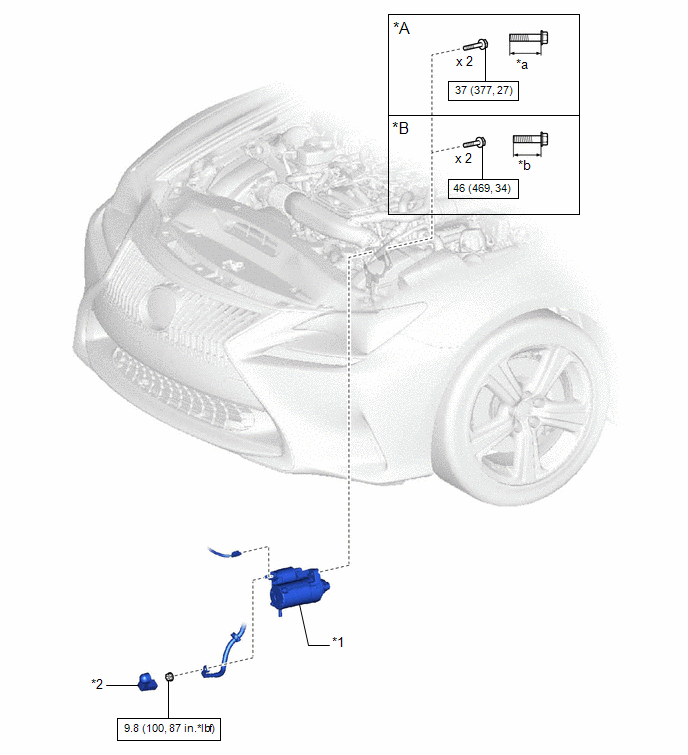

| *A |
Type A |
*B |
Type B |
| *1 |
STARTER ASSEMBLY |
*2 |
TERMINAL CAP |
| *a |
45 mm (1.77 in.) |
*b |
40 mm (1.57 in.) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

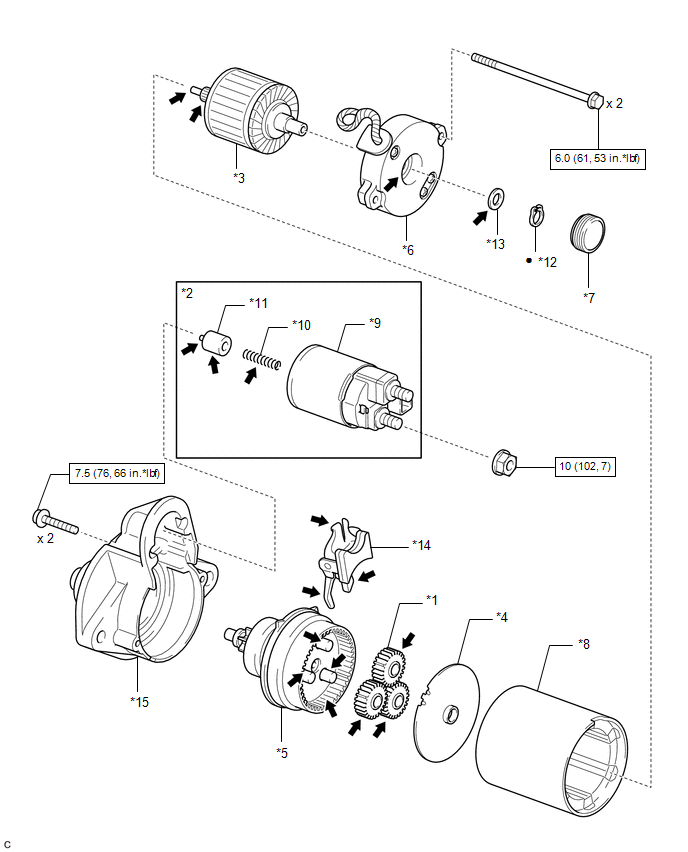

| *1 |
PLANETARY GEAR |
*2 |
REPAIR SERVICE STARTER KIT |
| *3 |
STARTER ARMATURE ASSEMBLY |
*4 |
STARTER ARMATURE PLATE |
| *5 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
*6 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
| *7 |
STARTER COMMUTATOR END FRAME COVER |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
MAGNET SWITCH |
*10 |
RETURN SPRING |
| *11 |
PLUNGER |
*12 |
SNAP RING |
| *13 |
WASHER |
*14 |
DRIVE LEVER SET PIN |
| *15 |
STARTER DRIVE HOUSING ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
High-temperature Grease |
- |
- |
