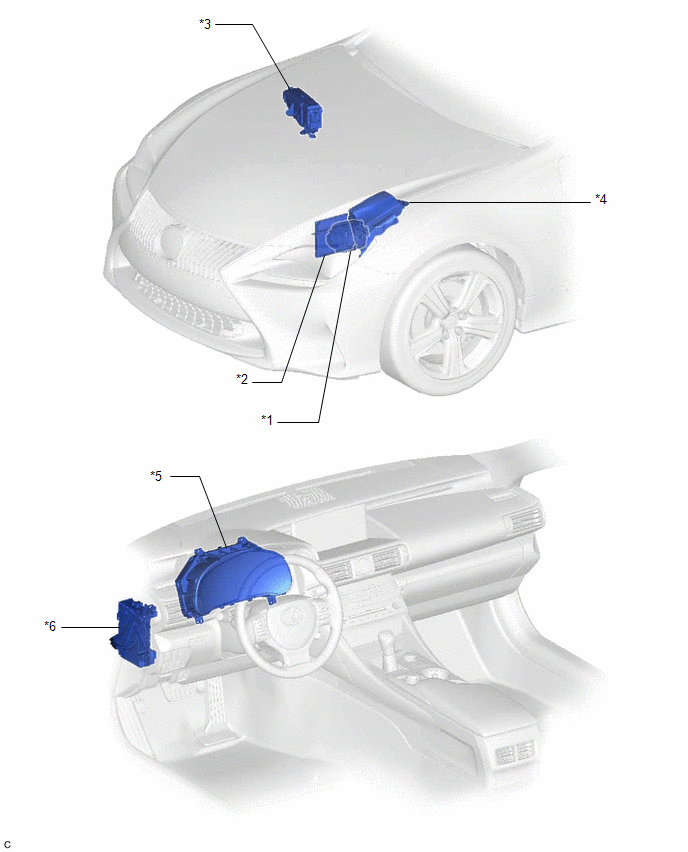

Parts Location [09/2014 - 11/2017]: Illustration
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
GENERATOR ASSEMBLY |
*2 |
ECM |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ALT FUSE
- ALT-S FUSE
- D/C CUT FUSE
- MPX-B NO. 1 FUSE |
*4 |
NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ALT-IG FUSE |
| *5 |
COMBINATION METER ASSEMBLY |
*6 |
COWL SIDE JUNCTION BLOCK LH
- METER FUSE |
