Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT CENTER FLOOR COVER LH (for Full Cover Type)
Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - 11/2017]
REMOVE FRONT CENTER FLOOR COVER RH (for Full Cover Type)
Refer to PROCEDURE - Step 5 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 3 [10/2015 - 11/2017]
REMOVE FRONT CENTER FLOOR BRACE
Refer to PROCEDURE - Step 6 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 6 [10/2015 - 11/2017]

DISCONNECT HEATED OXYGEN SENSOR

for Bank 1:

Disconnect the heated oxygen sensor grommet from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

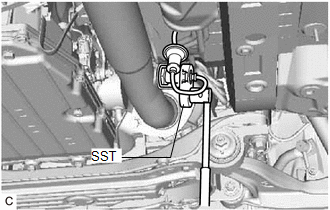

Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

SST: 09224-00010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to drop the heated oxygen sensor.

for Bank 2 (for 2WD):

Disconnect the heated oxygen sensor grommet from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

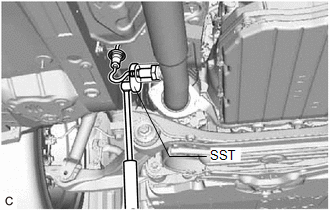

Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

NOTE:

Be careful not to drop the heated oxygen sensor.

for Bank 2 (for AWD with Front Floor Cover LH):

Disconnect the 6 clips and remove the front floor cover LH from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the heated oxygen sensor grommet from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 3 clamps.

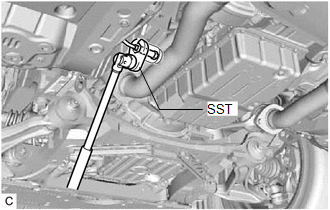

Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

NOTE:

Be careful not to drop the heated oxygen sensor.

for Bank 2 (for AWD without Front Floor Cover LH):

Disconnect the heated oxygen sensor grommet from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 4 clamps.

Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

NOTE:

Be careful not to drop the heated oxygen sensor.

REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Remove the 4 bolts and 4 nuts to disconnect the front exhaust pipe assembly (TWC: Rear Catalyst).

Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly (TWC: Rear Catalyst).

Remove the 4 exhaust pipe gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).

DISCONNECT TAIL EXHAUST PIPE ASSEMBLY

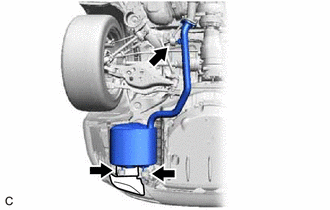

Disconnect the tail exhaust pipe assembly from the 3 exhaust pipe supports.

NOTE:

Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

DISCONNECT TAIL EXHAUST PIPE LH

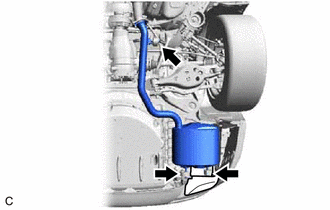

Disconnect the tail exhaust pipe LH from the 3 exhaust pipe supports.

NOTE:

Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

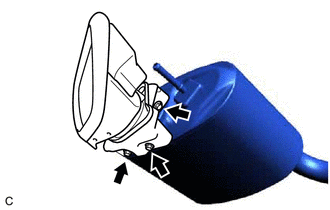

Remove the 3 bolts and tail exhaust pipe baffle sub-assembly from the tail exhaust pipe assembly.

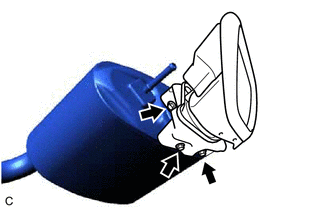

Remove the 3 bolts and tail exhaust pipe baffle sub-assembly from the tail exhaust pipe LH.
