Components [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

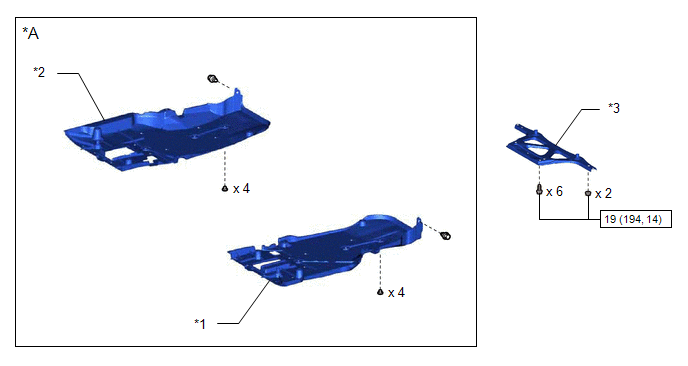

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [09/2014 - 11/2017] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Full Cover Type	-	-
*1	FRONT CENTER FLOOR COVER LH	*2	FRONT CENTER FLOOR COVER RH
*3	FRONT CENTER FLOOR BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

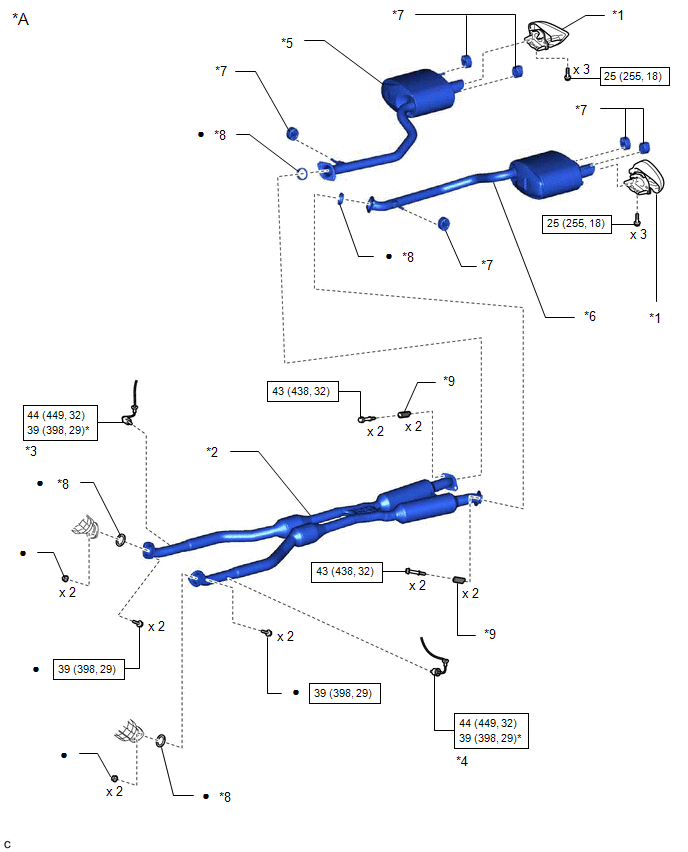

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications [09/2014 - 11/2017] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*2	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3	HEATED OXYGEN SENSOR (for Bank 1)	*4	HEATED OXYGEN SENSOR (for Bank 2)
*5	TAIL EXHAUST PIPE ASSEMBLY	*6	TAIL EXHAUST PIPE LH
*7	EXHAUST PIPE SUPPORT	*8	EXHAUST PIPE GASKET
*9	COMPRESSION SPRING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

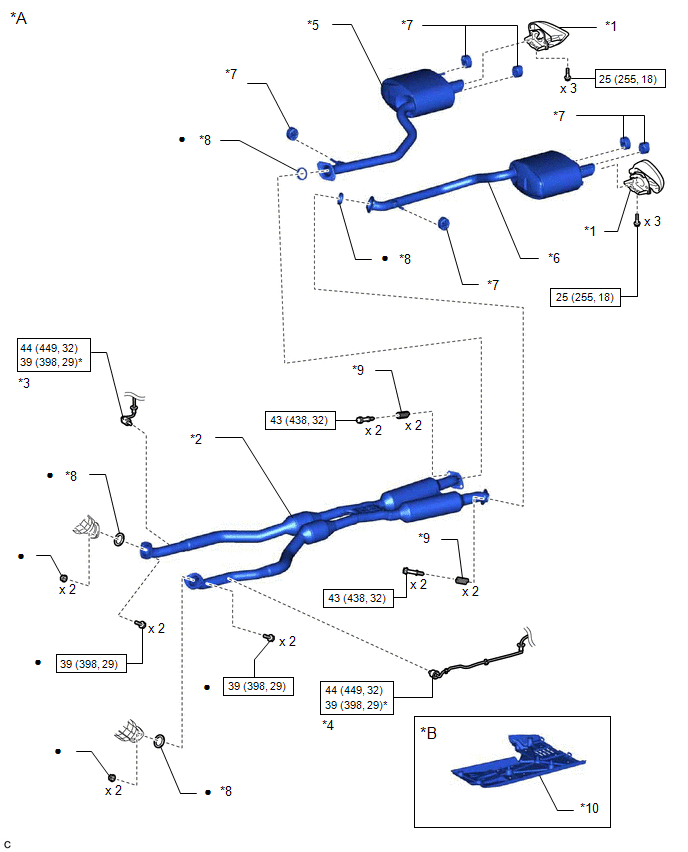

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications [09/2014 - 11/2017] (3 Of 3)

Callout	Description	Callout	Description
*A	for AWD	*B	w/ Front Floor Cover LH
*1	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*2	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3	HEATED OXYGEN SENSOR (for Bank 1)	*4	HEATED OXYGEN SENSOR (for Bank 2)
*5	TAIL EXHAUST PIPE ASSEMBLY	*6	TAIL EXHAUST PIPE LH
*7	EXHAUST PIPE SUPPORT	*8	EXHAUST PIPE GASKET
*9	COMPRESSION SPRING	*10	FRONT FLOOR COVER LH
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-
