Adjustment [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY
See step 8

ADJUST TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

HINT:

Use the same procedure for the tail exhaust pipe assembly side.

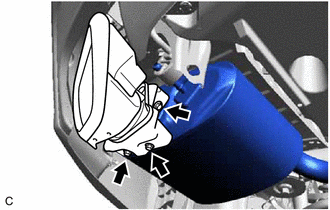

Loosen the 3 nuts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Loosen the nuts so that the tail exhaust pipe baffle sub-assembly can be adjusted by hand.

Temporarily install the tail exhaust pipe baffle sub-assembly to the tail exhaust pipe LH with the 3 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

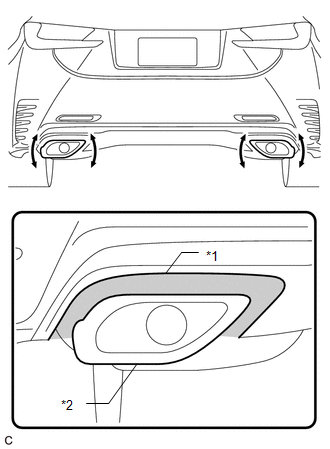

Adjust the angle of the tail exhaust pipe baffle sub-assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear Bumper Assembly
*2	Tail Exhaust Pipe Baffle Sub-assembly
	Clearance

HINT:

Make sure the clearance between the rear bumper assembly and tail exhaust pipe baffle sub-assembly is even.

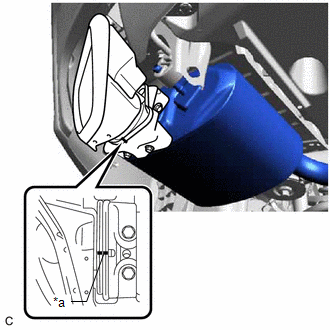

Place a paint mark across the contact surfaces of the tail exhaust pipe baffle sub-assembly as shown in the illustration.

*a	Paint Mark

Remove the 3 bolts and tail exhaust pipe baffle sub-assembly from the tail exhaust pipe LH.
Align the paint marks and tighten the 3 nuts.
Torque: 19 N.m (194 kgf/cm,

INSTALL TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY
See step 1
