Components [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

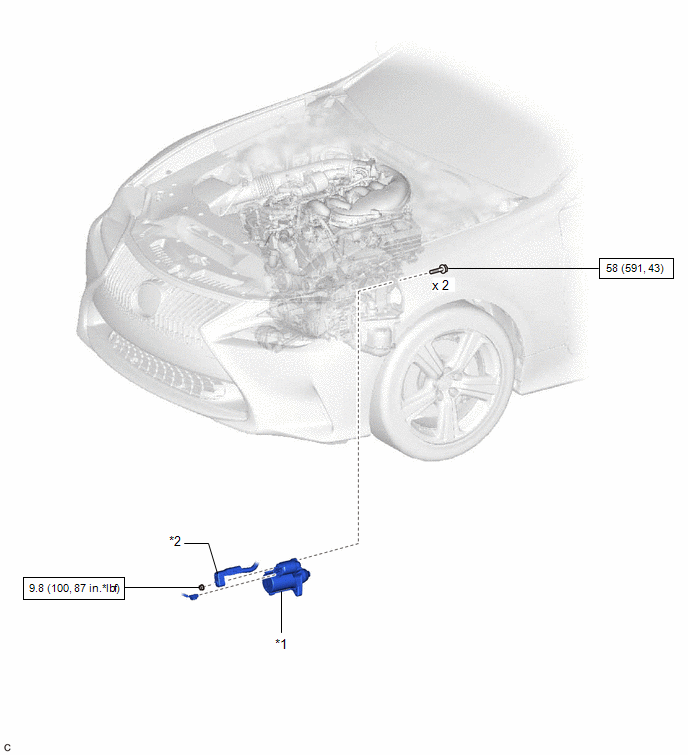

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
STARTER ASSEMBLY |
*2 |
TERMINAL CAP |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

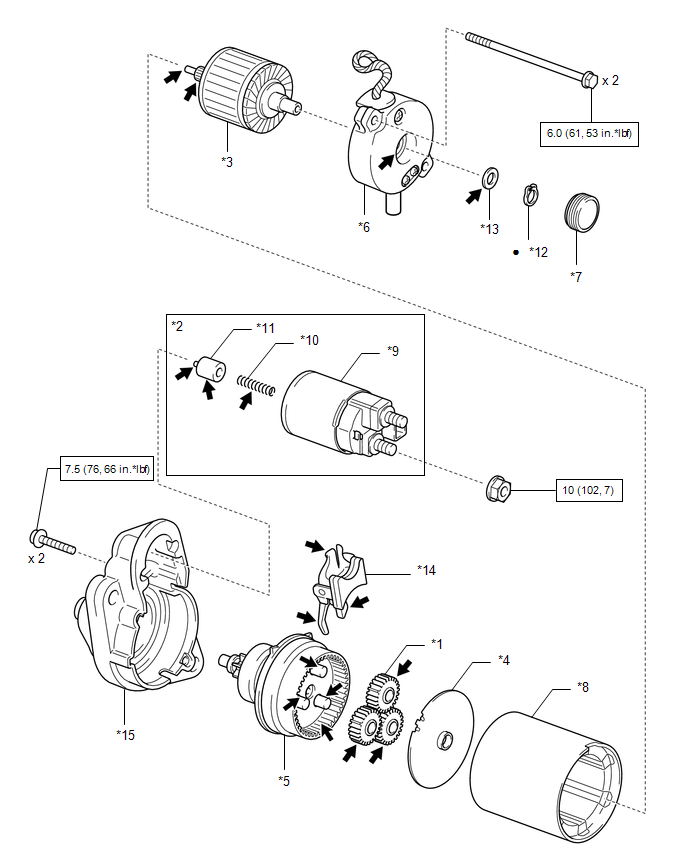

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
PLANETARY GEAR |
*2 |
REPAIR SERVICE STARTER KIT |
| *3 |
STARTER ARMATURE ASSEMBLY |
*4 |
STARTER ARMATURE PLATE |
| *5 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
*6 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
| *7 |
STARTER COMMUTATOR END FRAME COVER |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
MAGNET SWITCH |
*10 |
RETURN SPRING |
| *11 |
PLUNGER |
*12 |
SNAP RING |
| *13 |
WASHER |
*14 |
DRIVE LEVER SET PIN |
| *15 |
STARTER DRIVE HOUSING ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
High-temperature Grease |
- |
- |
