Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE ENGINE SWITCH

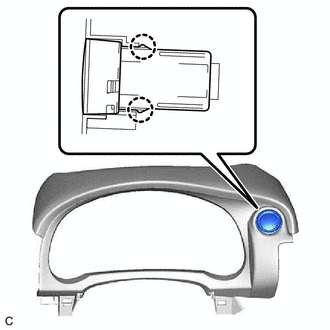

    1. Disengage the 2 claws and remove the engine switch.
      GTY463517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
