Components [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

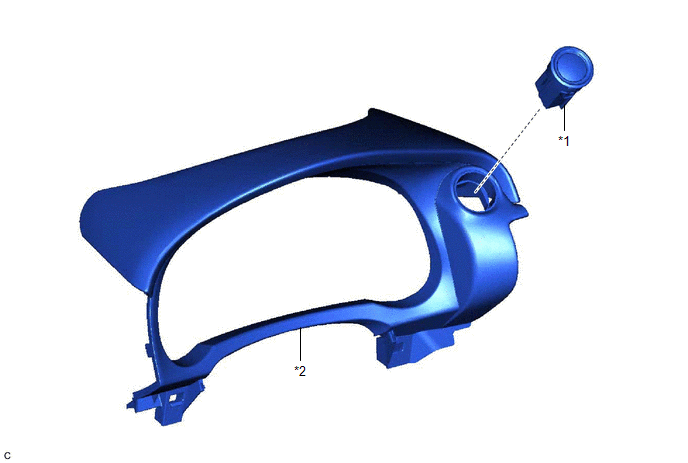

Fig 1: Engine Switch Replacement Components [09/2014 - 11/2017]
GTY467167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE SWITCH *2 METER HOOD SUB-ASSEMBLY
