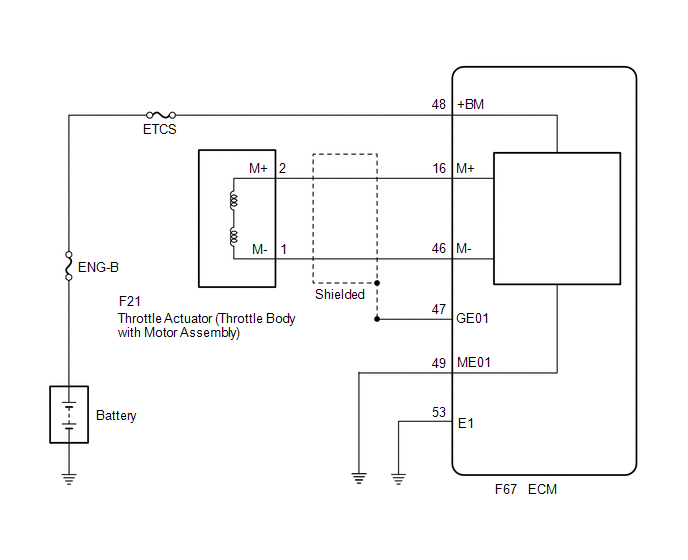

DTC P2100-18: Throttle Actuator "A" Control Motor Circuit Current Below Threshold; DTC P2100-19: Throttle Actuator "A" Control Motor Circuit Current Above Threshold [09/2020 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
