Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE VACUUM REGULATING VALVE ASSEMBLY
    1. Disconnect the vacuum regulating valve assembly connector.

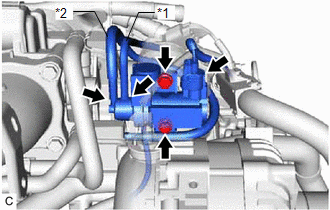

      GTY635069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vacuum Transmitting Hose Assembly
      *2 No. 3 Vacuum Transmitting Hose Assembly
    2. Disconnect the vacuum transmitting hose assembly and No. 3 vacuum transmitting hose assembly from the vacuum regulating valve assembly.
    3. Remove the 2 bolts and vacuum regulating valve assembly from the intake manifold.
