Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PURGE VALVE (PURGE VSV)

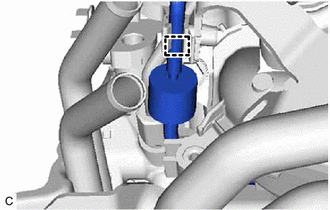

    1. Disengage the No. 2 vacuum transmitting hose assembly from the purge valve (purge VSV).
      GTY645591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

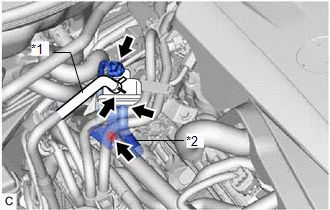

    2. Disconnect the purge valve (purge VSV) connector.
      GTY673884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 Fuel Vapor Feed Hose
    3. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    4. Disconnect the fuel vapor feed hose from the purge valve (purge VSV).
    5. Disengage the clamp from the purge valve (purge VSV).
    6. Remove the bolt and purge valve (purge VSV) from the intake manifold.

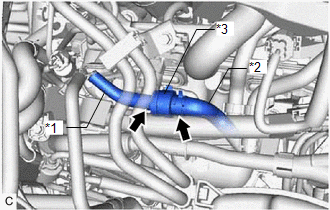

    7. Slide the clip and disconnect the No. 2 fuel vapor feed hose from the No. 1 check valve.
      GTY674516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose
      *3 No. 1 Check Valve
    8. Disconnect the fuel vapor feed hose from the No. 1 check valve.
    9. Remove the No. 1 check valve from the bracket.
