Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

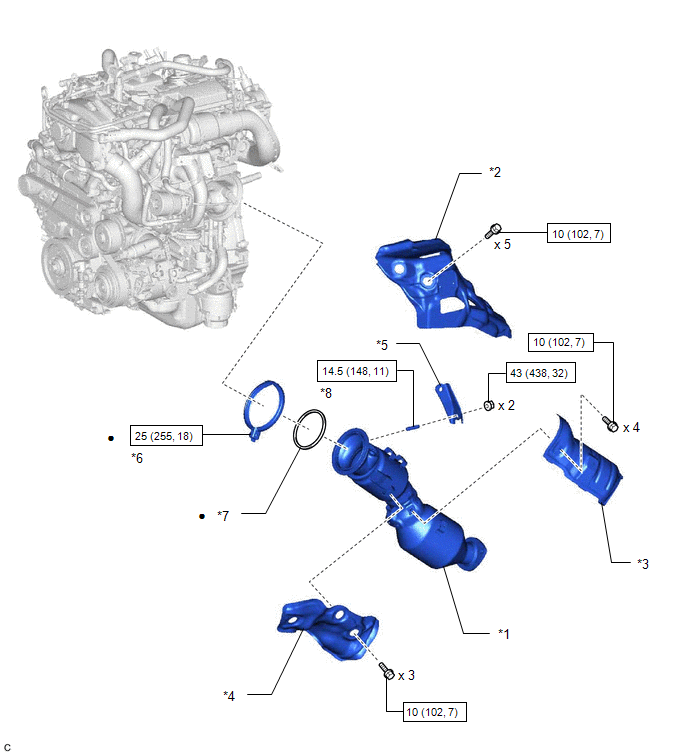

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front and Rear Catalyst) | *2 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *3 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR | *4 | NO. 4 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 | TURBOCHARGER STAY | *6 | EXHAUST PIPE CLAMP |
| *7 | OUTLET TURBINE ELBOW GASKET | *8 | STUD BOLT |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
