Components [10/2015 - 09/2020]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

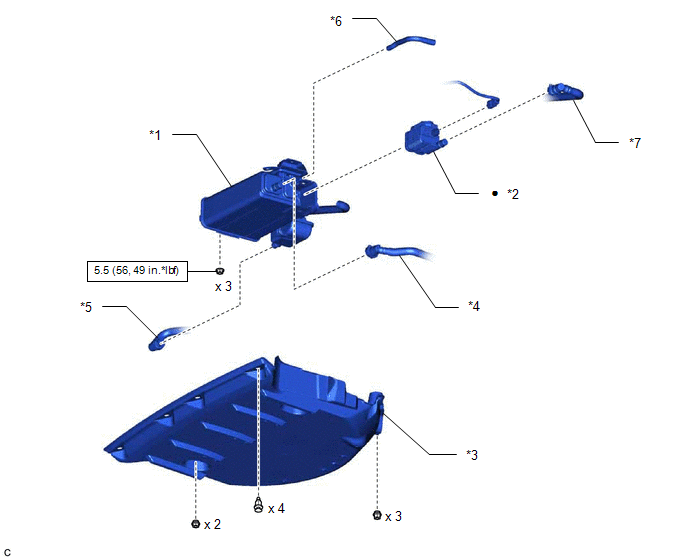

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 | NO. 1 FLOOR UNDER COVER ASSEMBLY | *4 | VENT LINE HOSE |
| *5 | AIR LINE TUBE | *6 | PURGE LINE HOSE |
| *7 | CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
