Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. DRAIN COOLANT (for Intercooler)

    See step  1

  3. REMOVE ELECTRIC WATER PUMP ASSEMBLY

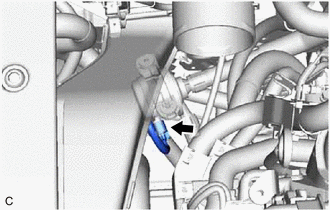

    1. Disconnect the electric water pump assembly connector.
      GTY639934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

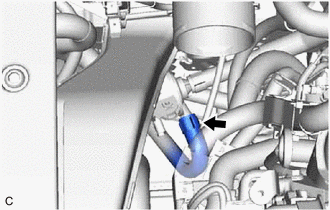

    2. Slide the clip and disconnect the No. 5 intercooler cooling water hose from the electric water pump assembly.
      GTY678546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

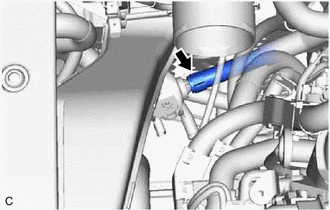

    3. Slide the clip and disconnect the No. 4 intercooler cooling water hose from the electric water pump assembly.
      GTY639936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

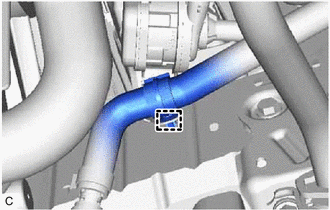

    4. Disengage the No. 2 intercooler cooling water hose clamp from the electric water pump bracket sub-assembly.
      GTY639935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

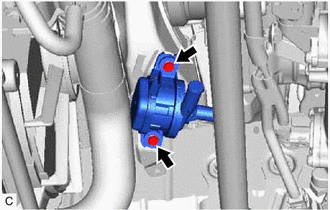

    5. Remove the 2 bolts and electric water pump assembly from the electric water pump bracket sub-assembly.
      GTY639951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
