Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

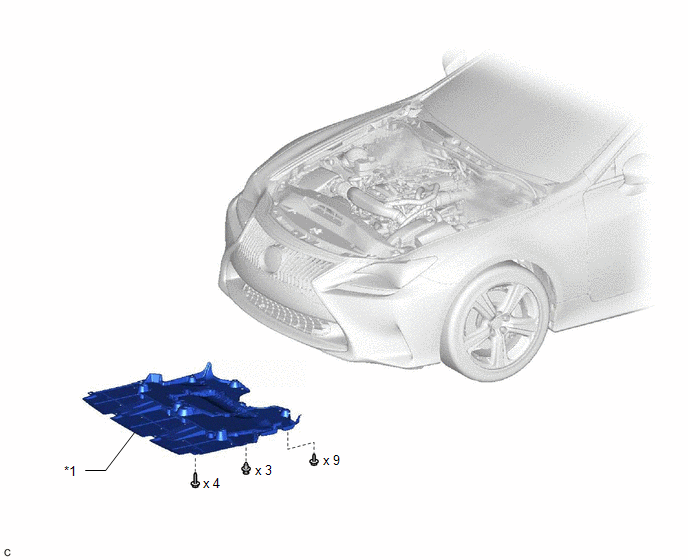

| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

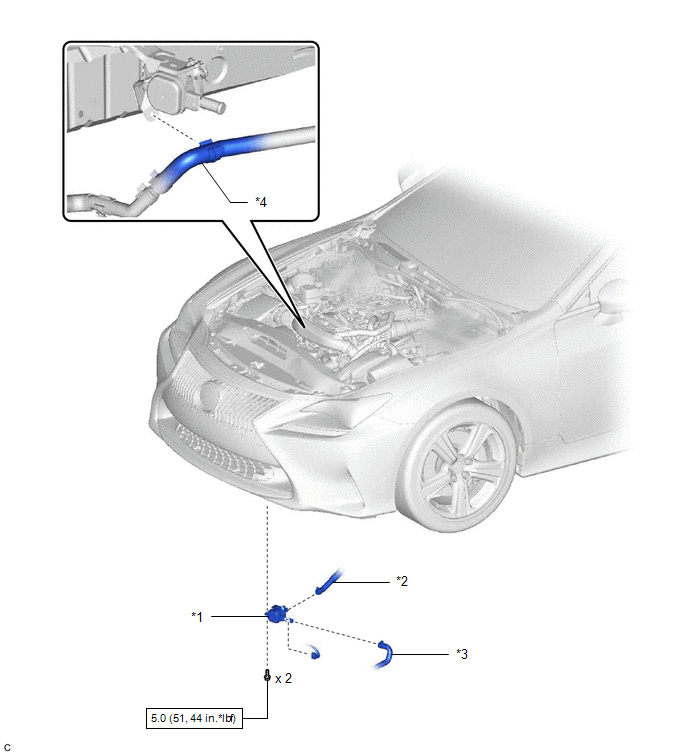

| *1 |
ELECTRIC WATER PUMP ASSEMBLY |
*2 |
NO. 4 INTERCOOLER COOLING WATER HOSE |
| *3 |
NO. 5 INTERCOOLER COOLING WATER HOSE |
*4 |
NO. 2 INTERCOOLER COOLING WATER HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
