Removal [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front and Rear Catalyst)
Refer to REMOVAL [10/2015 - ]

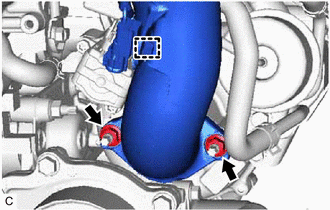

- REMOVE INLET COMPRESSOR ELBOW
- REMOVE WASTE GATE VALVE ACTUATOR WITH BRACKET ASSEMBLY NOTE:
After removal and installation of the waste gate valve actuator with bracket assembly, make sure to check the travel of the waste gate valve actuator.
See step 1

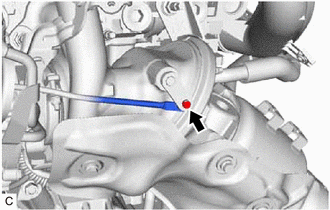

- Remove the E-washer from the waste gate valve actuator with bracket assembly link pin.NOTE:
Do not reuse the E-washer.

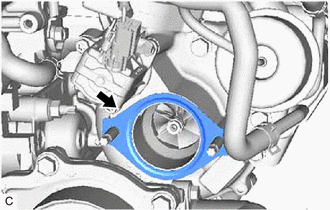

- Remove the 2 bolts and waste gate valve actuator with bracket assembly from the compressor housing with bearing sub-assembly.NOTE:
Do not drop or subject any component of the turbocharger sub-assembly to impact. If any component of the turbocharger sub-assembly is dropped or subjected to a strong impact, replace it with a new one.
HINT:
Adjustment washers may be installed between the waste gate valve actuator with bracket assembly and compressor housing with bearing sub-assembly.
- Remove the E-washer from the waste gate valve actuator with bracket assembly link pin.
