Reassembly [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PIN

    HINT:

    If the pin is deformed or damaged, replace it.

    1. Using a hammer, tap in a new pin to the position shown in the illustration.

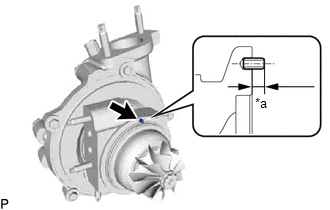

      GTY517668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Protrusion Amount

      Standard Protrusion Amount

      2.9 to 3.8 mm (0.114 to 0.150 in.)

  2. INSTALL STUD BOLT

    HINT:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E5 "TORX" socket wrench, install 4 new stud bolts.

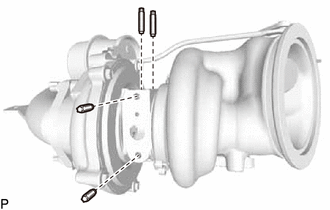

      GTY516465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Using an E8 "TORX" socket wrench, install 4 new stud bolts.

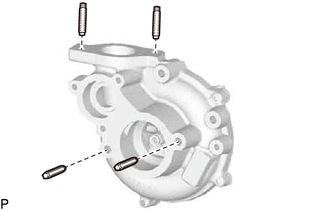

      GTY516472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. INSTALL COMPRESSOR HOUSING WITH BEARING SUB-ASSEMBLY
    NOTE:

    After removal and installation of the waste gate valve actuator with bracket assembly, make sure to check the travel of the waste gate valve actuator.

    See step  1

    1. Secure the flange of the turbine housing with valve sub-assembly of the turbocharger sub-assembly in a vise between aluminum plates.
      NOTE:

      Do not tighten the vise more than necessary, as doing so may damage the flange of the turbine housing with valve sub-assembly.

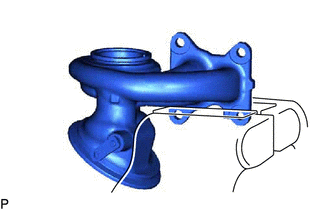

      GTY516479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the pin of the compressor housing with bearing sub-assembly with the pin hole of the turbine housing with valve sub-assembly, and set the compressor housing with bearing sub-assembly to the turbine housing with valve sub-assembly.
      NOTE:

      Be careful not to damage the turbine housing with the valve sub-assembly.

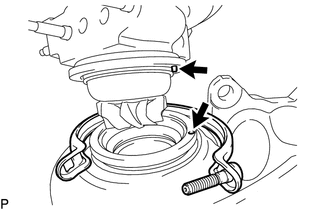

      GTY505752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Set a new V band so that the opening is positioned as shown in the illustration.
      NOTE:

      Do not reuse the V band.

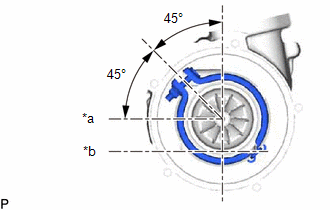

      GTY496337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turbo Water Pipe Installation Surface
      *b Inlet Turbo Oil Pipe Installation Surface
    4. Tighten the nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  4. INSTALL INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY)

    See step  1

  5. INSTALL WASTE GATE VALVE ACTUATOR WITH BRACKET ASSEMBLY
    NOTE:

    After removal and installation of the waste gate valve actuator with bracket assembly, make sure to check the travel of the waste gate valve actuator.

    See step  1

    1. Install the waste gate valve actuator with bracket assembly with the 2 bolts.

      Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

    2. Install a new E-washer to the waste gate valve actuator with bracket assembly link pin.
      NOTE:

      Do not reuse the E-washer.
