Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

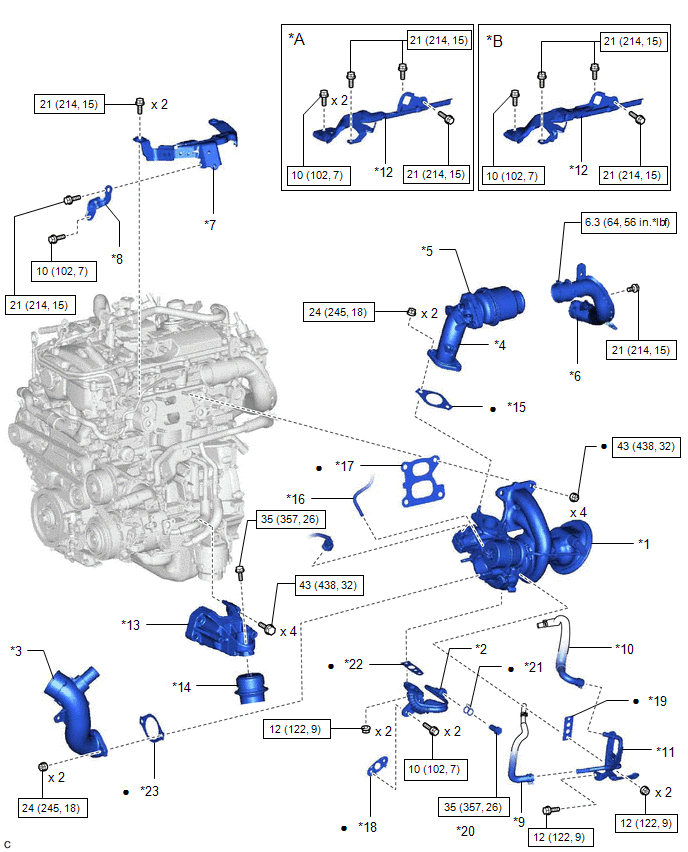

| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
TURBOCHARGER SUB-ASSEMBLY |
*2 |
INLET TURBO OIL PIPE SUB-ASSEMBLY |
| *3 |
INLET COMPRESSOR ELBOW |
*4 |
OUTLET COMPRESSOR ELBOW |
| *5 |
INTAKE AIR RESONATOR |
*6 |
NO. 1 AIR TUBE |
| *7 |
NO. 1 HEAT INSULATOR BRACKET |
*8 |
NO. 2 HEAT INSULATOR BRACKET |
| *9 |
NO. 3 TURBO WATER HOSE |
*10 |
NO. 4 TURBO WATER HOSE |
| *11 |
NO. 1 TURBO WATER PIPE SUB-ASSEMBLY |
*12 |
NO. 5 EXHAUST MANIFOLD HEAT INSULATOR |
| *13 |
FRONT ENGINE MOUNTING INSULATOR |
*14 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *15 |
OUTLET COMPRESSOR GASKET |
*16 |
VACUUM TRANSMITTING HOSE ASSEMBLY |
| *17 |
EXHAUST MANIFOLD TO HEAD GASKET |
*18 |
OUTLET NO. 1 TURBO OIL GASKET |
| *19 |
WATER BY-PASS GASKET |
*20 |
UNION BOLT |
| *21 |
NO. 1 UNION BOLT GASKET |
*22 |
INLET TURBO OIL GASKET |
| *23 |
INLET COMPRESSOR GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

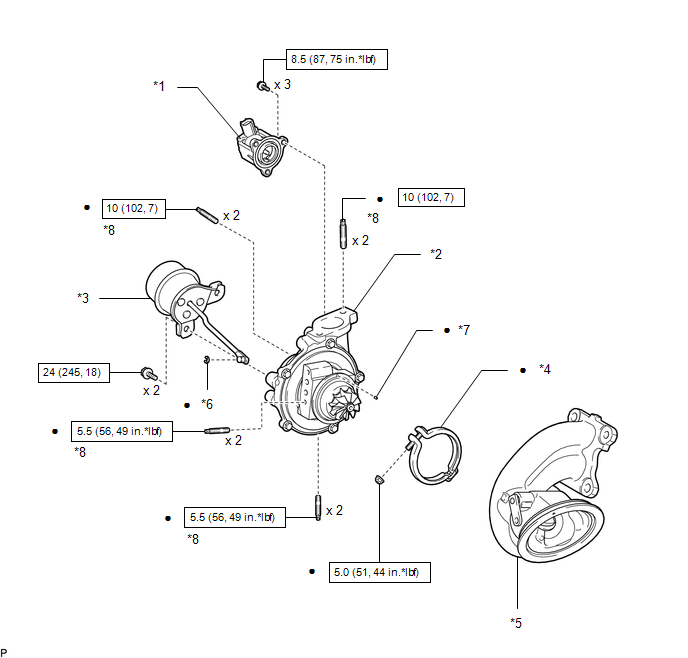

| Callout |
Description |
Callout |
Description |
| *1 |
INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY) |
*2 |
COMPRESSOR HOUSING WITH BEARING SUB-ASSEMBLY |
| *3 |
WASTE GATE VALVE ACTUATOR WITH BRACKET ASSEMBLY |
*4 |
V BAND |
| *5 |
TURBINE HOUSING WITH VALVE SUB-ASSEMBLY |
*6 |
E-WASHER |
| *7 |
PIN |
*8 |
STUD BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
