Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

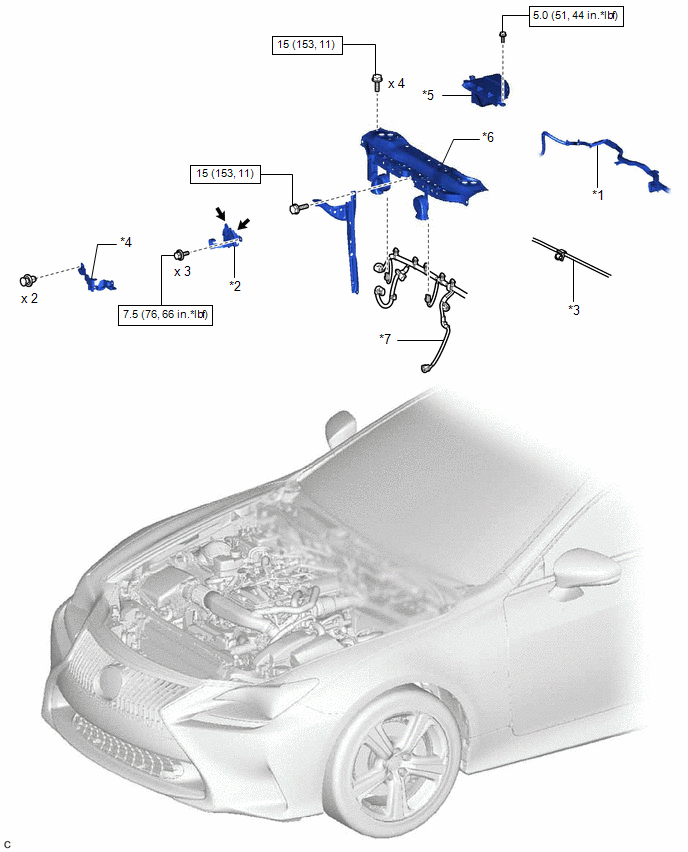

| *1 |
ENGINE ROOM MAIN WIRE |
*2 |
HOOD LOCK ASSEMBLY |
| *3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 |
INLET NO. 1 AIR CLEANER |
*6 |
UPPER RADIATOR SUPPORT |
| *7 |
WIRE HARNESS |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
MP grease |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

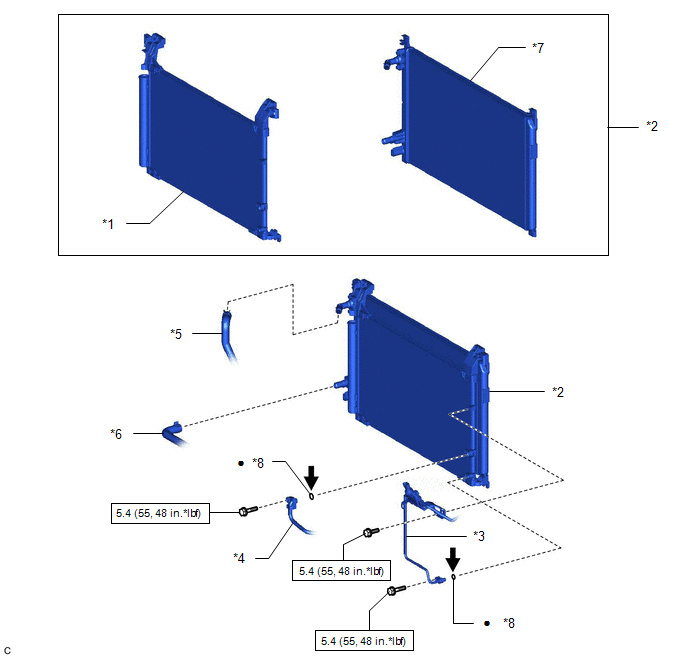

| *1 |
COOLER CONDENSER ASSEMBLY |
*2 |
COOLER CONDENSER ASSEMBLY WITH INTERCOOLER COOLING RADIATOR ASSEMBLY |
| *3 |
LIQUID TUBE SUB-ASSEMBLY A |
*4 |
NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *5 |
NO. 1 INTERCOOLER COOLING WATER HOSE |
*6 |
NO. 7 INTERCOOLER COOLING WATER HOSE |
| *7 |
INTERCOOLER COOLING RADIATOR ASSEMBLY |
*8 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Compressor oil ND-OIL 8 or equivalent |
- |
- |
