Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

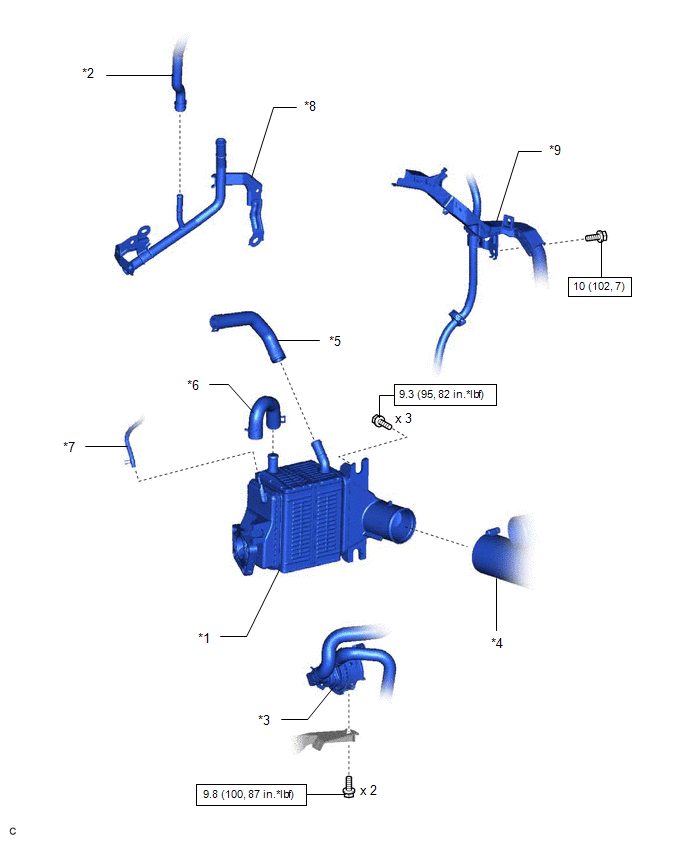

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
INTERCOOLER ASSEMBLY |
*2 |
NO. 2 TURBO WATER HOSE |
| *3 |
HEATER WATER PUMP ASSEMBLY |
*4 |
NO. 1 AIR TUBE |
| *5 |
NO. 8 WATER BY-PASS HOSE |
*6 |
NO. 9 WATER BY-PASS HOSE |
| *7 |
NO. 1 VACUUM TRANSMITTING HOSE |
*8 |
WATER BY-PASS PIPE |
| *9 |
ENGINE WIRE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

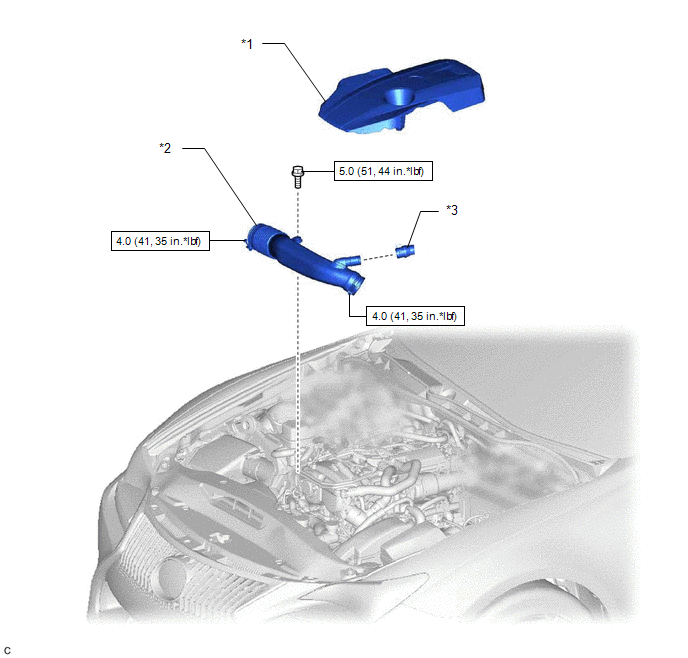

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
AIR CLEANER HOSE ASSEMBLY |
| *3 |
NO. 1 VENTILATION HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

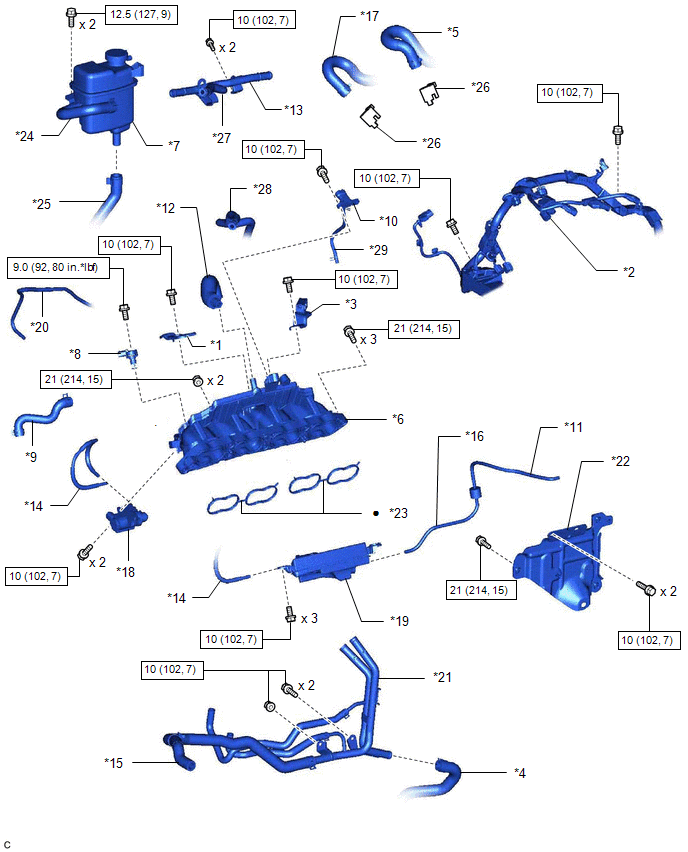

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BRACKET |
*2 |
ENGINE WIRE |
| *3 |
FUEL HOSE BRACKET |
*4 |
INLET HEATER WATER HOSE B |
| *5 |
INLET HEATER WATER HOSE A |
*6 |
INTAKE MANIFOLD |
| *7 |
INTERCOOLER RESERVE TANK ASSEMBLY |
*8 |
NO. 1 TURBO PRESSURE SENSOR |
| *9 |
NO. 2 FUEL VAPOR FEED HOSE |
*10 |
NO. 2 TURBO PRESSURE SENSOR |
| *11 |
NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY |
*12 |
NO. 2 VENTILATION HOSE |
| *13 |
NO. 2 WATER BY-PASS PIPE |
*14 |
NO. 3 VACUUM TRANSMITTING HOSE ASSEMBLY |
| *15 |
NO. 3 WATER BY-PASS HOSE |
*16 |
NO. 4 VACUUM TRANSMITTING HOSE ASSEMBLY |
| *17 |
OUTLET HEATER WATER HOSE A |
*18 |
VACUUM REGULATING VALVE ASSEMBLY |
| *19 |
VACUUM SURGE TANK |
*20 |
VACUUM TRANSMITTING HOSE ASSEMBLY |
| *21 |
NO. 5 WATER BY-PASS PIPE |
*22 |
INTERCOOLER SUPPORT BRACKET SUB-ASSEMBLY |
| *23 |
INTAKE MANIFOLD GASKET |
*24 |
NO. 3 INTERCOOLER COOLING WATER HOSE |
| *25 |
NO. 4 INTERCOOLER COOLING WATER HOSE |
*26 |
WATER HOSE SET |
| *27 |
NO. 1 TURBO WATER HOSE |
*28 |
NO. 2 TURBO WATER HOSE |
| *29 |
NO. 1 VACUUM TRANSMITTING HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
