Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. DISCONNECT NO. 2 TURBO WATER HOSE

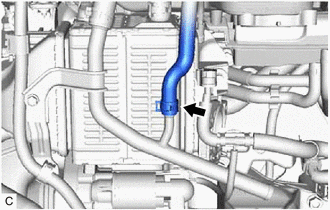

    1. Slide the clip and disconnect the No. 2 turbo water hose from the water by-pass pipe.
      GTY619482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT NO. 1 VACUUM TRANSMITTING HOSE

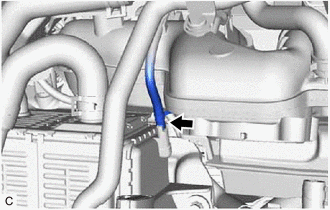

    1. Slide the clip and disconnect the No. 1 vacuum transmitting hose from the intercooler assembly.
      GTY619494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 8 WATER BY-PASS HOSE

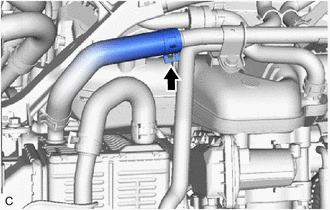

    1. Slide the clip and disconnect the No. 8 water by-pass hose from the No. 2 water by-pass pipe.
      GTY620433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT NO. 9 WATER BY-PASS HOSE

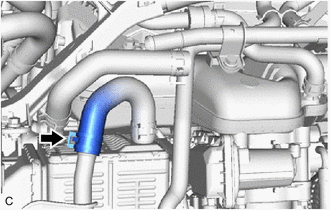

    1. Slide the clip and disconnect the No. 9 water by-pass hose from the water by-pass pipe.
      GTY620434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE HEATER WATER PUMP ASSEMBLY

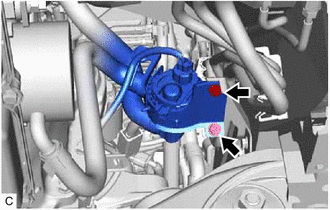

    1. Remove the 2 bolts and separate the heater water pump assembly from the heater water pump bracket.
      GTY619480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

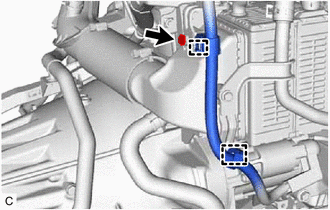

  7. DISCONNECT ENGINE WIRE
    1. Disengage the 2 clamps.
      GTY619496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to disconnect the engine wire.

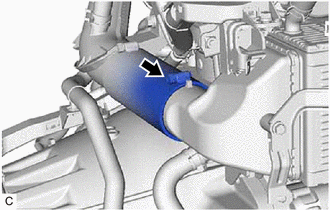

  8. DISCONNECT NO. 1 AIR TUBE
    1. Loosen the hose clamp and disconnect the No. 1 air tube from the intercooler assembly.
      GTY619489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT INTERCOOLER ASSEMBLY

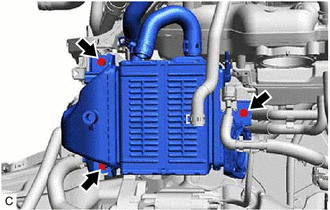

    1. Remove the 3 bolts and disconnect the intercooler assembly from the intercooler support bracket sub-assembly.
      GTY674026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE PURGE VALVE (PURGE VSV)

    Refer to REMOVAL [10/2015 - ]

  11. REMOVE INTERCOOLER RESERVE TANK ASSEMBLY

    See step  11

  12. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE AIR CLEANER HOSE ASSEMBLY

    See step  4

  14. REMOVE FUEL HOSE BRACKET

    See step  14

  15. REMOVE NO. 2 VENTILATION HOSE

    See step  15

  16. REMOVE NO. 2 WATER BY-PASS PIPE

    See step  16

  17. DISCONNECT INLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 30

  18. DISCONNECT OUTLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 31

  19. DISCONNECT ENGINE WIRE

    See step  19

  20. DISCONNECT NO. 3 WATER BY-PASS HOSE

    See step  20

  21. DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY

    See step  21

  22. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY

    See step  22

  23. DISCONNECT INLET HEATER WATER HOSE B

    See step  23

  24. REMOVE INTAKE MANIFOLD
    1. Remove the 4 bolts, 2 nuts and intake manifold from the cylinder head sub-assembly.
      GTY655484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    2. Remove the 2 intake manifold gaskets from the intake manifold.
  25. REMOVE INTERCOOLER ASSEMBLY
    1. Remove the intercooler assembly from the engine assembly.
  26. REMOVE NO. 8 WATER BY-PASS HOSE

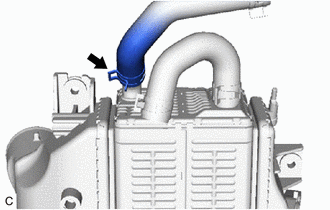

    1. Slide the clip and remove the No. 8 water by-pass hose from the intercooler assembly.
      GTY619510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE NO. 9 WATER BY-PASS HOSE

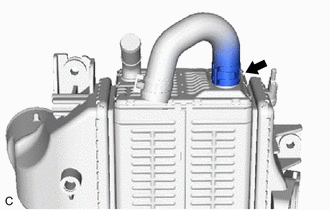

    1. Slide the clip and remove the No. 9 water by-pass hose from the intercooler assembly.
      GTY619516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
