Components [10/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

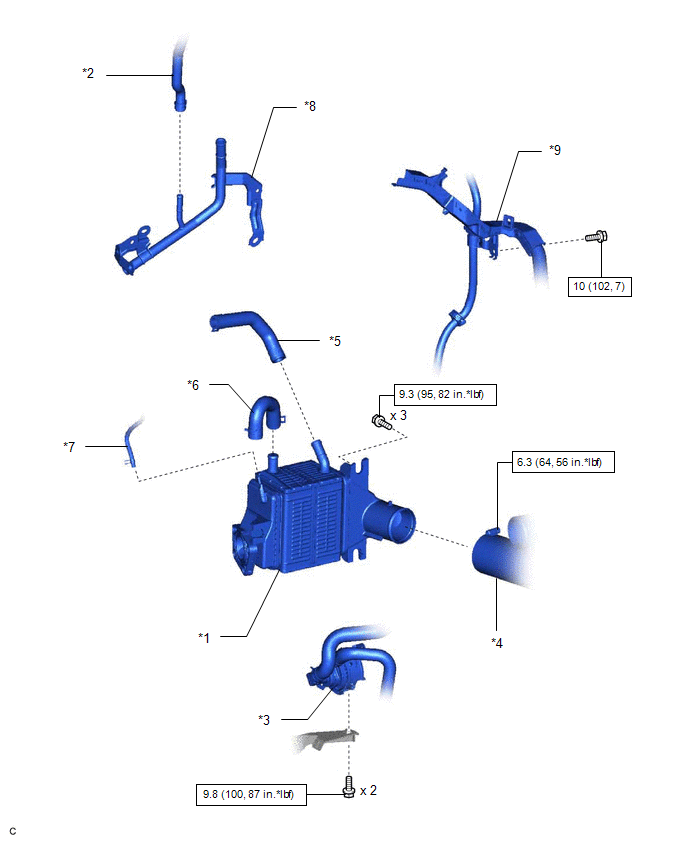

| Callout |
Description |
Callout |
Description |
| *1 |
INTERCOOLER ASSEMBLY |
*2 |
NO. 2 TURBO WATER HOSE |
| *3 |
HEATER WATER PUMP ASSEMBLY |
*4 |
NO. 1 AIR TUBE |
| *5 |
NO. 8 WATER BY-PASS HOSE |
*6 |
NO. 9 WATER BY-PASS HOSE |
| *7 |
NO. 1 VACUUM TRANSMITTING HOSE |
*8 |
WATER BY-PASS PIPE |
| *9 |
ENGINE WIRE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
AIR CLEANER HOSE ASSEMBLY |
| *3 |
NO. 1 VENTILATION HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

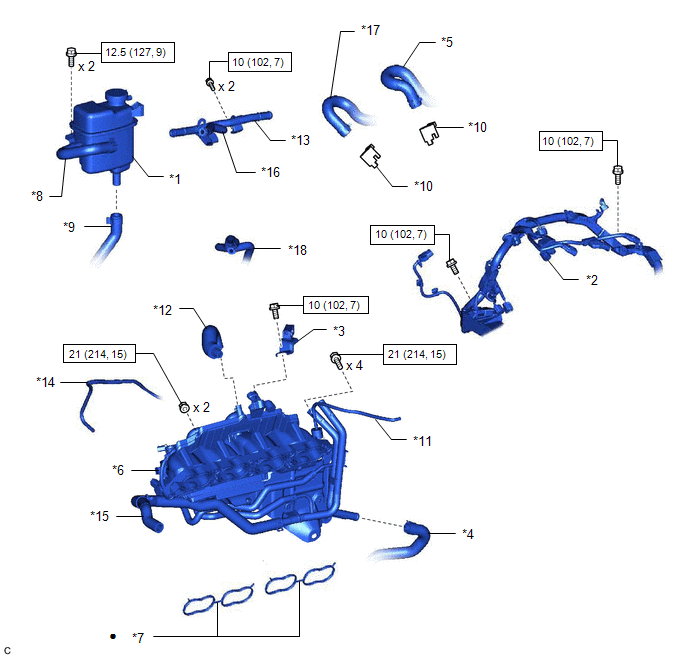

| Callout |
Description |
Callout |
Description |
| *1 |
INTERCOOLER RESERVE TANK ASSEMBLY |
*2 |
ENGINE WIRE |
| *3 |
FUEL HOSE BRACKET |
*4 |
INLET HEATER WATER HOSE B |
| *5 |
INLET HEATER WATER HOSE A |
*6 |
INTAKE MANIFOLD |
| *7 |
INTAKE MANIFOLD GASKET |
*8 |
NO. 3 INTERCOOLER COOLING WATER HOSE |
| *9 |
NO. 4 INTERCOOLER COOLING WATER HOSE |
*10 |
WATER HOSE SET |
| *11 |
NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY |
*12 |
NO. 2 VENTILATION HOSE |
| *13 |
NO. 2 WATER BY-PASS PIPE |
*14 |
VACUUM TRANSMITTING HOSE ASSEMBLY |
| *15 |
NO. 3 WATER BY-PASS HOSE |
*16 |
NO. 1 TURBO WATER HOSE |
| *17 |
OUTLET HEATER WATER HOSE A |
*18 |
NO. 2 TURBO WATER HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
