Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT CENTER FLOOR COVER LH (for Full Cover Type)

    Refer to PROCEDURE - Step 2 [10/2015 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  2. REMOVE FRONT CENTER FLOOR COVER RH (for Full Cover Type)

    Refer to PROCEDURE - Step 3 [10/2015 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  3. REMOVE FRONT CENTER FLOOR BRACE

    Refer to PROCEDURE - Step 6 [10/2015 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - ]

  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

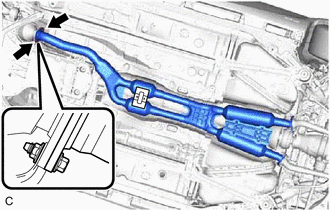

    1. Remove the 2 bolts and 2 nuts to disconnect the front exhaust pipe assembly from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
      GTY639947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

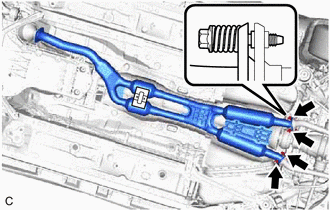

    2. Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly from the tail exhaust pipe assembly and tail exhaust pipe LH.
      GTY678549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 exhaust pipe gaskets from the front exhaust pipe assembly and exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
  5. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the tail exhaust pipe assembly from the 3 exhaust pipe supports.
      GTY500850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

  6. REMOVE TAIL EXHAUST PIPE LH
    1. Remove the tail exhaust pipe LH from the 3 exhaust pipe supports.
      GTY500843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

  7. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY
    1. Remove the 3 bolts and tail exhaust pipe baffle sub-assembly from the tail exhaust pipe assembly.
      GTY500842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and tail exhaust pipe baffle sub-assembly from the tail exhaust pipe LH.
      GTY516794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
